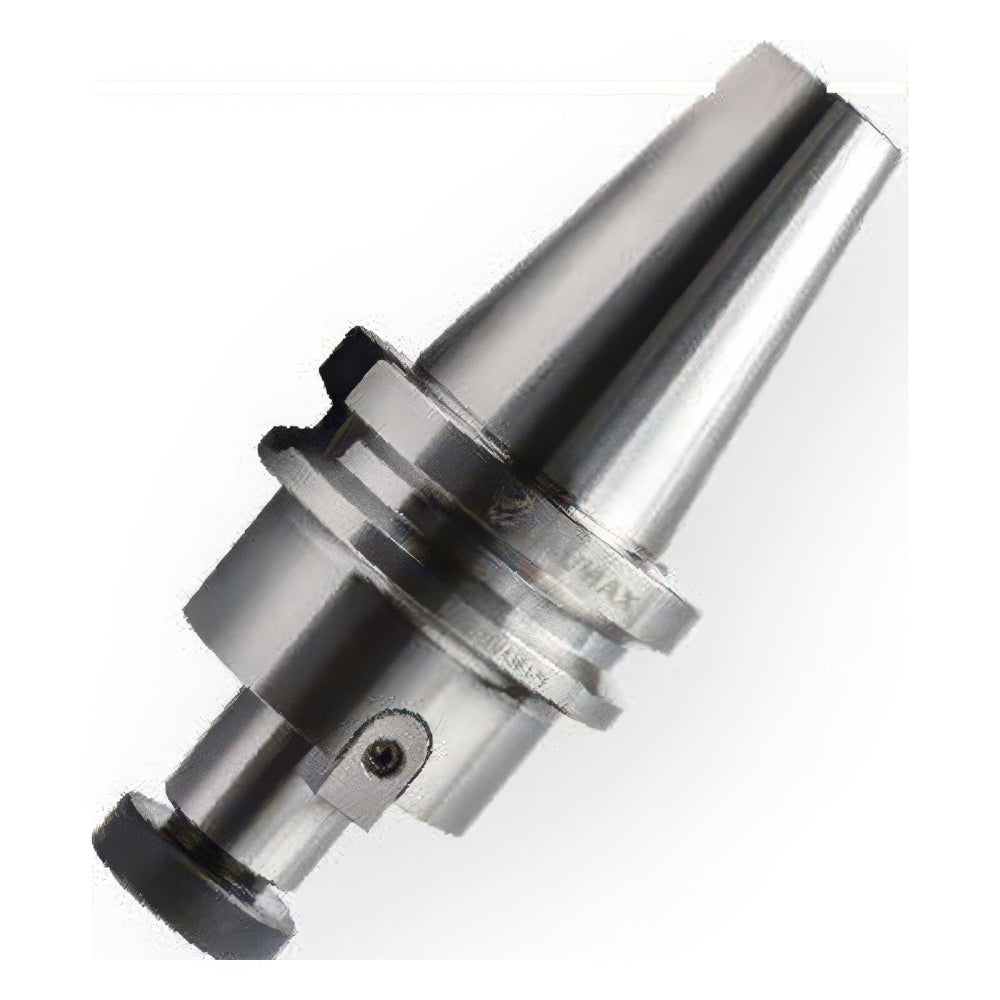

TAUMAX BT-TFMA Face Mill Arbor (Inch Bore)

BT-shank face mill arbor for inch-bore face mills (25.4, 31.75 and 38.1 mm pilots).

Key features

MAS 403 BT30/BT40/BT50 shanks
Inch pilot diameters 25.4 / 31.75 / 38.1 mm
Drive keys and mounting bolts available as spare parts
Internal coolant optional

Specifications

Shank	MAS 403 BT
Coolant	Internal coolant optional
Unit	mm

BT30-TFMA25.4-45		Shank: BT30 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 45 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 1.2 kg
BT40-TFMA25.4-45		Shank: BT40 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 45 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 1.4 kg
BT40-TFMA25.4-90		Shank: BT40 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 90 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 3.1 kg
BT40-TFMA31.75-45		Shank: BT40 \| Pilot dia. (D): 31.75 mm \| Gauge length (L): 45 mm \| Flange dia. (D1): 60 mm \| Key width (K): 12.7 mm \| Clamp thread (G): M16 \| Package weight: 1.6 kg
BT50-TFMA25.4-90		Shank: BT50 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 90 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 4.5 kg
BT50-TFMA25.4-150		Shank: BT50 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 150 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 5.5 kg
BT50-TFMA31.75-105		Shank: BT50 \| Pilot dia. (D): 31.75 mm \| Gauge length (L): 105 mm \| Flange dia. (D1): 98 mm \| Key width (K): 12.7 mm \| Clamp thread (G): M16 \| Package weight: 6 kg
BT50-TFMA38.1-75		Shank: BT50 \| Pilot dia. (D): 38.1 mm \| Gauge length (L): 75 mm \| Flange dia. (D1): 50 mm \| Key width (K): 15.9 mm \| Clamp thread (G): M20 \| Package weight: 5.5 kg

Face Mill ArborsTAUMAX

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT-TFMA Face Mill Arbor (Inch Bore)

Brand TAUMAX·Face Mill Arbors

Available part numbers (8)

BT30-TFMA25.4-45, BT40-TFMA25.4-45, BT40-TFMA25.4-90, BT40-TFMA31.75-45, BT50-TFMA25.4-90, BT50-TFMA25.4-150, BT50-TFMA31.75-105, BT50-TFMA38.1-75

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	BT30-TFMA25.4-45	Shank: BT30 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 45 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 1.2 kg
	BT40-TFMA25.4-45	Shank: BT40 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 45 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 1.4 kg
	BT40-TFMA25.4-90	Shank: BT40 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 90 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 3.1 kg
	BT40-TFMA31.75-45	Shank: BT40 \| Pilot dia. (D): 31.75 mm \| Gauge length (L): 45 mm \| Flange dia. (D1): 60 mm \| Key width (K): 12.7 mm \| Clamp thread (G): M16 \| Package weight: 1.6 kg
	BT50-TFMA25.4-90	Shank: BT50 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 90 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 4.5 kg
	BT50-TFMA25.4-150	Shank: BT50 \| Pilot dia. (D): 25.4 mm \| Gauge length (L): 150 mm \| Flange dia. (D1): 50 mm \| Key width (K): 9.5 mm \| Clamp thread (G): M12 \| Package weight: 5.5 kg
	BT50-TFMA31.75-105	Shank: BT50 \| Pilot dia. (D): 31.75 mm \| Gauge length (L): 105 mm \| Flange dia. (D1): 98 mm \| Key width (K): 12.7 mm \| Clamp thread (G): M16 \| Package weight: 6 kg
	BT50-TFMA38.1-75	Shank: BT50 \| Pilot dia. (D): 38.1 mm \| Gauge length (L): 75 mm \| Flange dia. (D1): 50 mm \| Key width (K): 15.9 mm \| Clamp thread (G): M20 \| Package weight: 5.5 kg
