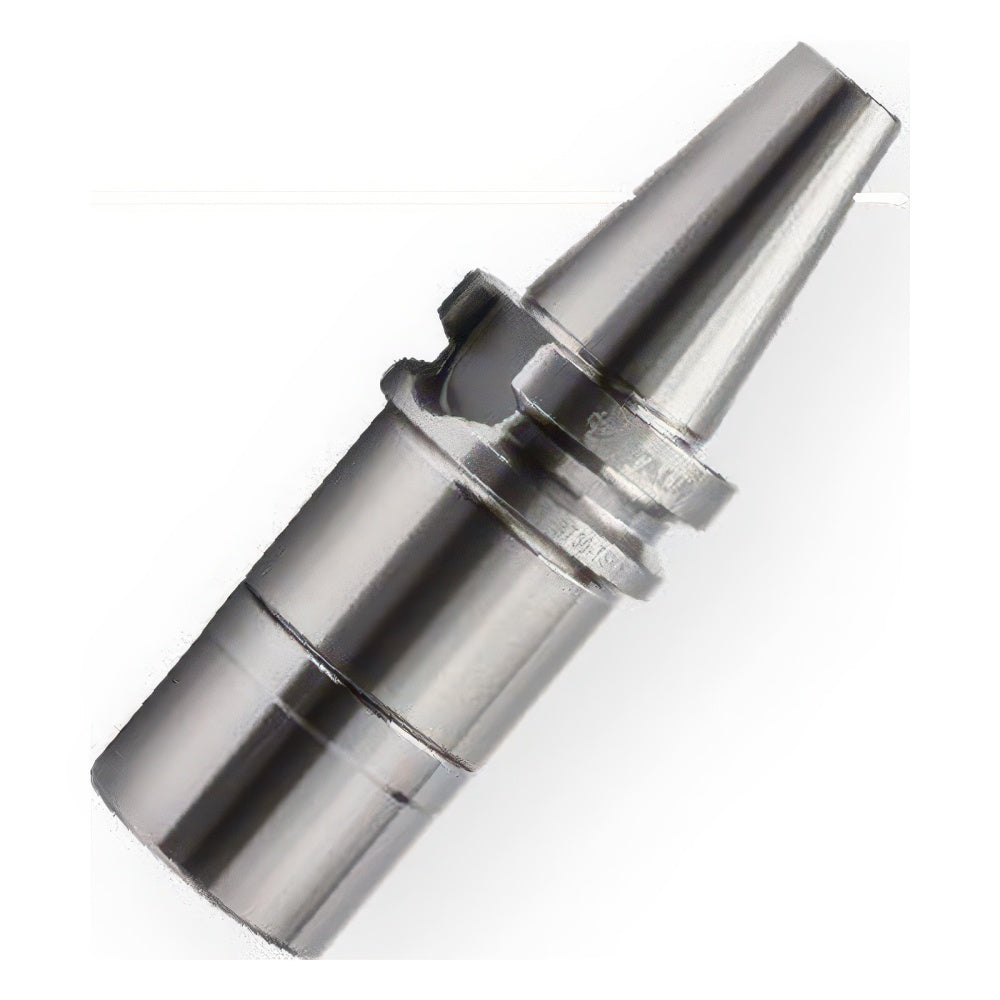

TAUMAX BT-TSK High Speed Slim Collet Chuck

TAUMAX BT-TSK High Speed Slim Collet Chuck

Slim high-speed BT collet chuck balanced to G2.5 at 25,000 rpm for milling and drilling.

Key features

  • Balanced G2.5 at 25,000 rpm
  • Slim nose for reduced interference
  • Uses HC10 / HC16 collets
  • Internal coolant optional
  • Spanner compatible with DINOX GSK

Specifications

Shank MAS 403 BT
Balance G2.5 @ 25,000 rpm
Coolant Internal coolant optional
Unit mm
Adjust screw thread M11
BT30-TSK10-60 Shank: BT30 | Clamping range: 2.0-10.0 mm | Gauge length (L): 60 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 0.9 kg
BT30-TSK10-90 Shank: BT30 | Clamping range: 2.0-10.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 1 kg
BT30-TSK10-120 Shank: BT30 | Clamping range: 2.0-10.0 mm | Gauge length (L): 120 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 1.3 kg
BT30-TSK16-60 Shank: BT30 | Clamping range: 3.0-16.0 mm | Gauge length (L): 60 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.2 kg
BT30-TSK16-90 Shank: BT30 | Clamping range: 3.0-16.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.4 kg
BT30-TSK16-120 Shank: BT30 | Clamping range: 3.0-16.0 mm | Gauge length (L): 120 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.5 kg
BT40-TSK10-90 Shank: BT40 | Clamping range: 2.0-10.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 1.2 kg
BT40-TSK16-90 Shank: BT40 | Clamping range: 3.0-16.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.5 kg
Collet ChucksTAUMAX
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT-TSK High Speed Slim Collet Chuck

Brand TAUMAX·Collet Chucks

Available part numbers (8)

BT30-TSK10-60, BT30-TSK10-90, BT30-TSK10-120, BT30-TSK16-60, BT30-TSK16-90, BT30-TSK16-120, BT40-TSK10-90, BT40-TSK16-90

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-TSK10-60Shank: BT30 | Clamping range: 2.0-10.0 mm | Gauge length (L): 60 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 0.9 kg
BT30-TSK10-90Shank: BT30 | Clamping range: 2.0-10.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 1 kg
BT30-TSK10-120Shank: BT30 | Clamping range: 2.0-10.0 mm | Gauge length (L): 120 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 1.3 kg
BT30-TSK16-60Shank: BT30 | Clamping range: 3.0-16.0 mm | Gauge length (L): 60 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.2 kg
BT30-TSK16-90Shank: BT30 | Clamping range: 3.0-16.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.4 kg
BT30-TSK16-120Shank: BT30 | Clamping range: 3.0-16.0 mm | Gauge length (L): 120 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.5 kg
BT40-TSK10-90Shank: BT40 | Clamping range: 2.0-10.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 27.5 mm | Adjust screw thread: M11 | Collet: HC10 | Package weight: 1.2 kg
BT40-TSK16-90Shank: BT40 | Clamping range: 3.0-16.0 mm | Gauge length (L): 90 mm | Nose dia. (D1): 40 mm | Adjust screw thread: M11 | Collet: HC16 | Package weight: 1.5 kg
