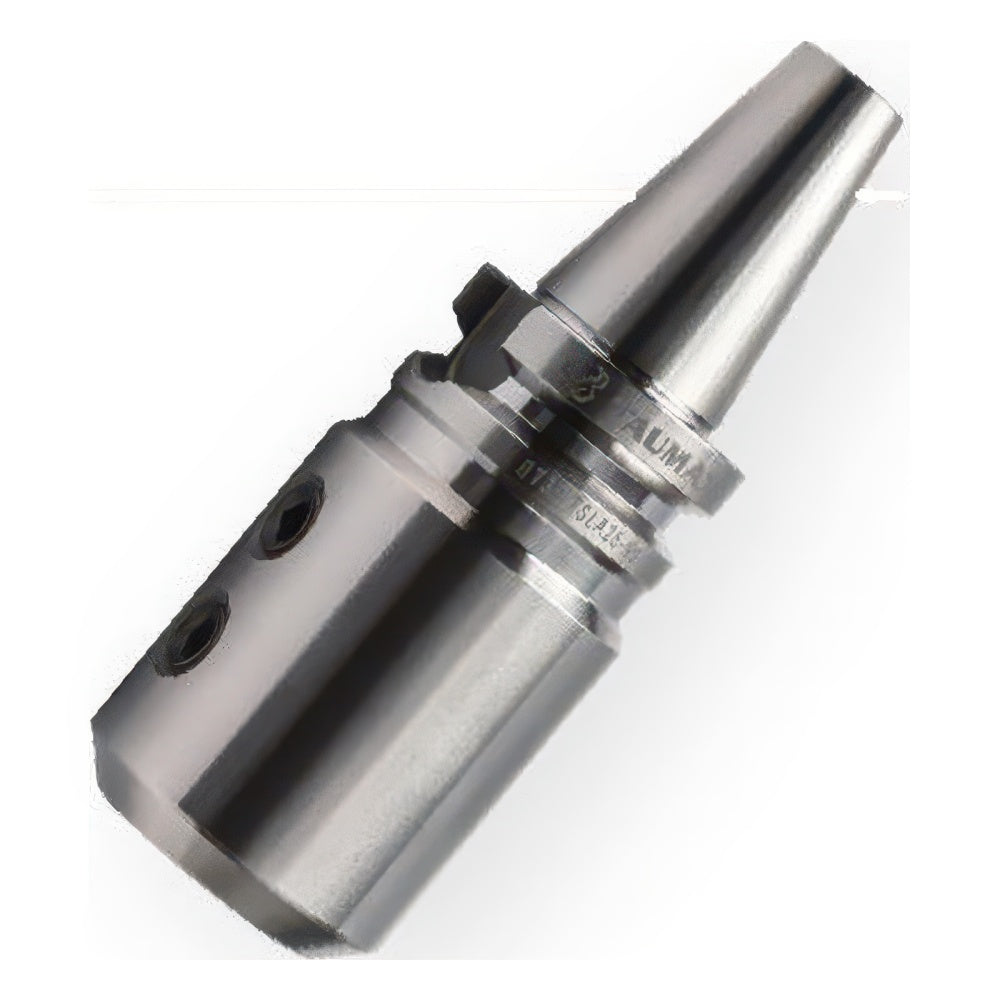

TAUMAX BT-TSLA Side Lock Arbor

BT-shank side lock arbor for clamping Weldon-flat end mills and drills.

Key features

MAS 403 BT30/BT40/BT50 shanks
Side set-screw clamping for flatted shanks
Bores 16 to 42 mm
Internal coolant optional

Specifications

Shank	MAS 403 BT
Coolant	Internal coolant optional
Unit	mm

BT30-TSLA20-90		Shank: BT30 \| Bore dia. (D): 20 mm \| Gauge length (L): 90 mm \| Body dia. (D1): 50 mm \| Set screw: M12 \| Package weight: 1.3 kg
BT30-TSLA25-90		Shank: BT30 \| Bore dia. (D): 25 mm \| Gauge length (L): 90 mm \| Body dia. (D1): 50 mm \| Set screw: M12 \| Package weight: 1.8 kg
BT40-TSLA16-100		Shank: BT40 \| Bore dia. (D): 16 mm \| Gauge length (L): 100 mm \| Body dia. (D1): 40 mm \| Set screw: M10 \| Package weight: 1.8 kg
BT40-TSLA20-100		Shank: BT40 \| Bore dia. (D): 20 mm \| Gauge length (L): 100 mm \| Body dia. (D1): 50 mm \| Set screw: M12 \| Package weight: 2.2 kg
BT40-TSLA25-90		Shank: BT40 \| Bore dia. (D): 25 mm \| Gauge length (L): 90 mm \| Body dia. (D1): 50 mm \| Set screw: M12 \| Package weight: 2.6 kg
BT40-TSLA32-100		Shank: BT40 \| Bore dia. (D): 32 mm \| Gauge length (L): 100 mm \| Body dia. (D1): 60 mm \| Set screw: M16 \| Package weight: 3.8 kg
BT40-TSLA40-105		Shank: BT40 \| Bore dia. (D): 40 mm \| Gauge length (L): 105 mm \| Body dia. (D1): 70 mm \| Set screw: M16 \| Package weight: 3.1 kg
BT50-TSLA16-100		Shank: BT50 \| Bore dia. (D): 16 mm \| Gauge length (L): 100 mm \| Body dia. (D1): 40 mm \| Set screw: M10 \| Package weight: 3.8 kg
BT50-TSLA20-100		Shank: BT50 \| Bore dia. (D): 20 mm \| Gauge length (L): 100 mm \| Body dia. (D1): 50 mm \| Set screw: M12 \| Package weight: 4 kg
BT50-TSLA25-100		Shank: BT50 \| Bore dia. (D): 25 mm \| Gauge length (L): 100 mm \| Body dia. (D1): 50 mm \| Set screw: M12 \| Package weight: 4.8 kg
BT50-TSLA32-105		Shank: BT50 \| Bore dia. (D): 32 mm \| Gauge length (L): 105 mm \| Body dia. (D1): 60 mm \| Set screw: M16 \| Package weight: 5.1 kg
BT50-TSLA40-120		Shank: BT50 \| Bore dia. (D): 40 mm \| Gauge length (L): 120 mm \| Body dia. (D1): 90 mm \| Set screw: M16 \| Package weight: 6.1 kg
BT50-TSLA42-120		Shank: BT50 \| Bore dia. (D): 42 mm \| Gauge length (L): 120 mm \| Body dia. (D1): 90 mm \| Set screw: M20 \| Package weight: 5.8 kg

Side Lock HoldersTAUMAX

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT-TSLA Side Lock Arbor

Brand TAUMAX·Side Lock Holders

Available part numbers (13)

BT30-TSLA20-90, BT30-TSLA25-90, BT40-TSLA16-100, BT40-TSLA20-100, BT40-TSLA25-90, BT40-TSLA32-100, BT40-TSLA40-105, BT50-TSLA16-100, BT50-TSLA20-100, BT50-TSLA25-100 + 3 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
