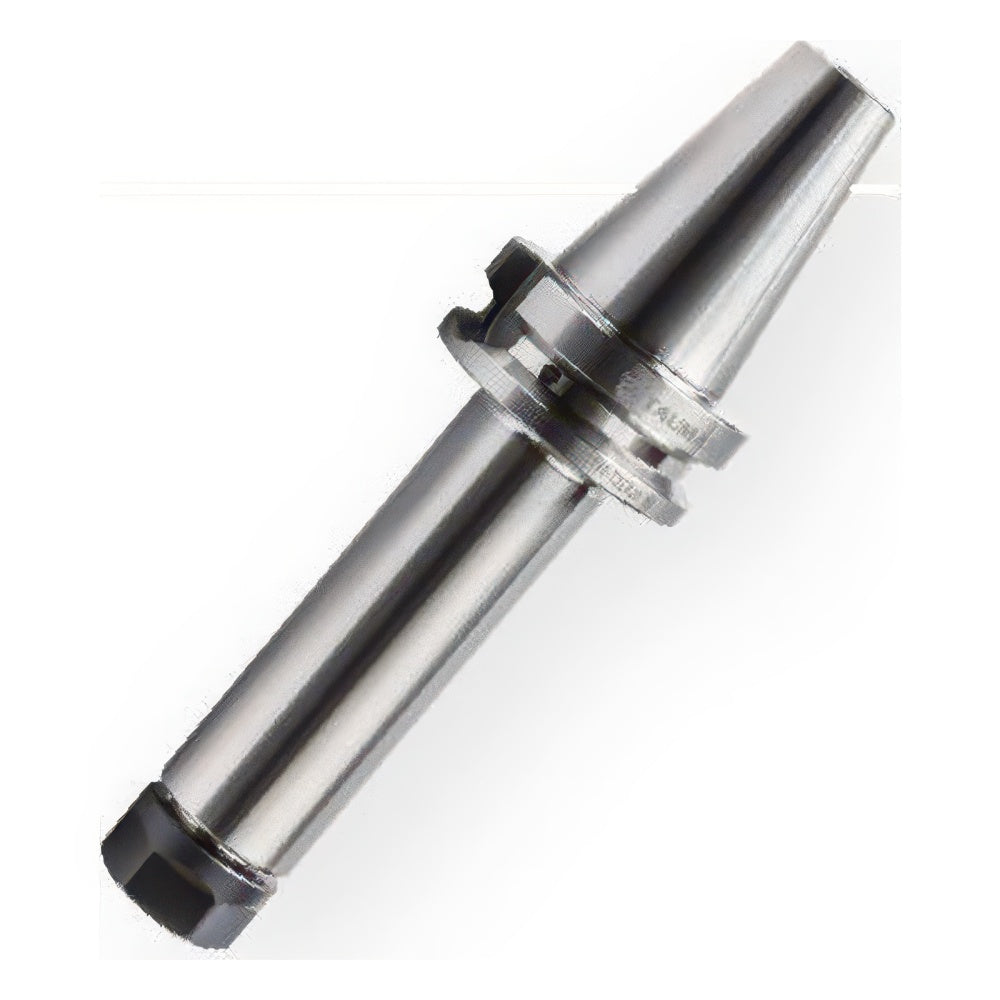

TAUMAX BT-TXER ER Collet Chuck
TAUMAX BT-TXER ER Collet Chuck
BT-shank ER collet chuck for milling, drilling, chamfering and tapping.
Key features
- MAS 403 BT30/BT40/BT50 shanks
- Accepts standard ER16 to ER32 collets
- Internal coolant optional
- Max clamping dia. 20 mm
Specifications
| Shank | MAS 403 BT |
|---|---|
| Coolant | Internal coolant optional |
| Unit | mm |
| BT30-TXER16-70 | Shank: BT30 | Clamping range: 1.0-10.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 0.7 kg | |
| BT30-TXER16-100 | Shank: BT30 | Clamping range: 1.0-10.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 0.7 kg | |
| BT30-TXER20-70 | Shank: BT30 | Clamping range: 1.0-13.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 0.7 kg | |
| BT30-TXER20-100 | Shank: BT30 | Clamping range: 1.0-13.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 0.9 kg | |
| BT30-TXER25-70 | Shank: BT30 | Clamping range: 2.0-16.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 0.8 kg | |
| BT30-TXER25-100 | Shank: BT30 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 0.9 kg | |
| BT30-TXER32-70 | Shank: BT30 | Clamping range: 2.0-20.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 0.8 kg | |
| BT30-TXER32-100 | Shank: BT30 | Clamping range: 2.0-20.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 1.0 kg | |
| BT40-TXER16-70 | Shank: BT40 | Clamping range: 1.0-10.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 1.2 kg | |
| BT40-TXER16-100 | Shank: BT40 | Clamping range: 1.0-10.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 1.3 kg | |
| BT40-TXER16-160 | Shank: BT40 | Clamping range: 1.0-10.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 1.5 kg | |
| BT40-TXER20-70 | Shank: BT40 | Clamping range: 1.0-13.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 1.2 kg | |
| BT40-TXER20-100 | Shank: BT40 | Clamping range: 1.0-13.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 1.4 kg | |
| BT40-TXER20-160 | Shank: BT40 | Clamping range: 1.0-13.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 1.8 kg | |
| BT40-TXER25-70 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 1.3 kg | |
| BT40-TXER25-100 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 1.4 kg | |
| BT40-TXER25-130 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 130 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 1.6 kg | |
| BT40-TXER25-160 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 2.0 kg | |
| BT40-TXER32-70 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 1.4 kg | |
| BT40-TXER32-100 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 1.7 kg | |
| BT40-TXER32-130 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 130 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 2.0 kg | |
| BT40-TXER32-160 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 2.5 kg | |
| BT50-TXER16-100 | Shank: BT50 | Clamping range: 1.0-10.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 3.8 kg | |
| BT50-TXER16-160 | Shank: BT50 | Clamping range: 1.0-10.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 4.1 kg | |
| BT50-TXER20-100 | Shank: BT50 | Clamping range: 1.0-13.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 3.9 kg | |
| BT50-TXER20-160 | Shank: BT50 | Clamping range: 1.0-13.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 4.5 kg | |
| BT50-TXER25-100 | Shank: BT50 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 3.9 kg | |
| BT50-TXER25-130 | Shank: BT50 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 4.2 kg | |
| BT50-TXER25-160 | Shank: BT50 | Clamping range: 2.0-16.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 4.6 kg | |
| BT50-TXER32-100 | Shank: BT50 | Clamping range: 2.0-20.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 4.1 kg | |
| BT50-TXER32-130 | Shank: BT50 | Clamping range: 2.0-20.0 mm | Gauge length (L): 130 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 4.5 kg | |
| BT50-TXER32-160 | Shank: BT50 | Clamping range: 2.0-20.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 4.9 kg |
Collet ChucksTAUMAX
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TAUMAX BT-TXER ER Collet Chuck
Available part numbers (32)
BT30-TXER16-70, BT30-TXER16-100, BT30-TXER20-70, BT30-TXER20-100, BT30-TXER25-70, BT30-TXER25-100, BT30-TXER32-70, BT30-TXER32-100, BT40-TXER16-70, BT40-TXER16-100 + 22 more — see full table ↓
How to order
Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TAUMAX
Collet Chucks
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| BT30-TXER16-70 | Shank: BT30 | Clamping range: 1.0-10.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 0.7 kg | ||
| BT30-TXER16-100 | Shank: BT30 | Clamping range: 1.0-10.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 0.7 kg | ||
| BT30-TXER20-70 | Shank: BT30 | Clamping range: 1.0-13.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 0.7 kg | ||
| BT30-TXER20-100 | Shank: BT30 | Clamping range: 1.0-13.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 0.9 kg | ||
| BT30-TXER25-70 | Shank: BT30 | Clamping range: 2.0-16.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 0.8 kg | ||
| BT30-TXER25-100 | Shank: BT30 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 0.9 kg | ||
| BT30-TXER32-70 | Shank: BT30 | Clamping range: 2.0-20.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 0.8 kg | ||
| BT30-TXER32-100 | Shank: BT30 | Clamping range: 2.0-20.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 1.0 kg | ||
| BT40-TXER16-70 | Shank: BT40 | Clamping range: 1.0-10.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 1.2 kg | ||
| BT40-TXER16-100 | Shank: BT40 | Clamping range: 1.0-10.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 1.3 kg | ||
| BT40-TXER16-160 | Shank: BT40 | Clamping range: 1.0-10.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 1.5 kg | ||
| BT40-TXER20-70 | Shank: BT40 | Clamping range: 1.0-13.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 1.2 kg | ||
| BT40-TXER20-100 | Shank: BT40 | Clamping range: 1.0-13.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 1.4 kg | ||
| BT40-TXER20-160 | Shank: BT40 | Clamping range: 1.0-13.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 1.8 kg | ||
| BT40-TXER25-70 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 1.3 kg | ||
| BT40-TXER25-100 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 1.4 kg | ||
| BT40-TXER25-130 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 130 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 1.6 kg | ||
| BT40-TXER25-160 | Shank: BT40 | Clamping range: 2.0-16.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 2.0 kg | ||
| BT40-TXER32-70 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 70 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 1.4 kg | ||
| BT40-TXER32-100 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 1.7 kg | ||
| BT40-TXER32-130 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 130 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 2.0 kg | ||
| BT40-TXER32-160 | Shank: BT40 | Clamping range: 2.0-20.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 2.5 kg | ||
| BT50-TXER16-100 | Shank: BT50 | Clamping range: 1.0-10.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 3.8 kg | ||
| BT50-TXER16-160 | Shank: BT50 | Clamping range: 1.0-10.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 28 mm | Collet: ER16 | Adjust screw thread: M11 | Package weight: 4.1 kg | ||
| BT50-TXER20-100 | Shank: BT50 | Clamping range: 1.0-13.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 3.9 kg | ||
| BT50-TXER20-160 | Shank: BT50 | Clamping range: 1.0-13.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 34 mm | Collet: ER20 | Adjust screw thread: M14 | Package weight: 4.5 kg | ||
| BT50-TXER25-100 | Shank: BT50 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 3.9 kg | ||
| BT50-TXER25-130 | Shank: BT50 | Clamping range: 2.0-16.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 4.2 kg | ||
| BT50-TXER25-160 | Shank: BT50 | Clamping range: 2.0-16.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 42 mm | Collet: ER25 | Adjust screw thread: M18 | Package weight: 4.6 kg | ||
| BT50-TXER32-100 | Shank: BT50 | Clamping range: 2.0-20.0 mm | Gauge length (L): 100 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 4.1 kg | ||
| BT50-TXER32-130 | Shank: BT50 | Clamping range: 2.0-20.0 mm | Gauge length (L): 130 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 4.5 kg | ||
| BT50-TXER32-160 | Shank: BT50 | Clamping range: 2.0-20.0 mm | Gauge length (L): 160 mm | Nose dia. (D1): 50 mm | Collet: ER32 | Adjust screw thread: M22 | Package weight: 4.9 kg |
