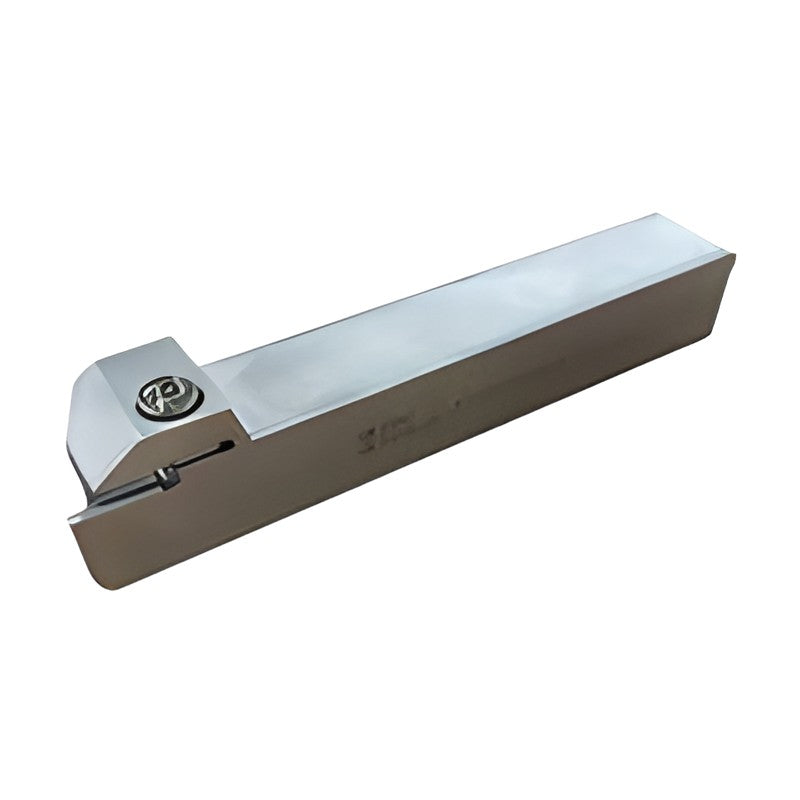

TAUMAX cBN Grooving Holder KGEHR

TAUMAX cBN Grooving Holder KGEHR

External horizontal grooving holder designed for cBN grooving inserts KGMN with a strong clamping system.

Key features

  • Strong clamping, self-centering
  • Reduces deformation by 28.4% vs. general holders (catalog test)
  • Right hand, 25x25 mm shank
KGEHR2525-2-T3 H=h (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 25.2 | T-max (mm): 3.0 | Applied insert: KGMN200-xx, KGMN250-xx | Screw: CGB0512 | Stock: Yes
KGEHR2525-3-T3.5 H=h (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 25.4 | T-max (mm): 3.5 | Applied insert: KGMN300-xx, KGMN350-xx | Screw: CGB0512 | Stock: Yes
KGEHR2525-4-T3.5 H=h (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 25.4 | T-max (mm): 3.5 | Applied insert: KGMN400-xx, KGMN450-xx | Screw: CGB0616 | Stock: Yes
Grooving HoldersTAUMAX
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX cBN Grooving Holder KGEHR

Brand TAUMAX·Grooving Holders

Available part numbers (3)

KGEHR2525-2-T3, KGEHR2525-3-T3.5, KGEHR2525-4-T3.5

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGEHR2525-2-T3H=h (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 25.2 | T-max (mm): 3.0 | Applied insert: KGMN200-xx, KGMN250-xx | Screw: CGB0512 | Stock: Yes
KGEHR2525-3-T3.5H=h (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 25.4 | T-max (mm): 3.5 | Applied insert: KGMN300-xx, KGMN350-xx | Screw: CGB0512 | Stock: Yes
KGEHR2525-4-T3.5H=h (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 25.4 | T-max (mm): 3.5 | Applied insert: KGMN400-xx, KGMN450-xx | Screw: CGB0616 | Stock: Yes
