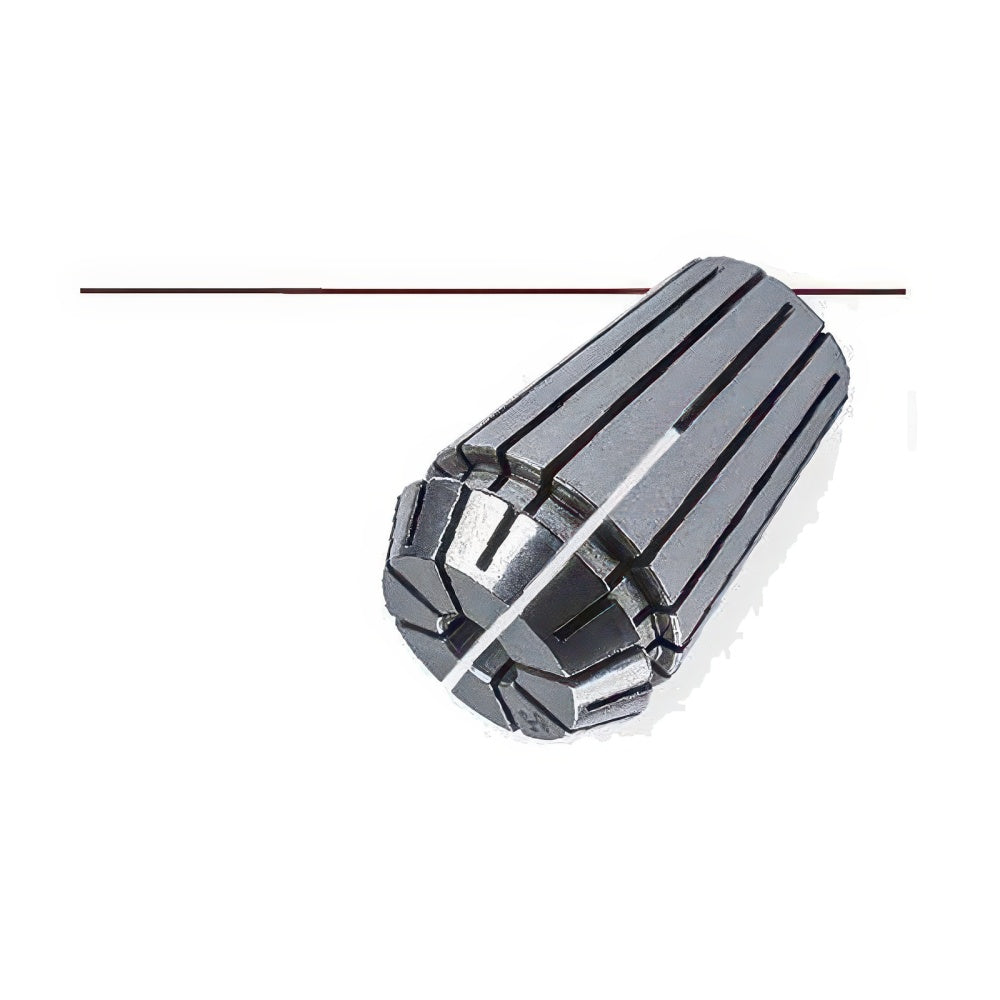

TAUMAX ER-T Collet (General Type)

TAUMAX ER-T Collet (General Type)

Standard ER spring collets in sizes ER11 to ER32 with 8 µm run-out accuracy.

Key features

  • DIN 6499 ER system collets
  • Run-out accuracy 8 µm
  • Sizes ER11, ER16, ER20, ER25, ER32
  • 1 mm clamping-diameter steps

Specifications

Type ER collet, general type
Accuracy 8 µm
Unit mm
ER11-2.0-T ER size: ER11 | Clamping dia.: 2 mm | Length (L): 18 mm | Outer dia. (D1): 11.5 mm | Accuracy: 8 µm
ER11-3.0-T ER size: ER11 | Clamping dia.: 3 mm | Length (L): 18 mm | Outer dia. (D1): 11.5 mm | Accuracy: 8 µm
ER11-4.0-T ER size: ER11 | Clamping dia.: 4 mm | Length (L): 18 mm | Outer dia. (D1): 11.5 mm | Accuracy: 8 µm
ER11-5.0-T ER size: ER11 | Clamping dia.: 5 mm | Length (L): 18 mm | Outer dia. (D1): 11.5 mm | Accuracy: 8 µm
ER11-6.0-T ER size: ER11 | Clamping dia.: 6 mm | Length (L): 18 mm | Outer dia. (D1): 11.5 mm | Accuracy: 8 µm
ER11-7.0-T ER size: ER11 | Clamping dia.: 7 mm | Length (L): 18 mm | Outer dia. (D1): 11.5 mm | Accuracy: 8 µm
ER16-2.0-T ER size: ER16 | Clamping dia.: 2 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-3.0-T ER size: ER16 | Clamping dia.: 3 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-4.0-T ER size: ER16 | Clamping dia.: 4 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-5.0-T ER size: ER16 | Clamping dia.: 5 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-6.0-T ER size: ER16 | Clamping dia.: 6 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-7.0-T ER size: ER16 | Clamping dia.: 7 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-8.0-T ER size: ER16 | Clamping dia.: 8 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-9.0-T ER size: ER16 | Clamping dia.: 9 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER16-10.0-T ER size: ER16 | Clamping dia.: 10 mm | Length (L): 27.5 mm | Outer dia. (D1): 17 mm | Accuracy: 8 µm
ER20-2.0-T ER size: ER20 | Clamping dia.: 2 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-3.0-T ER size: ER20 | Clamping dia.: 3 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-4.0-T ER size: ER20 | Clamping dia.: 4 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-5.0-T ER size: ER20 | Clamping dia.: 5 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-6.0-T ER size: ER20 | Clamping dia.: 6 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-7.0-T ER size: ER20 | Clamping dia.: 7 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-8.0-T ER size: ER20 | Clamping dia.: 8 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-9.0-T ER size: ER20 | Clamping dia.: 9 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-10.0-T ER size: ER20 | Clamping dia.: 10 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-11.0-T ER size: ER20 | Clamping dia.: 11 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-12.0-T ER size: ER20 | Clamping dia.: 12 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER20-13.0-T ER size: ER20 | Clamping dia.: 13 mm | Length (L): 31.5 mm | Outer dia. (D1): 21 mm | Accuracy: 8 µm
ER25-2.0-T ER size: ER25 | Clamping dia.: 2 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-3.0-T ER size: ER25 | Clamping dia.: 3 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-4.0-T ER size: ER25 | Clamping dia.: 4 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-5.0-T ER size: ER25 | Clamping dia.: 5 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-6.0-T ER size: ER25 | Clamping dia.: 6 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-7.0-T ER size: ER25 | Clamping dia.: 7 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-8.0-T ER size: ER25 | Clamping dia.: 8 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-9.0-T ER size: ER25 | Clamping dia.: 9 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-10.0-T ER size: ER25 | Clamping dia.: 10 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-11.0-T ER size: ER25 | Clamping dia.: 11 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-12.0-T ER size: ER25 | Clamping dia.: 12 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-13.0-T ER size: ER25 | Clamping dia.: 13 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-14.0-T ER size: ER25 | Clamping dia.: 14 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-15.0-T ER size: ER25 | Clamping dia.: 15 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER25-16.0-T ER size: ER25 | Clamping dia.: 16 mm | Length (L): 34 mm | Outer dia. (D1): 26 mm | Accuracy: 8 µm
ER32-2.0-T ER size: ER32 | Clamping dia.: 2 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-3.0-T ER size: ER32 | Clamping dia.: 3 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-4.0-T ER size: ER32 | Clamping dia.: 4 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-5.0-T ER size: ER32 | Clamping dia.: 5 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-6.0-T ER size: ER32 | Clamping dia.: 6 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-7.0-T ER size: ER32 | Clamping dia.: 7 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-8.0-T ER size: ER32 | Clamping dia.: 8 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-9.0-T ER size: ER32 | Clamping dia.: 9 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-10.0-T ER size: ER32 | Clamping dia.: 10 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-11.0-T ER size: ER32 | Clamping dia.: 11 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-12.0-T ER size: ER32 | Clamping dia.: 12 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-13.0-T ER size: ER32 | Clamping dia.: 13 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-14.0-T ER size: ER32 | Clamping dia.: 14 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-15.0-T ER size: ER32 | Clamping dia.: 15 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-16.0-T ER size: ER32 | Clamping dia.: 16 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-17.0-T ER size: ER32 | Clamping dia.: 17 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-18.0-T ER size: ER32 | Clamping dia.: 18 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-19.0-T ER size: ER32 | Clamping dia.: 19 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ER32-20.0-T ER size: ER32 | Clamping dia.: 20 mm | Length (L): 40 mm | Outer dia. (D1): 33 mm | Accuracy: 8 µm
ColletsTAUMAX
61 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX ER-T Collet (General Type)

Brand TAUMAX·Collets

Available part numbers (61)

ER11-2.0-T, ER11-3.0-T, ER11-4.0-T, ER11-5.0-T, ER11-6.0-T, ER11-7.0-T, ER16-2.0-T, ER16-3.0-T, ER16-4.0-T, ER16-5.0-T + 51 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
