• TAUMAX MH-300 Shrink Fit Device
1 1

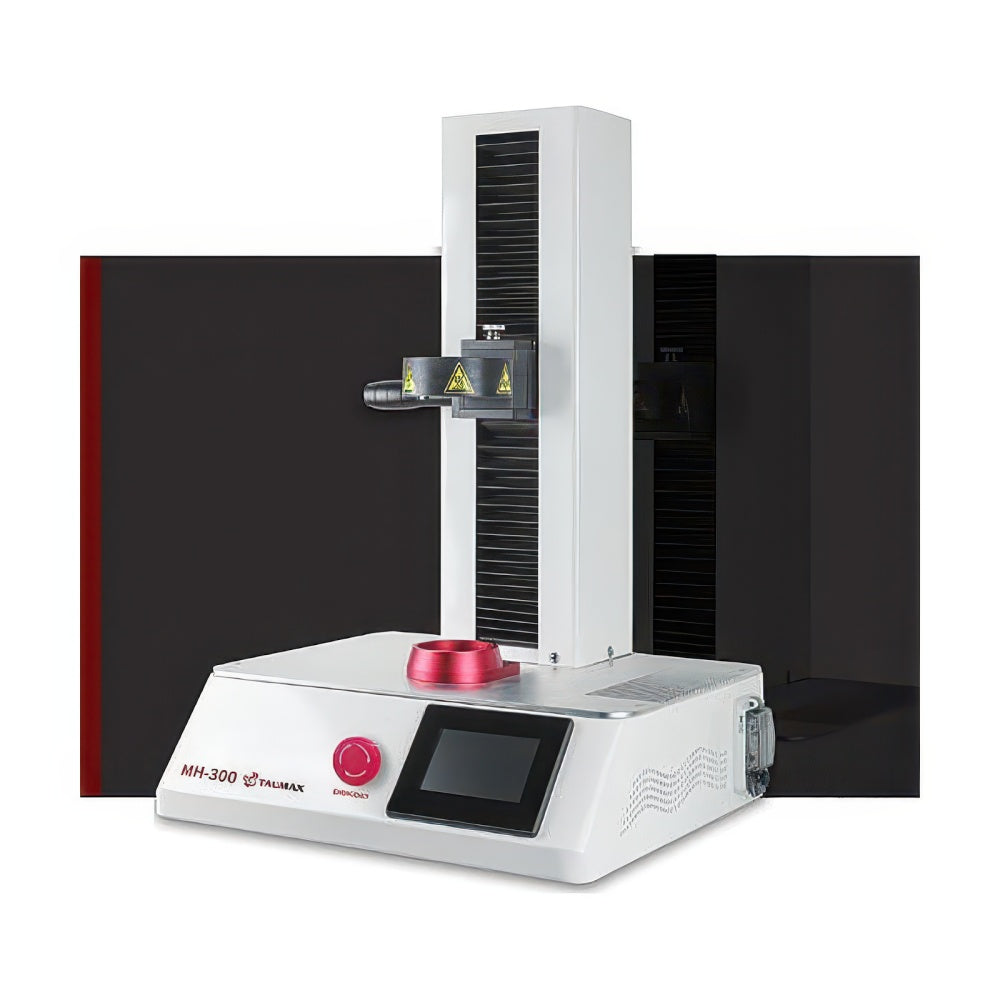

TAUMAX MH-300 Shrink Fit Device

TAUMAX MH-300 Shrink Fit Device

Induction shrink-fit unit for steel and stainless shrink holders with tool-diameter presets.

Key features

  • For steel and SUS shrink holders
  • Presets for 10 frequently used tool diameters
  • Interchangeable coils for small (35 mm) and large (58 mm) diameters
  • BT30/BT40/HSK63 standard; other shanks optional
  • Overheat prevention and manual cooling settings

Specifications

Unit mm
MH-300 Power supply: Single phase AC 220V (50Hz) | Size (W x L x H): 500 x 430 x 750 mm | Max frequency: 40 kHz | Max power: 3.2 kW | Axis range: 440 mm | Basic bore range: Ø3-Ø12 mm | Packaging weight: 28 kg
Shrink Fit MachinesTAUMAX
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX MH-300 Shrink Fit Device

Brand TAUMAX·Shrink Fit Machines

Available part numbers (1)

MH-300

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MH-300Power supply: Single phase AC 220V (50Hz) | Size (W x L x H): 500 x 430 x 750 mm | Max frequency: 40 kHz | Max power: 3.2 kW | Axis range: 440 mm | Basic bore range: Ø3-Ø12 mm | Packaging weight: 28 kg
