TPC Mechatronics FEX450A Series Iron-Core Linear Servo Motor

TPC Mechatronics FEX450A Series Iron-Core Linear Servo Motor

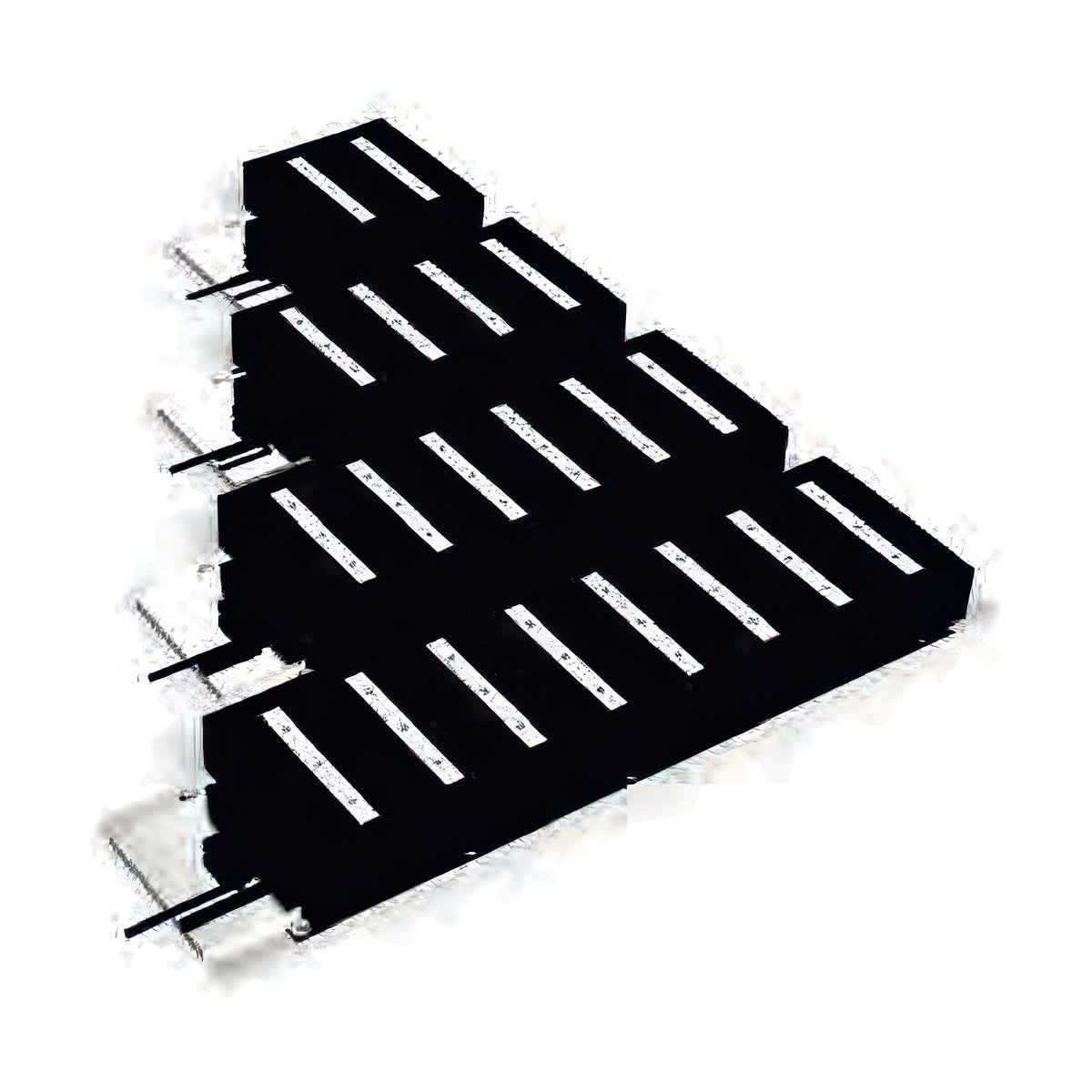

The FEX450A series is an iron-core linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 1216 to 4864 N and continuous force from 405 to 1621 N across the coil lengths, with an assembly envelope of 160 x 68 mm
  • The iron-core design provides high force density and rigidity for high-thrust axes
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 5.0 kW include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type iron-core
Peak current 45 Arms
Continuous current 15 Arms
Assembly height x width 160 x 68 mm
FEX450A150S Motor type: iron-core | Peak force: 1216 N | Continuous force: 405 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 27 N/Arms | Magnetic attraction force: 2026.7 N | Moving part mass: 5.5 kg | Assembly height x width: 160 x 68 mm
FEX450A280S Motor type: iron-core | Peak force: 2432 N | Continuous force: 810 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 54 N/Arms | Magnetic attraction force: 4053 N | Moving part mass: 10.6 kg | Assembly height x width: 160 x 68 mm
FEX450A410S Motor type: iron-core | Peak force: 3648 N | Continuous force: 1216 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 81.1 N/Arms | Magnetic attraction force: 6080 N | Moving part mass: 15.9 kg | Assembly height x width: 160 x 68 mm
FEX450A540S Motor type: iron-core | Peak force: 4864 N | Continuous force: 1621 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 108.1 N/Arms | Magnetic attraction force: 8107 N | Moving part mass: 21.9 kg | Assembly height x width: 160 x 68 mm
Linear MotorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics FEX450A Series Iron-Core Linear Servo Motor

Brand TPC Mechatronics·Linear Motors

Available part numbers (4)

FEX450A150S, FEX450A280S, FEX450A410S, FEX450A540S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FEX450A150SMotor type: iron-core | Peak force: 1216 N | Continuous force: 405 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 27 N/Arms | Magnetic attraction force: 2026.7 N | Moving part mass: 5.5 kg | Assembly height x width: 160 x 68 mm
FEX450A280SMotor type: iron-core | Peak force: 2432 N | Continuous force: 810 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 54 N/Arms | Magnetic attraction force: 4053 N | Moving part mass: 10.6 kg | Assembly height x width: 160 x 68 mm
FEX450A410SMotor type: iron-core | Peak force: 3648 N | Continuous force: 1216 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 81.1 N/Arms | Magnetic attraction force: 6080 N | Moving part mass: 15.9 kg | Assembly height x width: 160 x 68 mm
FEX450A540SMotor type: iron-core | Peak force: 4864 N | Continuous force: 1621 N | Peak current: 45 Arms | Continuous current: 15 Arms | Force constant: 108.1 N/Arms | Magnetic attraction force: 8107 N | Moving part mass: 21.9 kg | Assembly height x width: 160 x 68 mm
