TPC Mechatronics FMD110A Series Iron-Core Linear Servo Motor

TPC Mechatronics FMD110A Series Iron-Core Linear Servo Motor

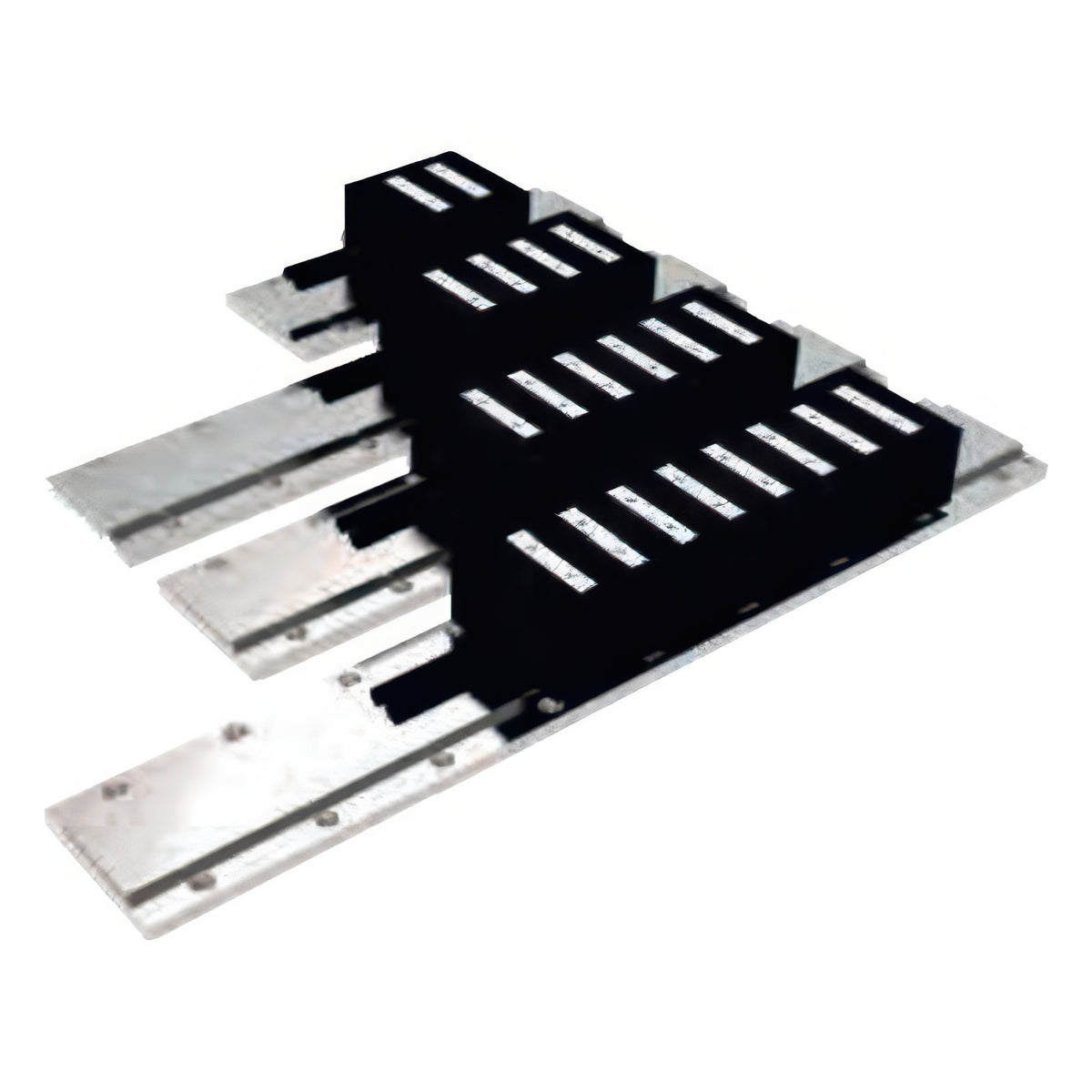

The FMD110A series is an iron-core linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 184 to 920 N and continuous force from 61 to 306 N across the coil lengths, with an assembly envelope of 70 x 37.8 mm
  • The iron-core design provides high force density and rigidity for high-thrust axes
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 750 W include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type iron-core
Peak current 11.4 Arms
Continuous current 3.8 Arms
Assembly height x width 70 x 37.8 mm
FMD110A70S Motor type: iron-core | Peak force: 184 N | Continuous force: 61 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 16.1 N/Arms | Magnetic attraction force: 306.7 N | Moving part mass: 0.8 kg | Assembly height x width: 70 x 37.8 mm
FMD110A130S Motor type: iron-core | Peak force: 368 N | Continuous force: 122 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 32.3 N/Arms | Magnetic attraction force: 613.3 N | Moving part mass: 1.4 kg | Assembly height x width: 70 x 37.8 mm
FMD110A190S Motor type: iron-core | Peak force: 552 N | Continuous force: 184 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 48.4 N/Arms | Magnetic attraction force: 920 N | Moving part mass: 1.9 kg | Assembly height x width: 70 x 37.8 mm
FMD110A250S Motor type: iron-core | Peak force: 736 N | Continuous force: 245 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 64.6 N/Arms | Magnetic attraction force: 1226.7 N | Moving part mass: 2.5 kg | Assembly height x width: 70 x 37.8 mm
FMD110A310S Motor type: iron-core | Peak force: 920 N | Continuous force: 306 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 80.7 N/Arms | Magnetic attraction force: 1533.3 N | Moving part mass: 3 kg | Assembly height x width: 70 x 37.8 mm
