TPC Mechatronics FMDH190A Series High-Force Iron-Core Linear Servo Motor

TPC Mechatronics FMDH190A Series High-Force Iron-Core Linear Servo Motor

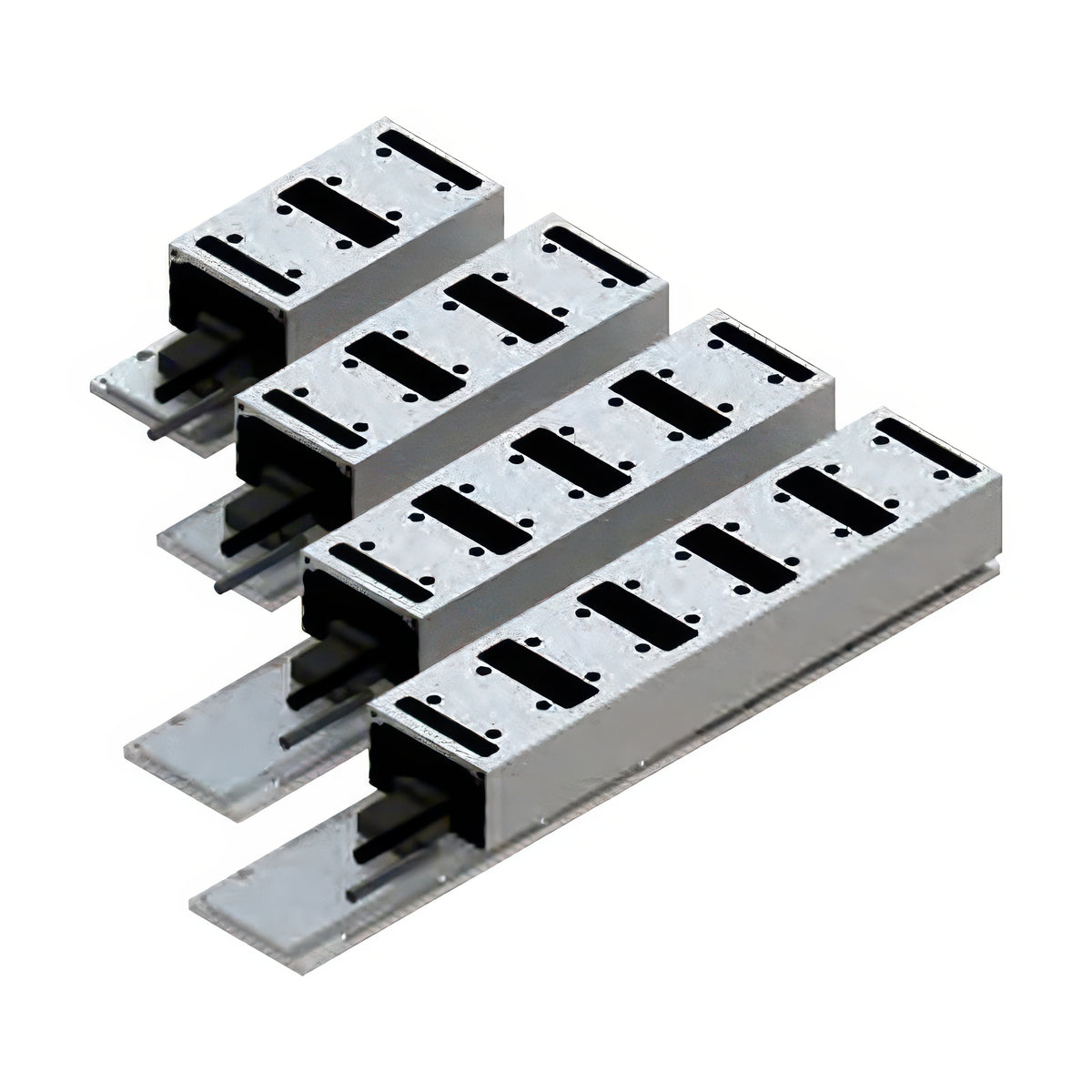

The FMDH190A series is a high-force iron-core linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 260 to 1300 N and continuous force from 130 to 650 N across the coil lengths, with an assembly envelope of 50 x 37.8 mm
  • Magnet tracks can be joined for an unlimited stroke length
  • The iron-core design provides high force density and rigidity for high-thrust axes
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 1.5 kW include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type high-force iron-core
Peak current 19.2 Arms
Continuous current 6.4 Arms
Assembly height x width 50 x 37.8 mm
FMDH190A70S Motor type: high-force iron-core | Peak force: 260 N | Continuous force: 130 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 20.3 N/Arms | Magnetic attraction force: 400 N | Moving part mass: 1 kg | Assembly height x width: 50 x 37.8 mm
FMDH190A130S Motor type: high-force iron-core | Peak force: 520 N | Continuous force: 260 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 40.6 N/Arms | Magnetic attraction force: 800 N | Moving part mass: 2 kg | Assembly height x width: 50 x 37.8 mm
FMDH190A190S Motor type: high-force iron-core | Peak force: 780 N | Continuous force: 390 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 60.9 N/Arms | Magnetic attraction force: 1200 N | Moving part mass: 3 kg | Assembly height x width: 50 x 37.8 mm
FMDH190A250S Motor type: high-force iron-core | Peak force: 1040 N | Continuous force: 520 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 81.3 N/Arms | Magnetic attraction force: 1600 N | Moving part mass: 4 kg | Assembly height x width: 50 x 37.8 mm
FMDH190A310S Motor type: high-force iron-core | Peak force: 1300 N | Continuous force: 650 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 101.6 N/Arms | Magnetic attraction force: 2000 N | Moving part mass: 5 kg | Assembly height x width: 50 x 37.8 mm
