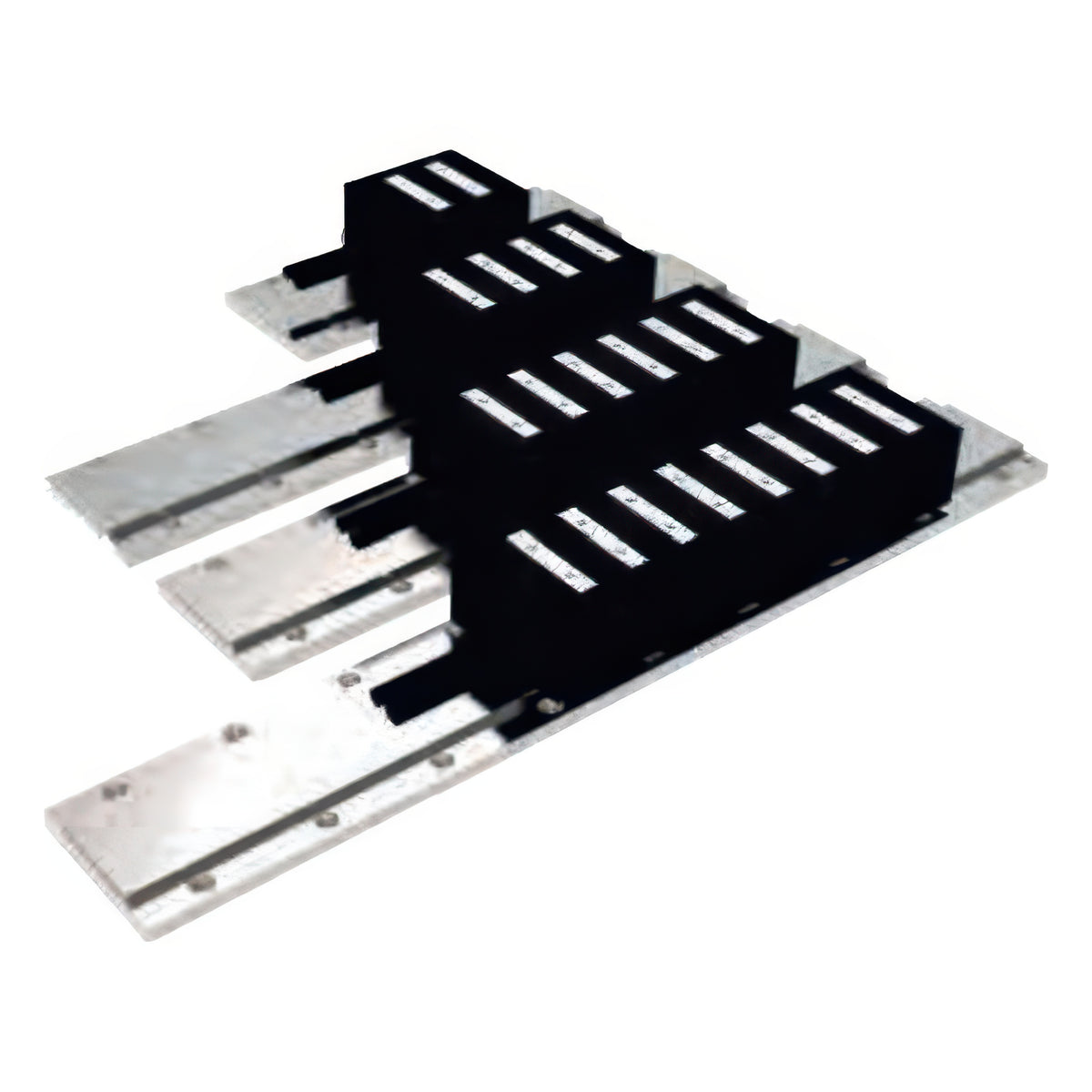

TPC Mechatronics FMI40A Series Iron-Core Linear Servo Motor

TPC Mechatronics FMI40A Series Iron-Core Linear Servo Motor

The FMI40A series is an iron-core linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 61 to 244 N and continuous force from 20 to 81 N across the coil lengths, with an assembly envelope of 50 x 34.3 mm
  • The iron-core design provides high force density and rigidity for high-thrust axes
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 200 W include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type iron-core
Peak current 3.9 Arms
Continuous current 1.3 Arms
Assembly height x width 50 x 34.3 mm
FMI40A50S Motor type: iron-core | Peak force: 61 N | Continuous force: 20 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 15.7 N/Arms | Magnetic attraction force: 101.9 N | Moving part mass: 0.2 kg | Assembly height x width: 50 x 34.3 mm
FMI40A80S Motor type: iron-core | Peak force: 122 N | Continuous force: 40 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 31.3 N/Arms | Magnetic attraction force: 203.7 N | Moving part mass: 0.5 kg | Assembly height x width: 50 x 34.3 mm
FMI40A120S Motor type: iron-core | Peak force: 183 N | Continuous force: 61 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 47 N/Arms | Magnetic attraction force: 305.6 N | Moving part mass: 0.7 kg | Assembly height x width: 50 x 34.3 mm
FMI40A150S Motor type: iron-core | Peak force: 244 N | Continuous force: 81 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 62.7 N/Arms | Magnetic attraction force: 407.4 N | Moving part mass: 0.9 kg | Assembly height x width: 50 x 34.3 mm
Linear MotorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics FMI40A Series Iron-Core Linear Servo Motor

Brand TPC Mechatronics·Linear Motors

Available part numbers (4)

FMI40A50S, FMI40A80S, FMI40A120S, FMI40A150S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMI40A50SMotor type: iron-core | Peak force: 61 N | Continuous force: 20 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 15.7 N/Arms | Magnetic attraction force: 101.9 N | Moving part mass: 0.2 kg | Assembly height x width: 50 x 34.3 mm
FMI40A80SMotor type: iron-core | Peak force: 122 N | Continuous force: 40 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 31.3 N/Arms | Magnetic attraction force: 203.7 N | Moving part mass: 0.5 kg | Assembly height x width: 50 x 34.3 mm
FMI40A120SMotor type: iron-core | Peak force: 183 N | Continuous force: 61 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 47 N/Arms | Magnetic attraction force: 305.6 N | Moving part mass: 0.7 kg | Assembly height x width: 50 x 34.3 mm
FMI40A150SMotor type: iron-core | Peak force: 244 N | Continuous force: 81 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 62.7 N/Arms | Magnetic attraction force: 407.4 N | Moving part mass: 0.9 kg | Assembly height x width: 50 x 34.3 mm
