TPC Mechatronics FMIC40A Series Iron-Core Linear Servo Motor

TPC Mechatronics FMIC40A Series Iron-Core Linear Servo Motor

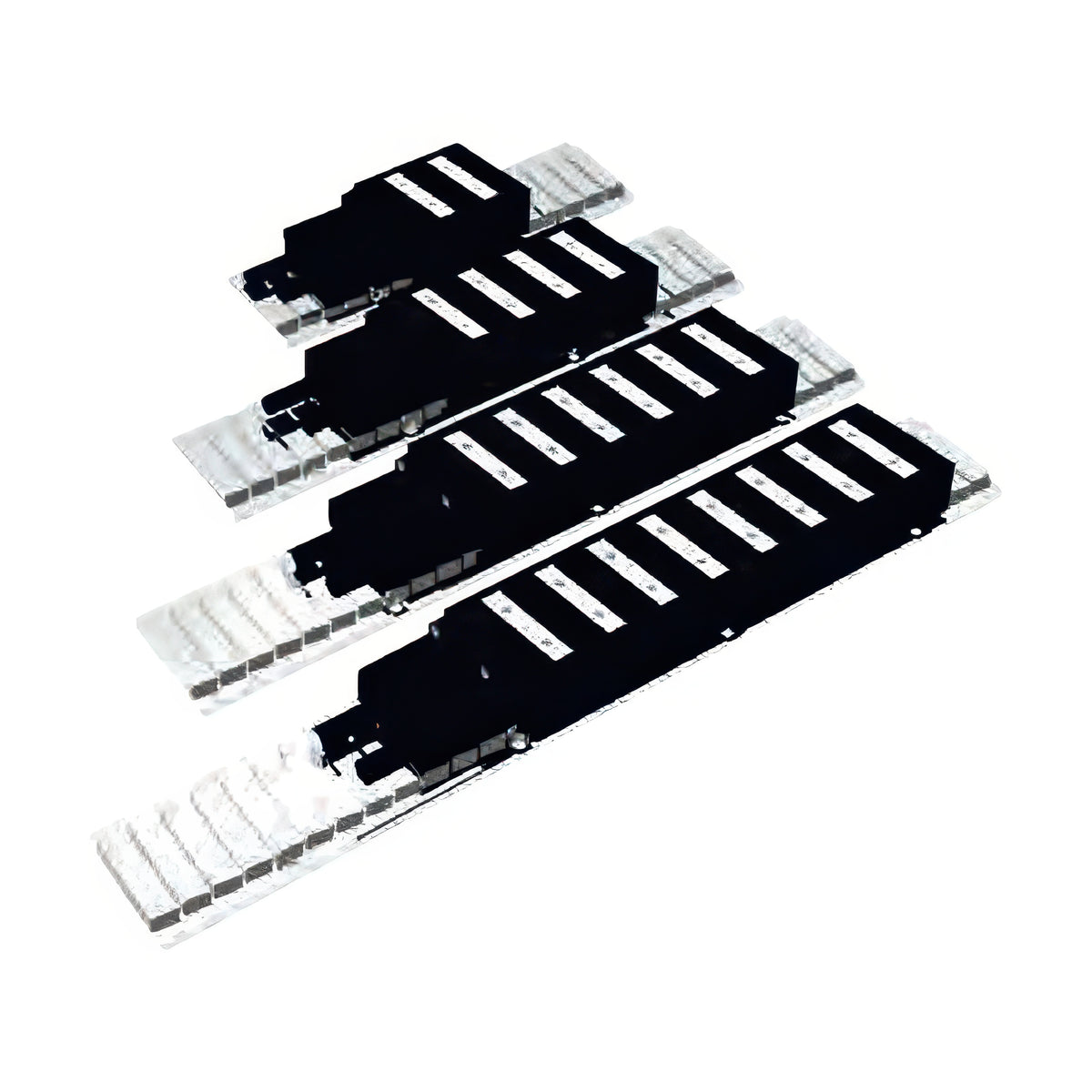

The FMIC40A series is an iron-core linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 25 to 100 N and continuous force from 8 to 32 N across the coil lengths, with an assembly envelope of 42 x 23.7 mm
  • The iron-core design provides high force density and rigidity for high-thrust axes
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 200 W include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type iron-core
Peak current 3.9 Arms
Continuous current 1.3 Arms
Assembly height x width 42 x 23.7 mm
FMIC40A50S Motor type: iron-core | Peak force: 25 N | Continuous force: 8 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 6.4 N/Arms | Magnetic attraction force: 41.7 N | Moving part mass: 0.2 kg | Assembly height x width: 42 x 23.7 mm
FMIC40A80S Motor type: iron-core | Peak force: 50 N | Continuous force: 16 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 12.8 N/Arms | Magnetic attraction force: 83.5 N | Moving part mass: 0.4 kg | Assembly height x width: 42 x 23.7 mm
FMIC40A120S Motor type: iron-core | Peak force: 75 N | Continuous force: 24 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 19.2 N/Arms | Magnetic attraction force: 125.2 N | Moving part mass: 0.6 kg | Assembly height x width: 42 x 23.7 mm
FMIC40A150S Motor type: iron-core | Peak force: 100 N | Continuous force: 32 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 25.6 N/Arms | Magnetic attraction force: 167 N | Moving part mass: 0.8 kg | Assembly height x width: 42 x 23.7 mm
Linear MotorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics FMIC40A Series Iron-Core Linear Servo Motor

Brand TPC Mechatronics·Linear Motors

Available part numbers (4)

FMIC40A50S, FMIC40A80S, FMIC40A120S, FMIC40A150S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMIC40A50SMotor type: iron-core | Peak force: 25 N | Continuous force: 8 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 6.4 N/Arms | Magnetic attraction force: 41.7 N | Moving part mass: 0.2 kg | Assembly height x width: 42 x 23.7 mm
FMIC40A80SMotor type: iron-core | Peak force: 50 N | Continuous force: 16 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 12.8 N/Arms | Magnetic attraction force: 83.5 N | Moving part mass: 0.4 kg | Assembly height x width: 42 x 23.7 mm
FMIC40A120SMotor type: iron-core | Peak force: 75 N | Continuous force: 24 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 19.2 N/Arms | Magnetic attraction force: 125.2 N | Moving part mass: 0.6 kg | Assembly height x width: 42 x 23.7 mm
FMIC40A150SMotor type: iron-core | Peak force: 100 N | Continuous force: 32 N | Peak current: 3.9 Arms | Continuous current: 1.3 Arms | Force constant: 25.6 N/Arms | Magnetic attraction force: 167 N | Moving part mass: 0.8 kg | Assembly height x width: 42 x 23.7 mm
