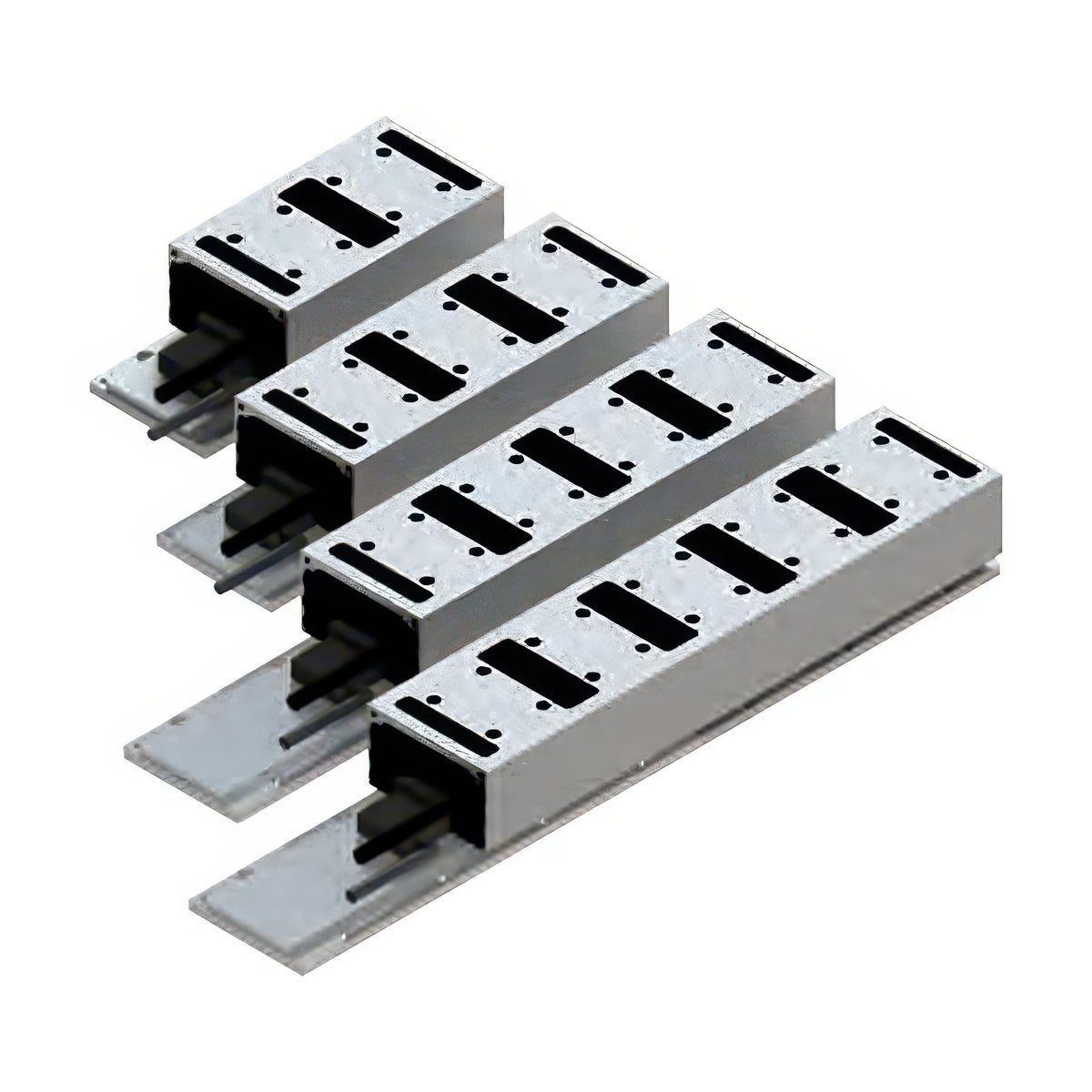

The FSMH110A series is a high-force iron-core linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 160 to 800 N and continuous force from 80 to 400 N across the coil lengths, with an assembly envelope of 50 x 37.8 mm
  • Magnet tracks can be joined for an unlimited stroke length
  • The iron-core design provides high force density and rigidity for high-thrust axes
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 1.5 kW include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type high-force iron-core
Peak current 11.4 Arms
Continuous current 3.8 Arms
Assembly height x width 50 x 37.8 mm
FSMH110A70S Motor type: high-force iron-core | Peak force: 160 N | Continuous force: 80 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 21 N/Arms | Magnetic attraction force: 240 N | Moving part mass: 0.8 kg | Assembly height x width: 50 x 37.8 mm
FSMH110A130S Motor type: high-force iron-core | Peak force: 320 N | Continuous force: 160 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 42 N/Arms | Magnetic attraction force: 480 N | Moving part mass: 1.5 kg | Assembly height x width: 50 x 37.8 mm
FSMH110A190S Motor type: high-force iron-core | Peak force: 480 N | Continuous force: 240 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 63 N/Arms | Magnetic attraction force: 720 N | Moving part mass: 2.3 kg | Assembly height x width: 50 x 37.8 mm
FSMH110A250S Motor type: high-force iron-core | Peak force: 640 N | Continuous force: 320 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 84 N/Arms | Magnetic attraction force: 960 N | Moving part mass: 3 kg | Assembly height x width: 50 x 37.8 mm
FSMH110A310S Motor type: high-force iron-core | Peak force: 800 N | Continuous force: 400 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 105 N/Arms | Magnetic attraction force: 1200 N | Moving part mass: 3.8 kg | Assembly height x width: 50 x 37.8 mm
