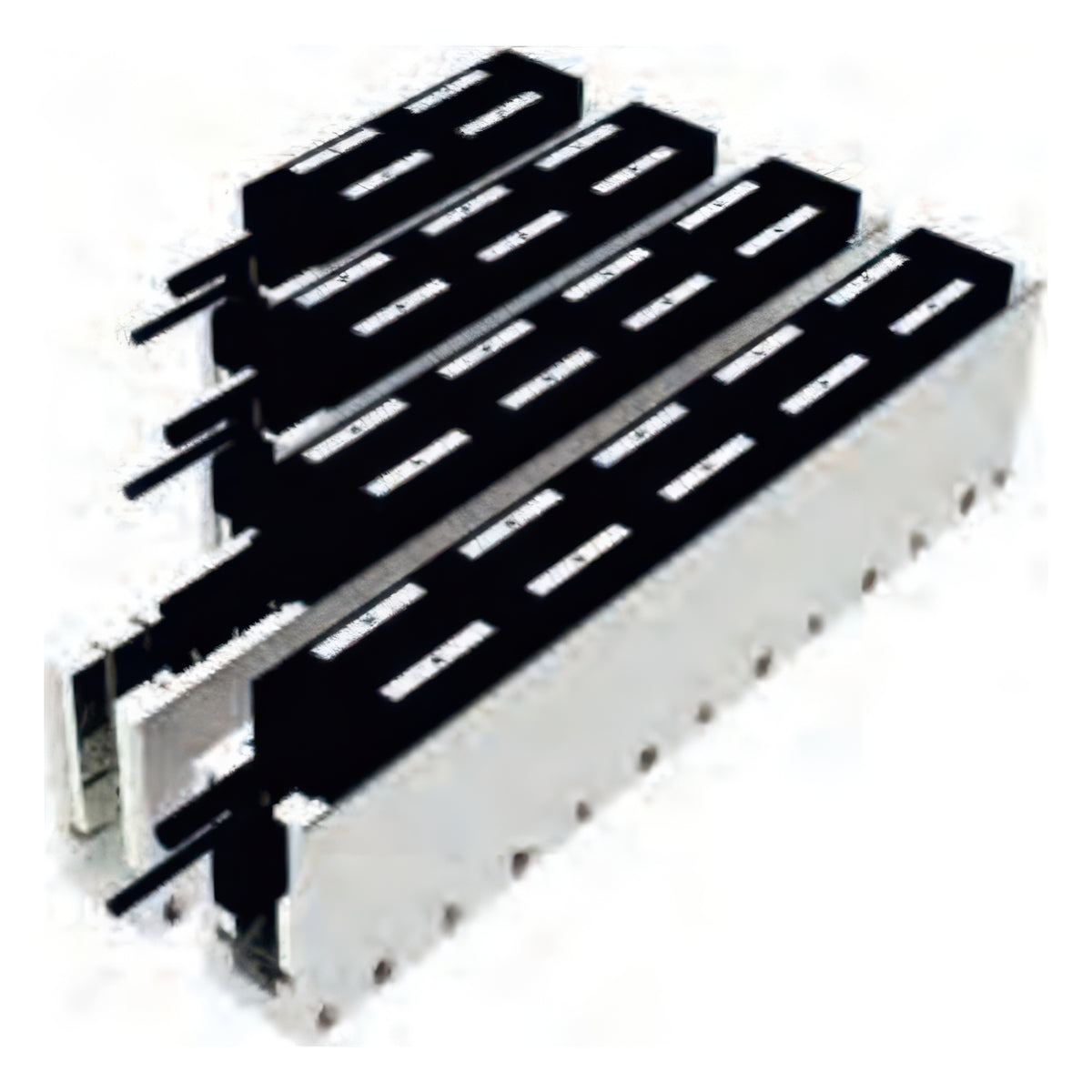

TPC Mechatronics GLB190A Series Coreless Linear Servo Motor

TPC Mechatronics GLB190A Series Coreless Linear Servo Motor

The GLB190A series is a coreless linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 780 to 1950 N and continuous force from 260 to 650 N across the coil lengths, with an assembly envelope of 52 x 122 mm
  • Magnet tracks can be joined for an unlimited stroke length
  • The coreless design has no magnetic attraction force and no cogging, giving smooth motion for precision stages
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 1.5 kW include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type coreless
Peak current 19.2 Arms
Continuous current 6.4 Arms
Magnetic attraction force 0 N
Assembly height x width 52 x 122 mm
GLB190A220S Motor type: coreless | Peak force: 780 N | Continuous force: 260 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 41 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 1.5 kg | Assembly height x width: 52 x 122 mm
GLB190A320S Motor type: coreless | Peak force: 1170 N | Continuous force: 390 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 61 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 2.1 kg | Assembly height x width: 52 x 122 mm
GLB190A420S Motor type: coreless | Peak force: 1560 N | Continuous force: 520 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 81 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 2.7 kg | Assembly height x width: 52 x 122 mm
GLB190A510S Motor type: coreless | Peak force: 1950 N | Continuous force: 650 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 102 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 3.3 kg | Assembly height x width: 52 x 122 mm
Linear MotorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics GLB190A Series Coreless Linear Servo Motor

Brand TPC Mechatronics·Linear Motors

Available part numbers (4)

GLB190A220S, GLB190A320S, GLB190A420S, GLB190A510S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GLB190A220SMotor type: coreless | Peak force: 780 N | Continuous force: 260 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 41 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 1.5 kg | Assembly height x width: 52 x 122 mm
GLB190A320SMotor type: coreless | Peak force: 1170 N | Continuous force: 390 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 61 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 2.1 kg | Assembly height x width: 52 x 122 mm
GLB190A420SMotor type: coreless | Peak force: 1560 N | Continuous force: 520 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 81 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 2.7 kg | Assembly height x width: 52 x 122 mm
GLB190A510SMotor type: coreless | Peak force: 1950 N | Continuous force: 650 N | Peak current: 19.2 Arms | Continuous current: 6.4 Arms | Force constant: 102 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 3.3 kg | Assembly height x width: 52 x 122 mm
