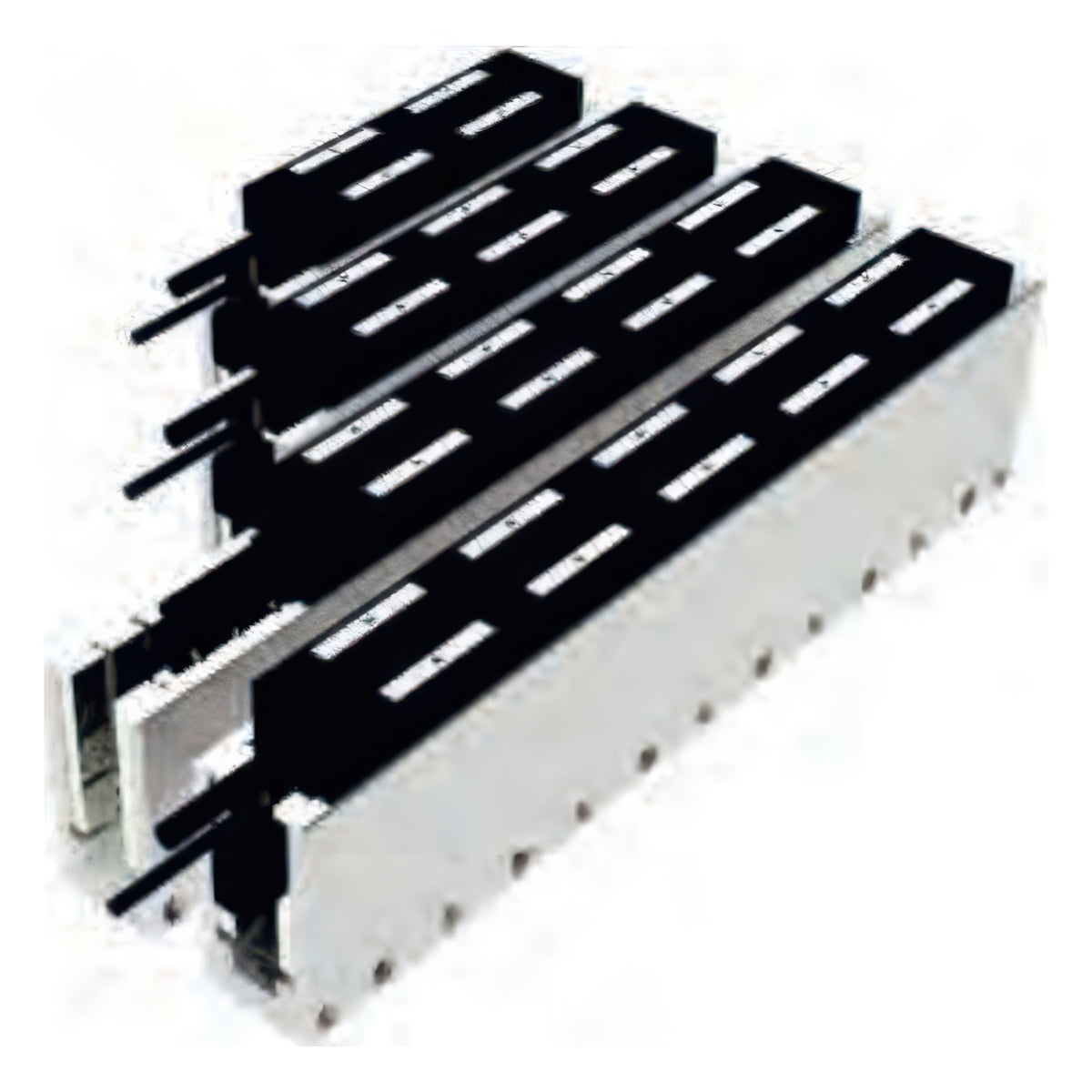

TPC Mechatronics GMD110A Series Coreless Linear Servo Motor

TPC Mechatronics GMD110A Series Coreless Linear Servo Motor

The GMD110A series is a coreless linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 274 to 685 N and continuous force from 91 to 228 N across the coil lengths, with an assembly envelope of 40.9 x 102 mm
  • The coreless design has no magnetic attraction force and no cogging, giving smooth motion for precision stages
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 750 W include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type coreless
Peak current 11.4 Arms
Continuous current 3.8 Arms
Magnetic attraction force 0 N
Assembly height x width 40.9 x 102 mm
GMD110A140S Motor type: coreless | Peak force: 274 N | Continuous force: 91 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 24.04 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 0.83 kg | Assembly height x width: 40.9 x 102 mm
GMD110A200S Motor type: coreless | Peak force: 411 N | Continuous force: 137 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 36.05 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 1.24 kg | Assembly height x width: 40.9 x 102 mm
GMD110A260S Motor type: coreless | Peak force: 548 N | Continuous force: 182 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 48.07 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 1.65 kg | Assembly height x width: 40.9 x 102 mm
GMD110A320S Motor type: coreless | Peak force: 685 N | Continuous force: 228 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 60.09 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 2.06 kg | Assembly height x width: 40.9 x 102 mm
Linear MotorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics GMD110A Series Coreless Linear Servo Motor

Brand TPC Mechatronics·Linear Motors

Available part numbers (4)

GMD110A140S, GMD110A200S, GMD110A260S, GMD110A320S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GMD110A140SMotor type: coreless | Peak force: 274 N | Continuous force: 91 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 24.04 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 0.83 kg | Assembly height x width: 40.9 x 102 mm
GMD110A200SMotor type: coreless | Peak force: 411 N | Continuous force: 137 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 36.05 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 1.24 kg | Assembly height x width: 40.9 x 102 mm
GMD110A260SMotor type: coreless | Peak force: 548 N | Continuous force: 182 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 48.07 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 1.65 kg | Assembly height x width: 40.9 x 102 mm
GMD110A320SMotor type: coreless | Peak force: 685 N | Continuous force: 228 N | Peak current: 11.4 Arms | Continuous current: 3.8 Arms | Force constant: 60.09 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 2.06 kg | Assembly height x width: 40.9 x 102 mm
