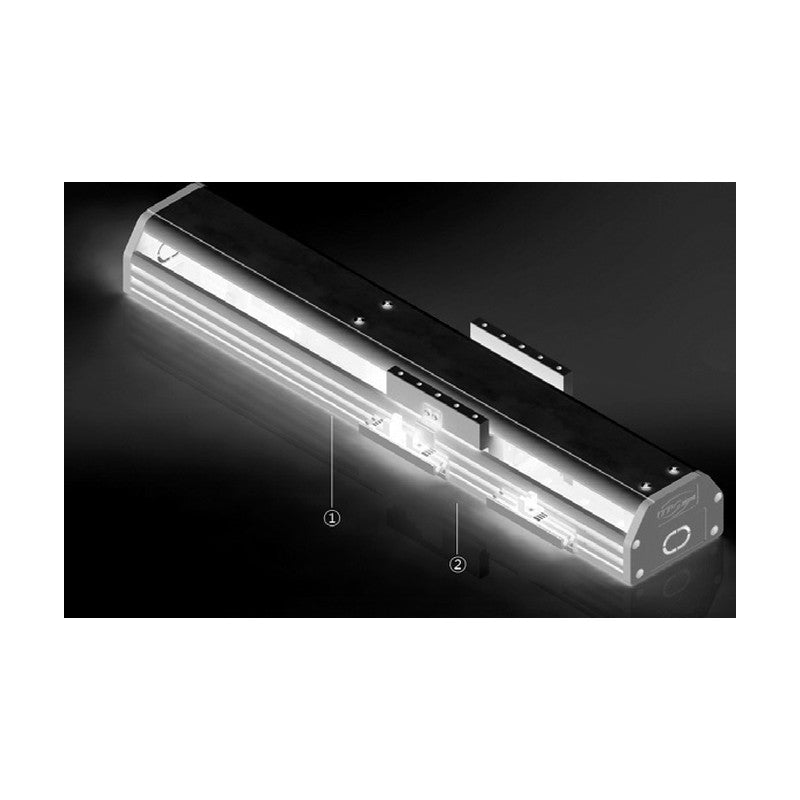

TPC TRS Ball Screw Linear Actuator (Sizes 160-260)

TPC TRS series LM guide and ball screw single-axis linear actuator, sizes 160-260, with rolled or ground ball screw and in-line or parallel servo motor bracket.

Key features

LM guide and ball screw single-axis actuator unit with compact, high-rigidity aluminium body; easy multi-axis combination
Order code: TRS + size - stroke - ball screw (L rolled / G ground, diameter and lead) - motor bracket; colour, sensor and special codes are optional suffixes
Motor brackets: in-line built-in type M1-M5 (coupling included, add B for brake motor, e.g. M2B) or parallel type PL/PR/PB; standard for Inovance, Mitsubishi and Yaskawa servo motors
Colour option: white standard, black (B) and Raydent-coated LM guide and/or ball screw (L, S, A, BL, BS, BA)
Sensor option C: photo sensors with standard socket (3 pcs) or CJ with 2 m cable socket; other quantities C2, CJ2
Repeatability +/-0.02 mm; strokes in 100 mm steps per the stroke table (other strokes on request)

Specifications

Type	Ball screw linear actuator, LM guide
Sizes	TRS160-TRS260
Repeatability	+/-0.02 mm
Max. speed	500-1000 mm/s depending on size and lead
Max. payload (horiz./vert.)	TRS50 10/3 kgf up to TRS260 160/100 kgf
Motor	Servo 100 W to 1 kW (Inovance, Mitsubishi, Yaskawa)
Options (not in code list)	Colour/Raydent, sensors C/CJ, brake B, special code
Source	TPC Mechatronics catalog TRS_Series(250710).pdf, p. 1-39

TRS160-100-L2010-M3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-100-L2010-M4		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-100-L2010-PL2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-100-L2010-PR2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-100-L2010-PB2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-100-L2010-PL3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-100-L2010-PR3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-100-L2010-PB3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-200-L2010-M3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-200-L2010-M4		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-200-L2010-PL2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-200-L2010-PR2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-200-L2010-PB2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-200-L2010-PL3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-200-L2010-PR3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-200-L2010-PB3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-300-L2010-M3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-300-L2010-M4		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-300-L2010-PL2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-300-L2010-PR2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-300-L2010-PB2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-300-L2010-PL3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-300-L2010-PR3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-300-L2010-PB3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-400-L2010-M3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-400-L2010-M4		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-400-L2010-PL2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-400-L2010-PR2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-400-L2010-PB2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-400-L2010-PL3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-400-L2010-PR3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-400-L2010-PB3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-500-L2010-M3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-500-L2010-M4		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-500-L2010-PL2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-500-L2010-PR2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-500-L2010-PB2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-500-L2010-PL3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-500-L2010-PR3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-500-L2010-PB3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-600-L2010-M3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-600-L2010-M4		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-600-L2010-PL2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-600-L2010-PR2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-600-L2010-PB2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-600-L2010-PL3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-600-L2010-PR3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-600-L2010-PB3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-700-L2010-M3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-700-L2010-M4		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-700-L2010-PL2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-700-L2010-PR2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-700-L2010-PB2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-700-L2010-PL3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-700-L2010-PR3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-700-L2010-PB3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-800-L2010-M3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-800-L2010-M4		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-800-L2010-PL2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-800-L2010-PR2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-800-L2010-PB2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-800-L2010-PL3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-800-L2010-PR3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-800-L2010-PB3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-900-L2010-M3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-900-L2010-M4		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-900-L2010-PL2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-900-L2010-PR2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-900-L2010-PB2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-900-L2010-PL3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-900-L2010-PR3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-900-L2010-PB3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1000-L2010-M3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-1000-L2010-M4		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-1000-L2010-PL2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1000-L2010-PR2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1000-L2010-PB2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1000-L2010-PL3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1000-L2010-PR3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1000-L2010-PB3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1100-L2010-M3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-1100-L2010-M4		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-1100-L2010-PL2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1100-L2010-PR2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1100-L2010-PB2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1100-L2010-PL3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1100-L2010-PR3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1100-L2010-PB3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1200-L2010-M3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-1200-L2010-M4		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-1200-L2010-PL2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1200-L2010-PR2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1200-L2010-PB2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1200-L2010-PL3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1200-L2010-PR3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1200-L2010-PB3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-100-L2020-M3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-100-L2020-M4		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-100-L2020-PL2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-100-L2020-PR2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-100-L2020-PB2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-100-L2020-PL3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-100-L2020-PR3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-100-L2020-PB3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-200-L2020-M3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-200-L2020-M4		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-200-L2020-PL2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-200-L2020-PR2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-200-L2020-PB2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-200-L2020-PL3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-200-L2020-PR3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-200-L2020-PB3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-300-L2020-M3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-300-L2020-M4		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-300-L2020-PL2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-300-L2020-PR2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-300-L2020-PB2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-300-L2020-PL3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-300-L2020-PR3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-300-L2020-PB3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-400-L2020-M3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-400-L2020-M4		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-400-L2020-PL2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-400-L2020-PR2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-400-L2020-PB2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-400-L2020-PL3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-400-L2020-PR3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-400-L2020-PB3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-500-L2020-M3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-500-L2020-M4		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-500-L2020-PL2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-500-L2020-PR2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-500-L2020-PB2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-500-L2020-PL3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-500-L2020-PR3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-500-L2020-PB3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-600-L2020-M3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-600-L2020-M4		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-600-L2020-PL2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-600-L2020-PR2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-600-L2020-PB2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-600-L2020-PL3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-600-L2020-PR3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-600-L2020-PB3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-700-L2020-M3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-700-L2020-M4		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-700-L2020-PL2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-700-L2020-PR2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-700-L2020-PB2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-700-L2020-PL3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-700-L2020-PR3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-700-L2020-PB3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-800-L2020-M3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-800-L2020-M4		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-800-L2020-PL2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-800-L2020-PR2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-800-L2020-PB2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-800-L2020-PL3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-800-L2020-PR3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-800-L2020-PB3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-900-L2020-M3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-900-L2020-M4		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-900-L2020-PL2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-900-L2020-PR2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-900-L2020-PB2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-900-L2020-PL3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-900-L2020-PR3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-900-L2020-PB3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1000-L2020-M3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-1000-L2020-M4		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-1000-L2020-PL2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1000-L2020-PR2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1000-L2020-PB2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1000-L2020-PL3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1000-L2020-PR3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1000-L2020-PB3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1100-L2020-M3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-1100-L2020-M4		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-1100-L2020-PL2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1100-L2020-PR2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1100-L2020-PB2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1100-L2020-PL3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1100-L2020-PR3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1100-L2020-PB3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1200-L2020-M3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-1200-L2020-M4		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-1200-L2020-PL2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1200-L2020-PR2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1200-L2020-PB2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1200-L2020-PL3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1200-L2020-PR3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1200-L2020-PB3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-100-G2010-M3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-100-G2010-M4		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-100-G2010-PL2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-100-G2010-PR2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-100-G2010-PB2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-100-G2010-PL3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-100-G2010-PR3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-100-G2010-PB3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-200-G2010-M3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-200-G2010-M4		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-200-G2010-PL2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-200-G2010-PR2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-200-G2010-PB2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-200-G2010-PL3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-200-G2010-PR3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-200-G2010-PB3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-300-G2010-M3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-300-G2010-M4		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-300-G2010-PL2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-300-G2010-PR2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-300-G2010-PB2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-300-G2010-PL3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-300-G2010-PR3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-300-G2010-PB3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-400-G2010-M3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-400-G2010-M4		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-400-G2010-PL2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-400-G2010-PR2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-400-G2010-PB2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-400-G2010-PL3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-400-G2010-PR3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-400-G2010-PB3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-500-G2010-M3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-500-G2010-M4		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-500-G2010-PL2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-500-G2010-PR2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-500-G2010-PB2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-500-G2010-PL3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-500-G2010-PR3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-500-G2010-PB3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-600-G2010-M3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-600-G2010-M4		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-600-G2010-PL2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-600-G2010-PR2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-600-G2010-PB2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-600-G2010-PL3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-600-G2010-PR3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-600-G2010-PB3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-700-G2010-M3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-700-G2010-M4		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-700-G2010-PL2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-700-G2010-PR2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-700-G2010-PB2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-700-G2010-PL3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-700-G2010-PR3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-700-G2010-PB3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-800-G2010-M3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-800-G2010-M4		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-800-G2010-PL2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-800-G2010-PR2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-800-G2010-PB2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-800-G2010-PL3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-800-G2010-PR3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-800-G2010-PB3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-900-G2010-M3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-900-G2010-M4		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-900-G2010-PL2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-900-G2010-PR2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-900-G2010-PB2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-900-G2010-PL3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-900-G2010-PR3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-900-G2010-PB3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1000-G2010-M3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-1000-G2010-M4		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-1000-G2010-PL2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1000-G2010-PR2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1000-G2010-PB2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1000-G2010-PL3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1000-G2010-PR3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1000-G2010-PB3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1100-G2010-M3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-1100-G2010-M4		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-1100-G2010-PL2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1100-G2010-PR2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1100-G2010-PB2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1100-G2010-PL3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1100-G2010-PR3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1100-G2010-PB3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1200-G2010-M3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS160-1200-G2010-M4		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS160-1200-G2010-PL2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1200-G2010-PR2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1200-G2010-PB2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1200-G2010-PL3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1200-G2010-PR3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1200-G2010-PB3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-100-G2020-M3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-100-G2020-M4		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-100-G2020-PL2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-100-G2020-PR2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-100-G2020-PB2		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-100-G2020-PL3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-100-G2020-PR3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-100-G2020-PB3		Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-200-G2020-M3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-200-G2020-M4		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-200-G2020-PL2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-200-G2020-PR2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-200-G2020-PB2		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-200-G2020-PL3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-200-G2020-PR3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-200-G2020-PB3		Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-300-G2020-M3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-300-G2020-M4		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-300-G2020-PL2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-300-G2020-PR2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-300-G2020-PB2		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-300-G2020-PL3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-300-G2020-PR3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-300-G2020-PB3		Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-400-G2020-M3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-400-G2020-M4		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-400-G2020-PL2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-400-G2020-PR2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-400-G2020-PB2		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-400-G2020-PL3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-400-G2020-PR3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-400-G2020-PB3		Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-500-G2020-M3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-500-G2020-M4		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-500-G2020-PL2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-500-G2020-PR2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-500-G2020-PB2		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-500-G2020-PL3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-500-G2020-PR3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-500-G2020-PB3		Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-600-G2020-M3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-600-G2020-M4		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-600-G2020-PL2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-600-G2020-PR2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-600-G2020-PB2		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-600-G2020-PL3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-600-G2020-PR3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-600-G2020-PB3		Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-700-G2020-M3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-700-G2020-M4		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-700-G2020-PL2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-700-G2020-PR2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-700-G2020-PB2		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-700-G2020-PL3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-700-G2020-PR3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-700-G2020-PB3		Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-800-G2020-M3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-800-G2020-M4		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-800-G2020-PL2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-800-G2020-PR2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-800-G2020-PB2		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-800-G2020-PL3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-800-G2020-PR3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-800-G2020-PB3		Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-900-G2020-M3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-900-G2020-M4		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-900-G2020-PL2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-900-G2020-PR2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-900-G2020-PB2		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-900-G2020-PL3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-900-G2020-PR3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-900-G2020-PB3		Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1000-G2020-M3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-1000-G2020-M4		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-1000-G2020-PL2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1000-G2020-PR2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1000-G2020-PB2		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1000-G2020-PL3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1000-G2020-PR3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1000-G2020-PB3		Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1100-G2020-M3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-1100-G2020-M4		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-1100-G2020-PL2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1100-G2020-PR2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1100-G2020-PB2		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1100-G2020-PL3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1100-G2020-PR3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1100-G2020-PB3		Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-1200-G2020-M3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS160-1200-G2020-M4		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS160-1200-G2020-PL2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS160-1200-G2020-PR2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS160-1200-G2020-PB2		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS160-1200-G2020-PL3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS160-1200-G2020-PR3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS160-1200-G2020-PB3		Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-100-L2010-M3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-100-L2010-M4		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-100-L2010-PL2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-100-L2010-PR2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-100-L2010-PB2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-100-L2010-PL3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-100-L2010-PR3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-100-L2010-PB3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-200-L2010-M3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-200-L2010-M4		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-200-L2010-PL2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-200-L2010-PR2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-200-L2010-PB2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-200-L2010-PL3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-200-L2010-PR3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-200-L2010-PB3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-300-L2010-M3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-300-L2010-M4		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-300-L2010-PL2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-300-L2010-PR2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-300-L2010-PB2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-300-L2010-PL3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-300-L2010-PR3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-300-L2010-PB3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-400-L2010-M3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-400-L2010-M4		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-400-L2010-PL2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-400-L2010-PR2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-400-L2010-PB2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-400-L2010-PL3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-400-L2010-PR3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-400-L2010-PB3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-500-L2010-M3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-500-L2010-M4		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-500-L2010-PL2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-500-L2010-PR2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-500-L2010-PB2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-500-L2010-PL3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-500-L2010-PR3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-500-L2010-PB3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-600-L2010-M3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-600-L2010-M4		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-600-L2010-PL2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-600-L2010-PR2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-600-L2010-PB2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-600-L2010-PL3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-600-L2010-PR3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-600-L2010-PB3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-700-L2010-M3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-700-L2010-M4		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-700-L2010-PL2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-700-L2010-PR2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-700-L2010-PB2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-700-L2010-PL3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-700-L2010-PR3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-700-L2010-PB3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-800-L2010-M3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-800-L2010-M4		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-800-L2010-PL2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-800-L2010-PR2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-800-L2010-PB2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-800-L2010-PL3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-800-L2010-PR3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-800-L2010-PB3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-900-L2010-M3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-900-L2010-M4		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-900-L2010-PL2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-900-L2010-PR2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-900-L2010-PB2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-900-L2010-PL3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-900-L2010-PR3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-900-L2010-PB3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1000-L2010-M3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-1000-L2010-M4		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-1000-L2010-PL2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1000-L2010-PR2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1000-L2010-PB2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1000-L2010-PL3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1000-L2010-PR3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1000-L2010-PB3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1100-L2010-M3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-1100-L2010-M4		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-1100-L2010-PL2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1100-L2010-PR2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1100-L2010-PB2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1100-L2010-PL3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1100-L2010-PR3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1100-L2010-PB3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1200-L2010-M3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-1200-L2010-M4		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-1200-L2010-PL2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1200-L2010-PR2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1200-L2010-PB2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1200-L2010-PL3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1200-L2010-PR3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1200-L2010-PB3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-100-L2020-M3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-100-L2020-M4		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-100-L2020-PL2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-100-L2020-PR2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-100-L2020-PB2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-100-L2020-PL3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-100-L2020-PR3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-100-L2020-PB3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-200-L2020-M3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-200-L2020-M4		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-200-L2020-PL2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-200-L2020-PR2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-200-L2020-PB2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-200-L2020-PL3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-200-L2020-PR3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-200-L2020-PB3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-300-L2020-M3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-300-L2020-M4		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-300-L2020-PL2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-300-L2020-PR2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-300-L2020-PB2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-300-L2020-PL3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-300-L2020-PR3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-300-L2020-PB3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-400-L2020-M3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-400-L2020-M4		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-400-L2020-PL2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-400-L2020-PR2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-400-L2020-PB2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-400-L2020-PL3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-400-L2020-PR3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-400-L2020-PB3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-500-L2020-M3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-500-L2020-M4		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-500-L2020-PL2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-500-L2020-PR2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-500-L2020-PB2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-500-L2020-PL3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-500-L2020-PR3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-500-L2020-PB3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-600-L2020-M3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-600-L2020-M4		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-600-L2020-PL2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-600-L2020-PR2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-600-L2020-PB2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-600-L2020-PL3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-600-L2020-PR3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-600-L2020-PB3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-700-L2020-M3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-700-L2020-M4		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-700-L2020-PL2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-700-L2020-PR2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-700-L2020-PB2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-700-L2020-PL3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-700-L2020-PR3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-700-L2020-PB3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-800-L2020-M3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-800-L2020-M4		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-800-L2020-PL2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-800-L2020-PR2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-800-L2020-PB2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-800-L2020-PL3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-800-L2020-PR3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-800-L2020-PB3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-900-L2020-M3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-900-L2020-M4		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-900-L2020-PL2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-900-L2020-PR2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-900-L2020-PB2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-900-L2020-PL3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-900-L2020-PR3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-900-L2020-PB3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1000-L2020-M3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-1000-L2020-M4		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-1000-L2020-PL2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1000-L2020-PR2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1000-L2020-PB2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1000-L2020-PL3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1000-L2020-PR3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1000-L2020-PB3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1100-L2020-M3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-1100-L2020-M4		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-1100-L2020-PL2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1100-L2020-PR2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1100-L2020-PB2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1100-L2020-PL3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1100-L2020-PR3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1100-L2020-PB3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1200-L2020-M3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-1200-L2020-M4		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-1200-L2020-PL2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1200-L2020-PR2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1200-L2020-PB2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1200-L2020-PL3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1200-L2020-PR3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1200-L2020-PB3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-100-G2010-M3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-100-G2010-M4		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-100-G2010-PL2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-100-G2010-PR2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-100-G2010-PB2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-100-G2010-PL3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-100-G2010-PR3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-100-G2010-PB3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-200-G2010-M3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-200-G2010-M4		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-200-G2010-PL2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-200-G2010-PR2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-200-G2010-PB2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-200-G2010-PL3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-200-G2010-PR3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-200-G2010-PB3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-300-G2010-M3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-300-G2010-M4		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-300-G2010-PL2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-300-G2010-PR2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-300-G2010-PB2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-300-G2010-PL3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-300-G2010-PR3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-300-G2010-PB3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-400-G2010-M3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-400-G2010-M4		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-400-G2010-PL2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-400-G2010-PR2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-400-G2010-PB2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-400-G2010-PL3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-400-G2010-PR3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-400-G2010-PB3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-500-G2010-M3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-500-G2010-M4		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-500-G2010-PL2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-500-G2010-PR2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-500-G2010-PB2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-500-G2010-PL3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-500-G2010-PR3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-500-G2010-PB3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-600-G2010-M3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-600-G2010-M4		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-600-G2010-PL2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-600-G2010-PR2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-600-G2010-PB2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-600-G2010-PL3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-600-G2010-PR3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-600-G2010-PB3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-700-G2010-M3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-700-G2010-M4		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-700-G2010-PL2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-700-G2010-PR2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-700-G2010-PB2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-700-G2010-PL3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-700-G2010-PR3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-700-G2010-PB3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-800-G2010-M3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-800-G2010-M4		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-800-G2010-PL2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-800-G2010-PR2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-800-G2010-PB2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-800-G2010-PL3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-800-G2010-PR3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-800-G2010-PB3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-900-G2010-M3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-900-G2010-M4		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-900-G2010-PL2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-900-G2010-PR2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-900-G2010-PB2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-900-G2010-PL3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-900-G2010-PR3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-900-G2010-PB3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1000-G2010-M3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-1000-G2010-M4		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-1000-G2010-PL2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1000-G2010-PR2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1000-G2010-PB2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1000-G2010-PL3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1000-G2010-PR3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1000-G2010-PB3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1100-G2010-M3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-1100-G2010-M4		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-1100-G2010-PL2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1100-G2010-PR2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1100-G2010-PB2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1100-G2010-PL3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1100-G2010-PR3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1100-G2010-PB3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1200-G2010-M3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
TRS180-1200-G2010-M4		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS180-1200-G2010-PL2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1200-G2010-PR2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1200-G2010-PB2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1200-G2010-PL3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1200-G2010-PR3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1200-G2010-PB3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-100-G2020-M3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-100-G2020-M4		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-100-G2020-PL2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-100-G2020-PR2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-100-G2020-PB2		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-100-G2020-PL3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-100-G2020-PR3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-100-G2020-PB3		Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-200-G2020-M3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-200-G2020-M4		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-200-G2020-PL2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-200-G2020-PR2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-200-G2020-PB2		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-200-G2020-PL3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-200-G2020-PR3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-200-G2020-PB3		Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-300-G2020-M3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-300-G2020-M4		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-300-G2020-PL2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-300-G2020-PR2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-300-G2020-PB2		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-300-G2020-PL3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-300-G2020-PR3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-300-G2020-PB3		Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-400-G2020-M3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-400-G2020-M4		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-400-G2020-PL2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-400-G2020-PR2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-400-G2020-PB2		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-400-G2020-PL3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-400-G2020-PR3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-400-G2020-PB3		Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-500-G2020-M3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-500-G2020-M4		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-500-G2020-PL2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-500-G2020-PR2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-500-G2020-PB2		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-500-G2020-PL3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-500-G2020-PR3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-500-G2020-PB3		Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-600-G2020-M3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-600-G2020-M4		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-600-G2020-PL2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-600-G2020-PR2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-600-G2020-PB2		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-600-G2020-PL3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-600-G2020-PR3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-600-G2020-PB3		Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-700-G2020-M3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-700-G2020-M4		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-700-G2020-PL2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-700-G2020-PR2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-700-G2020-PB2		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-700-G2020-PL3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-700-G2020-PR3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-700-G2020-PB3		Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-800-G2020-M3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-800-G2020-M4		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-800-G2020-PL2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-800-G2020-PR2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-800-G2020-PB2		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-800-G2020-PL3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-800-G2020-PR3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-800-G2020-PB3		Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-900-G2020-M3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-900-G2020-M4		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-900-G2020-PL2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-900-G2020-PR2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-900-G2020-PB2		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-900-G2020-PL3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-900-G2020-PR3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-900-G2020-PB3		Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1000-G2020-M3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-1000-G2020-M4		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-1000-G2020-PL2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1000-G2020-PR2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1000-G2020-PB2		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1000-G2020-PL3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1000-G2020-PR3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1000-G2020-PB3		Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1100-G2020-M3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-1100-G2020-M4		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-1100-G2020-PL2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1100-G2020-PR2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1100-G2020-PB2		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1100-G2020-PL3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1100-G2020-PR3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1100-G2020-PB3		Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS180-1200-G2020-M3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
TRS180-1200-G2020-M4		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS180-1200-G2020-PL2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS180-1200-G2020-PR2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS180-1200-G2020-PB2		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS180-1200-G2020-PL3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS180-1200-G2020-PR3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS180-1200-G2020-PB3		Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-100-L2010-M4		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-100-L2010-PL2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-100-L2010-PR2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-100-L2010-PB2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-100-L2010-PL3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-100-L2010-PR3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-100-L2010-PB3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-200-L2010-M4		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-200-L2010-PL2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-200-L2010-PR2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-200-L2010-PB2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-200-L2010-PL3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-200-L2010-PR3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-200-L2010-PB3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-300-L2010-M4		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-300-L2010-PL2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-300-L2010-PR2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-300-L2010-PB2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-300-L2010-PL3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-300-L2010-PR3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-300-L2010-PB3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-400-L2010-M4		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-400-L2010-PL2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-400-L2010-PR2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-400-L2010-PB2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-400-L2010-PL3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-400-L2010-PR3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-400-L2010-PB3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-500-L2010-M4		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-500-L2010-PL2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-500-L2010-PR2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-500-L2010-PB2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-500-L2010-PL3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-500-L2010-PR3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-500-L2010-PB3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-600-L2010-M4		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-600-L2010-PL2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-600-L2010-PR2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-600-L2010-PB2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-600-L2010-PL3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-600-L2010-PR3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-600-L2010-PB3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-700-L2010-M4		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-700-L2010-PL2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-700-L2010-PR2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-700-L2010-PB2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-700-L2010-PL3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-700-L2010-PR3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-700-L2010-PB3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-800-L2010-M4		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-800-L2010-PL2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-800-L2010-PR2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-800-L2010-PB2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-800-L2010-PL3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-800-L2010-PR3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-800-L2010-PB3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-900-L2010-M4		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-900-L2010-PL2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-900-L2010-PR2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-900-L2010-PB2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-900-L2010-PL3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-900-L2010-PR3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-900-L2010-PB3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1000-L2010-M4		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-1000-L2010-PL2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1000-L2010-PR2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1000-L2010-PB2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1000-L2010-PL3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1000-L2010-PR3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1000-L2010-PB3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1100-L2010-M4		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-1100-L2010-PL2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1100-L2010-PR2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1100-L2010-PB2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1100-L2010-PL3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1100-L2010-PR3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1100-L2010-PB3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1200-L2010-M4		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-1200-L2010-PL2		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1200-L2010-PR2		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1200-L2010-PB2		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1200-L2010-PL3		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1200-L2010-PR3		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1200-L2010-PB3		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-100-L2020-M4		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-100-L2020-PL2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-100-L2020-PR2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-100-L2020-PB2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-100-L2020-PL3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-100-L2020-PR3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-100-L2020-PB3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-200-L2020-M4		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-200-L2020-PL2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-200-L2020-PR2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-200-L2020-PB2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-200-L2020-PL3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-200-L2020-PR3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-200-L2020-PB3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-300-L2020-M4		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-300-L2020-PL2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-300-L2020-PR2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-300-L2020-PB2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-300-L2020-PL3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-300-L2020-PR3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-300-L2020-PB3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-400-L2020-M4		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-400-L2020-PL2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-400-L2020-PR2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-400-L2020-PB2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-400-L2020-PL3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-400-L2020-PR3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-400-L2020-PB3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-500-L2020-M4		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-500-L2020-PL2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-500-L2020-PR2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-500-L2020-PB2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-500-L2020-PL3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-500-L2020-PR3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-500-L2020-PB3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-600-L2020-M4		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-600-L2020-PL2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-600-L2020-PR2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-600-L2020-PB2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-600-L2020-PL3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-600-L2020-PR3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-600-L2020-PB3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-700-L2020-M4		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-700-L2020-PL2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-700-L2020-PR2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-700-L2020-PB2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-700-L2020-PL3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-700-L2020-PR3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-700-L2020-PB3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-800-L2020-M4		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-800-L2020-PL2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-800-L2020-PR2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-800-L2020-PB2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-800-L2020-PL3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-800-L2020-PR3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-800-L2020-PB3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-900-L2020-M4		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-900-L2020-PL2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-900-L2020-PR2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-900-L2020-PB2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-900-L2020-PL3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-900-L2020-PR3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-900-L2020-PB3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1000-L2020-M4		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-1000-L2020-PL2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1000-L2020-PR2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1000-L2020-PB2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1000-L2020-PL3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1000-L2020-PR3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1000-L2020-PB3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1100-L2020-M4		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-1100-L2020-PL2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1100-L2020-PR2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1100-L2020-PB2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1100-L2020-PL3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1100-L2020-PR3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1100-L2020-PB3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1200-L2020-M4		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-1200-L2020-PL2		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1200-L2020-PR2		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1200-L2020-PB2		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1200-L2020-PL3		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1200-L2020-PR3		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1200-L2020-PB3		Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-100-G2010-M4		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-100-G2010-PL2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-100-G2010-PR2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-100-G2010-PB2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-100-G2010-PL3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-100-G2010-PR3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-100-G2010-PB3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-200-G2010-M4		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-200-G2010-PL2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-200-G2010-PR2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-200-G2010-PB2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-200-G2010-PL3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-200-G2010-PR3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-200-G2010-PB3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-300-G2010-M4		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-300-G2010-PL2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-300-G2010-PR2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-300-G2010-PB2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-300-G2010-PL3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-300-G2010-PR3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-300-G2010-PB3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-400-G2010-M4		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-400-G2010-PL2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-400-G2010-PR2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-400-G2010-PB2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-400-G2010-PL3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-400-G2010-PR3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-400-G2010-PB3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-500-G2010-M4		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-500-G2010-PL2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-500-G2010-PR2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-500-G2010-PB2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-500-G2010-PL3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-500-G2010-PR3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-500-G2010-PB3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-600-G2010-M4		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-600-G2010-PL2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-600-G2010-PR2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-600-G2010-PB2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-600-G2010-PL3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-600-G2010-PR3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-600-G2010-PB3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-700-G2010-M4		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-700-G2010-PL2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-700-G2010-PR2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-700-G2010-PB2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-700-G2010-PL3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-700-G2010-PR3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-700-G2010-PB3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-800-G2010-M4		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-800-G2010-PL2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-800-G2010-PR2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-800-G2010-PB2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-800-G2010-PL3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-800-G2010-PR3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-800-G2010-PB3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-900-G2010-M4		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-900-G2010-PL2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-900-G2010-PR2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-900-G2010-PB2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-900-G2010-PL3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-900-G2010-PR3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-900-G2010-PB3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1000-G2010-M4		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-1000-G2010-PL2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1000-G2010-PR2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1000-G2010-PB2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1000-G2010-PL3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1000-G2010-PR3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1000-G2010-PB3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1100-G2010-M4		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
TRS210-1100-G2010-PL2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1100-G2010-PR2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1100-G2010-PB2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1100-G2010-PL3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1100-G2010-PR3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1100-G2010-PB3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-100-G2020-M4		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-100-G2020-PL2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-100-G2020-PR2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-100-G2020-PB2		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-100-G2020-PL3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-100-G2020-PR3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-100-G2020-PB3		Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-200-G2020-M4		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-200-G2020-PL2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-200-G2020-PR2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-200-G2020-PB2		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-200-G2020-PL3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-200-G2020-PR3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-200-G2020-PB3		Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-300-G2020-M4		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-300-G2020-PL2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-300-G2020-PR2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-300-G2020-PB2		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-300-G2020-PL3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-300-G2020-PR3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-300-G2020-PB3		Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-400-G2020-M4		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-400-G2020-PL2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-400-G2020-PR2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-400-G2020-PB2		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-400-G2020-PL3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-400-G2020-PR3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-400-G2020-PB3		Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-500-G2020-M4		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-500-G2020-PL2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-500-G2020-PR2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-500-G2020-PB2		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-500-G2020-PL3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-500-G2020-PR3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-500-G2020-PB3		Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-600-G2020-M4		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-600-G2020-PL2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-600-G2020-PR2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-600-G2020-PB2		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-600-G2020-PL3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-600-G2020-PR3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-600-G2020-PB3		Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-700-G2020-M4		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-700-G2020-PL2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-700-G2020-PR2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-700-G2020-PB2		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-700-G2020-PL3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-700-G2020-PR3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-700-G2020-PB3		Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-800-G2020-M4		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-800-G2020-PL2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-800-G2020-PR2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-800-G2020-PB2		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-800-G2020-PL3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-800-G2020-PR3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-800-G2020-PB3		Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-900-G2020-M4		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-900-G2020-PL2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-900-G2020-PR2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-900-G2020-PB2		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-900-G2020-PL3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-900-G2020-PR3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-900-G2020-PB3		Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1000-G2020-M4		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-1000-G2020-PL2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1000-G2020-PR2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1000-G2020-PB2		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1000-G2020-PL3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1000-G2020-PR3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1000-G2020-PB3		Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS210-1100-G2020-M4		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
TRS210-1100-G2020-PL2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
TRS210-1100-G2020-PR2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
TRS210-1100-G2020-PB2		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
TRS210-1100-G2020-PL3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
TRS210-1100-G2020-PR3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
TRS210-1100-G2020-PB3		Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-100-L3232-M4		Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-100-L3232-M5		Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-100-L3232-PL3		Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-100-L3232-PR3		Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-100-L3232-PB3		Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-200-L3232-M4		Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-200-L3232-M5		Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-200-L3232-PL3		Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-200-L3232-PR3		Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-200-L3232-PB3		Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-300-L3232-M4		Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-300-L3232-M5		Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-300-L3232-PL3		Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-300-L3232-PR3		Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-300-L3232-PB3		Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-400-L3232-M4		Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-400-L3232-M5		Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-400-L3232-PL3		Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-400-L3232-PR3		Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-400-L3232-PB3		Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-500-L3232-M4		Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-500-L3232-M5		Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-500-L3232-PL3		Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-500-L3232-PR3		Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-500-L3232-PB3		Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-600-L3232-M4		Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-600-L3232-M5		Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-600-L3232-PL3		Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-600-L3232-PR3		Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-600-L3232-PB3		Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-700-L3232-M4		Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-700-L3232-M5		Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-700-L3232-PL3		Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-700-L3232-PR3		Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-700-L3232-PB3		Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-800-L3232-M4		Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-800-L3232-M5		Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-800-L3232-PL3		Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-800-L3232-PR3		Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-800-L3232-PB3		Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-900-L3232-M4		Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-900-L3232-M5		Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-900-L3232-PL3		Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-900-L3232-PR3		Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-900-L3232-PB3		Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-1000-L3232-M4		Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-1000-L3232-M5		Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-1000-L3232-PL3		Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-1000-L3232-PR3		Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-1000-L3232-PB3		Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-1100-L3232-M4		Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-1100-L3232-M5		Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-1100-L3232-PL3		Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-1100-L3232-PR3		Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-1100-L3232-PB3		Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-1200-L3232-M4		Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-1200-L3232-M5		Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-1200-L3232-PL3		Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-1200-L3232-PR3		Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-1200-L3232-PB3		Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-1300-L3232-M4		Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-1300-L3232-M5		Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-1300-L3232-PL3		Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-1300-L3232-PR3		Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-1300-L3232-PB3		Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS260-1400-L3232-M4		Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
TRS260-1400-L3232-M5		Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
TRS260-1400-L3232-PL3		Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
TRS260-1400-L3232-PR3		Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
TRS260-1400-L3232-PB3		Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
TRS160-M		Legacy code, catalog model TRS 160-M \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)
TRS160-PL		Legacy code, catalog model TRS 160-PL \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PL
TRS160-PR		Legacy code, catalog model TRS 160-PR \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PR
TRS160-PB		Legacy code, catalog model TRS 160-PB \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PB
TRS180-M		Legacy code, catalog model TRS 180-M \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)
TRS180-PR		Legacy code, catalog model TRS 180-PR \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PR
TRS180-PL		Legacy code, catalog model TRS 180-PL \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PL
TRS180-PB		Legacy code, catalog model TRS 180-PB \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PB
TRS210-M		Legacy code, catalog model TRS 210-M \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)
TRS210-PR		Legacy code, catalog model TRS 210-PR \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PR
TRS210-PL		Legacy code, catalog model TRS 210-PL \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PL
TRS210-PB		Legacy code, catalog model TRS 210-PB \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PB
TRS260-M		Legacy code, catalog model TRS 260-M \| Size: TRS260 \| Stroke: 100-1400 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)

Ball Screw Linear ActuatorsTPC Mechatronics

1173 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC TRS Ball Screw Linear Actuator (Sizes 160-260)

Brand TPC Mechatronics·Ball Screw Linear Actuators

Available part numbers (1173)

TRS160-100-L2010-M3, TRS160-100-L2010-M4, TRS160-100-L2010-PL2, TRS160-100-L2010-PR2, TRS160-100-L2010-PB2, TRS160-100-L2010-PL3, TRS160-100-L2010-PR3, TRS160-100-L2010-PB3, TRS160-200-L2010-M3, TRS160-200-L2010-M4 + 1163 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TRS160-100-L2010-M3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-100-L2010-M4	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-100-L2010-PL2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-100-L2010-PR2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-100-L2010-PB2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-100-L2010-PL3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-100-L2010-PR3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-100-L2010-PB3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-200-L2010-M3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-200-L2010-M4	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-200-L2010-PL2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-200-L2010-PR2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-200-L2010-PB2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-200-L2010-PL3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-200-L2010-PR3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-200-L2010-PB3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-300-L2010-M3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-300-L2010-M4	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-300-L2010-PL2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-300-L2010-PR2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-300-L2010-PB2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-300-L2010-PL3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-300-L2010-PR3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-300-L2010-PB3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-400-L2010-M3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-400-L2010-M4	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-400-L2010-PL2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-400-L2010-PR2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-400-L2010-PB2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-400-L2010-PL3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-400-L2010-PR3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-400-L2010-PB3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-500-L2010-M3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-500-L2010-M4	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-500-L2010-PL2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-500-L2010-PR2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-500-L2010-PB2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-500-L2010-PL3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-500-L2010-PR3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-500-L2010-PB3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-600-L2010-M3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-600-L2010-M4	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-600-L2010-PL2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-600-L2010-PR2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-600-L2010-PB2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-600-L2010-PL3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-600-L2010-PR3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-600-L2010-PB3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-700-L2010-M3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-700-L2010-M4	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-700-L2010-PL2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-700-L2010-PR2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-700-L2010-PB2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-700-L2010-PL3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-700-L2010-PR3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-700-L2010-PB3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-800-L2010-M3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-800-L2010-M4	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-800-L2010-PL2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-800-L2010-PR2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-800-L2010-PB2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-800-L2010-PL3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-800-L2010-PR3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-800-L2010-PB3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-900-L2010-M3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-900-L2010-M4	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-900-L2010-PL2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-900-L2010-PR2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-900-L2010-PB2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-900-L2010-PL3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-900-L2010-PR3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-900-L2010-PB3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1000-L2010-M3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-1000-L2010-M4	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-1000-L2010-PL2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1000-L2010-PR2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1000-L2010-PB2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1000-L2010-PL3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1000-L2010-PR3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1000-L2010-PB3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1100-L2010-M3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-1100-L2010-M4	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-1100-L2010-PL2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1100-L2010-PR2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1100-L2010-PB2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1100-L2010-PL3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1100-L2010-PR3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1100-L2010-PB3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1200-L2010-M3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-1200-L2010-M4	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-1200-L2010-PL2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1200-L2010-PR2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1200-L2010-PB2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1200-L2010-PL3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1200-L2010-PR3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1200-L2010-PB3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-100-L2020-M3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-100-L2020-M4	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-100-L2020-PL2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-100-L2020-PR2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-100-L2020-PB2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-100-L2020-PL3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-100-L2020-PR3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-100-L2020-PB3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-200-L2020-M3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-200-L2020-M4	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-200-L2020-PL2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-200-L2020-PR2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-200-L2020-PB2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-200-L2020-PL3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-200-L2020-PR3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-200-L2020-PB3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-300-L2020-M3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-300-L2020-M4	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-300-L2020-PL2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-300-L2020-PR2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-300-L2020-PB2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-300-L2020-PL3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-300-L2020-PR3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-300-L2020-PB3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-400-L2020-M3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-400-L2020-M4	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-400-L2020-PL2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-400-L2020-PR2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-400-L2020-PB2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-400-L2020-PL3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-400-L2020-PR3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-400-L2020-PB3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-500-L2020-M3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-500-L2020-M4	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-500-L2020-PL2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-500-L2020-PR2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-500-L2020-PB2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-500-L2020-PL3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-500-L2020-PR3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-500-L2020-PB3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-600-L2020-M3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-600-L2020-M4	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-600-L2020-PL2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-600-L2020-PR2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-600-L2020-PB2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-600-L2020-PL3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-600-L2020-PR3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-600-L2020-PB3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-700-L2020-M3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-700-L2020-M4	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-700-L2020-PL2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-700-L2020-PR2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-700-L2020-PB2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-700-L2020-PL3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-700-L2020-PR3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-700-L2020-PB3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-800-L2020-M3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-800-L2020-M4	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-800-L2020-PL2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-800-L2020-PR2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-800-L2020-PB2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-800-L2020-PL3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-800-L2020-PR3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-800-L2020-PB3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-900-L2020-M3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-900-L2020-M4	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-900-L2020-PL2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-900-L2020-PR2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-900-L2020-PB2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-900-L2020-PL3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-900-L2020-PR3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-900-L2020-PB3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1000-L2020-M3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-1000-L2020-M4	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-1000-L2020-PL2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1000-L2020-PR2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1000-L2020-PB2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1000-L2020-PL3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1000-L2020-PR3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1000-L2020-PB3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1100-L2020-M3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-1100-L2020-M4	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-1100-L2020-PL2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1100-L2020-PR2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1100-L2020-PB2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1100-L2020-PL3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1100-L2020-PR3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1100-L2020-PB3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1200-L2020-M3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-1200-L2020-M4	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-1200-L2020-PL2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1200-L2020-PR2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1200-L2020-PB2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1200-L2020-PL3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1200-L2020-PR3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1200-L2020-PB3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-100-G2010-M3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-100-G2010-M4	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-100-G2010-PL2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-100-G2010-PR2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-100-G2010-PB2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-100-G2010-PL3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-100-G2010-PR3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-100-G2010-PB3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-200-G2010-M3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-200-G2010-M4	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-200-G2010-PL2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-200-G2010-PR2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-200-G2010-PB2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-200-G2010-PL3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-200-G2010-PR3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-200-G2010-PB3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-300-G2010-M3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-300-G2010-M4	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-300-G2010-PL2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-300-G2010-PR2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-300-G2010-PB2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-300-G2010-PL3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-300-G2010-PR3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-300-G2010-PB3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-400-G2010-M3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-400-G2010-M4	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-400-G2010-PL2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-400-G2010-PR2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-400-G2010-PB2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-400-G2010-PL3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-400-G2010-PR3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-400-G2010-PB3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-500-G2010-M3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-500-G2010-M4	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-500-G2010-PL2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-500-G2010-PR2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-500-G2010-PB2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-500-G2010-PL3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-500-G2010-PR3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-500-G2010-PB3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-600-G2010-M3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-600-G2010-M4	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-600-G2010-PL2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-600-G2010-PR2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-600-G2010-PB2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-600-G2010-PL3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-600-G2010-PR3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-600-G2010-PB3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-700-G2010-M3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-700-G2010-M4	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-700-G2010-PL2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-700-G2010-PR2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-700-G2010-PB2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-700-G2010-PL3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-700-G2010-PR3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-700-G2010-PB3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-800-G2010-M3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-800-G2010-M4	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-800-G2010-PL2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-800-G2010-PR2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-800-G2010-PB2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-800-G2010-PL3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-800-G2010-PR3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-800-G2010-PB3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-900-G2010-M3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-900-G2010-M4	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-900-G2010-PL2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-900-G2010-PR2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-900-G2010-PB2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-900-G2010-PL3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-900-G2010-PR3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-900-G2010-PB3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1000-G2010-M3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-1000-G2010-M4	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-1000-G2010-PL2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1000-G2010-PR2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1000-G2010-PB2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1000-G2010-PL3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1000-G2010-PR3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1000-G2010-PB3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1100-G2010-M3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-1100-G2010-M4	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-1100-G2010-PL2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1100-G2010-PR2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1100-G2010-PB2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1100-G2010-PL3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1100-G2010-PR3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1100-G2010-PB3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1200-G2010-M3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS160-1200-G2010-M4	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS160-1200-G2010-PL2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1200-G2010-PR2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1200-G2010-PB2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1200-G2010-PL3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1200-G2010-PR3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1200-G2010-PB3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-100-G2020-M3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-100-G2020-M4	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-100-G2020-PL2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-100-G2020-PR2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-100-G2020-PB2	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-100-G2020-PL3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-100-G2020-PR3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-100-G2020-PB3	Size: TRS160 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-200-G2020-M3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-200-G2020-M4	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-200-G2020-PL2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-200-G2020-PR2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-200-G2020-PB2	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-200-G2020-PL3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-200-G2020-PR3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-200-G2020-PB3	Size: TRS160 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-300-G2020-M3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-300-G2020-M4	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-300-G2020-PL2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-300-G2020-PR2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-300-G2020-PB2	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-300-G2020-PL3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-300-G2020-PR3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-300-G2020-PB3	Size: TRS160 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-400-G2020-M3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-400-G2020-M4	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-400-G2020-PL2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-400-G2020-PR2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-400-G2020-PB2	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-400-G2020-PL3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-400-G2020-PR3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-400-G2020-PB3	Size: TRS160 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-500-G2020-M3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-500-G2020-M4	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-500-G2020-PL2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-500-G2020-PR2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-500-G2020-PB2	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-500-G2020-PL3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-500-G2020-PR3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-500-G2020-PB3	Size: TRS160 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-600-G2020-M3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-600-G2020-M4	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-600-G2020-PL2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-600-G2020-PR2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-600-G2020-PB2	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-600-G2020-PL3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-600-G2020-PR3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-600-G2020-PB3	Size: TRS160 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-700-G2020-M3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-700-G2020-M4	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-700-G2020-PL2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-700-G2020-PR2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-700-G2020-PB2	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-700-G2020-PL3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-700-G2020-PR3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-700-G2020-PB3	Size: TRS160 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-800-G2020-M3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-800-G2020-M4	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-800-G2020-PL2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-800-G2020-PR2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-800-G2020-PB2	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-800-G2020-PL3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-800-G2020-PR3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-800-G2020-PB3	Size: TRS160 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-900-G2020-M3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-900-G2020-M4	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-900-G2020-PL2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-900-G2020-PR2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-900-G2020-PB2	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-900-G2020-PL3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-900-G2020-PR3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-900-G2020-PB3	Size: TRS160 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1000-G2020-M3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-1000-G2020-M4	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-1000-G2020-PL2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1000-G2020-PR2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1000-G2020-PB2	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1000-G2020-PL3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1000-G2020-PR3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1000-G2020-PB3	Size: TRS160 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1100-G2020-M3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-1100-G2020-M4	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-1100-G2020-PL2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1100-G2020-PR2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1100-G2020-PB2	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1100-G2020-PL3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1100-G2020-PR3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1100-G2020-PB3	Size: TRS160 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-1200-G2020-M3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS160-1200-G2020-M4	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS160-1200-G2020-PL2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS160-1200-G2020-PR2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS160-1200-G2020-PB2	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS160-1200-G2020-PL3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS160-1200-G2020-PR3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS160-1200-G2020-PB3	Size: TRS160 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-100-L2010-M3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-100-L2010-M4	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-100-L2010-PL2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-100-L2010-PR2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-100-L2010-PB2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-100-L2010-PL3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-100-L2010-PR3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-100-L2010-PB3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-200-L2010-M3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-200-L2010-M4	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-200-L2010-PL2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-200-L2010-PR2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-200-L2010-PB2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-200-L2010-PL3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-200-L2010-PR3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-200-L2010-PB3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-300-L2010-M3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-300-L2010-M4	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-300-L2010-PL2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-300-L2010-PR2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-300-L2010-PB2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-300-L2010-PL3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-300-L2010-PR3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-300-L2010-PB3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-400-L2010-M3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-400-L2010-M4	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-400-L2010-PL2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-400-L2010-PR2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-400-L2010-PB2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-400-L2010-PL3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-400-L2010-PR3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-400-L2010-PB3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-500-L2010-M3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-500-L2010-M4	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-500-L2010-PL2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-500-L2010-PR2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-500-L2010-PB2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-500-L2010-PL3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-500-L2010-PR3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-500-L2010-PB3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-600-L2010-M3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-600-L2010-M4	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-600-L2010-PL2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-600-L2010-PR2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-600-L2010-PB2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-600-L2010-PL3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-600-L2010-PR3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-600-L2010-PB3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-700-L2010-M3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-700-L2010-M4	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-700-L2010-PL2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-700-L2010-PR2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-700-L2010-PB2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-700-L2010-PL3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-700-L2010-PR3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-700-L2010-PB3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-800-L2010-M3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-800-L2010-M4	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-800-L2010-PL2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-800-L2010-PR2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-800-L2010-PB2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-800-L2010-PL3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-800-L2010-PR3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-800-L2010-PB3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-900-L2010-M3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-900-L2010-M4	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-900-L2010-PL2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-900-L2010-PR2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-900-L2010-PB2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-900-L2010-PL3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-900-L2010-PR3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-900-L2010-PB3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1000-L2010-M3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-1000-L2010-M4	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-1000-L2010-PL2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1000-L2010-PR2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1000-L2010-PB2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1000-L2010-PL3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1000-L2010-PR3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1000-L2010-PB3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1100-L2010-M3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-1100-L2010-M4	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-1100-L2010-PL2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1100-L2010-PR2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1100-L2010-PB2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1100-L2010-PL3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1100-L2010-PR3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1100-L2010-PB3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1200-L2010-M3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-1200-L2010-M4	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-1200-L2010-PL2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1200-L2010-PR2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1200-L2010-PB2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1200-L2010-PL3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1200-L2010-PR3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1200-L2010-PB3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-100-L2020-M3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-100-L2020-M4	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-100-L2020-PL2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-100-L2020-PR2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-100-L2020-PB2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-100-L2020-PL3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-100-L2020-PR3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-100-L2020-PB3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-200-L2020-M3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-200-L2020-M4	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-200-L2020-PL2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-200-L2020-PR2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-200-L2020-PB2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-200-L2020-PL3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-200-L2020-PR3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-200-L2020-PB3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-300-L2020-M3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-300-L2020-M4	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-300-L2020-PL2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-300-L2020-PR2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-300-L2020-PB2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-300-L2020-PL3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-300-L2020-PR3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-300-L2020-PB3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-400-L2020-M3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-400-L2020-M4	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-400-L2020-PL2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-400-L2020-PR2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-400-L2020-PB2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-400-L2020-PL3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-400-L2020-PR3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-400-L2020-PB3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-500-L2020-M3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-500-L2020-M4	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-500-L2020-PL2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-500-L2020-PR2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-500-L2020-PB2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-500-L2020-PL3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-500-L2020-PR3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-500-L2020-PB3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-600-L2020-M3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-600-L2020-M4	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-600-L2020-PL2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-600-L2020-PR2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-600-L2020-PB2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-600-L2020-PL3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-600-L2020-PR3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-600-L2020-PB3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-700-L2020-M3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-700-L2020-M4	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-700-L2020-PL2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-700-L2020-PR2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-700-L2020-PB2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-700-L2020-PL3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-700-L2020-PR3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-700-L2020-PB3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-800-L2020-M3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-800-L2020-M4	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-800-L2020-PL2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-800-L2020-PR2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-800-L2020-PB2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-800-L2020-PL3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-800-L2020-PR3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-800-L2020-PB3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-900-L2020-M3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-900-L2020-M4	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-900-L2020-PL2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-900-L2020-PR2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-900-L2020-PB2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-900-L2020-PL3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-900-L2020-PR3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-900-L2020-PB3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1000-L2020-M3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-1000-L2020-M4	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-1000-L2020-PL2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1000-L2020-PR2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1000-L2020-PB2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1000-L2020-PL3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1000-L2020-PR3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1000-L2020-PB3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1100-L2020-M3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-1100-L2020-M4	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-1100-L2020-PL2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1100-L2020-PR2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1100-L2020-PB2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1100-L2020-PL3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1100-L2020-PR3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1100-L2020-PB3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1200-L2020-M3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-1200-L2020-M4	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-1200-L2020-PL2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1200-L2020-PR2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1200-L2020-PB2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1200-L2020-PL3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1200-L2020-PR3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1200-L2020-PB3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-100-G2010-M3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-100-G2010-M4	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-100-G2010-PL2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-100-G2010-PR2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-100-G2010-PB2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-100-G2010-PL3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-100-G2010-PR3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-100-G2010-PB3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-200-G2010-M3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-200-G2010-M4	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-200-G2010-PL2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-200-G2010-PR2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-200-G2010-PB2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-200-G2010-PL3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-200-G2010-PR3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-200-G2010-PB3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-300-G2010-M3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-300-G2010-M4	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-300-G2010-PL2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-300-G2010-PR2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-300-G2010-PB2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-300-G2010-PL3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-300-G2010-PR3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-300-G2010-PB3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-400-G2010-M3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-400-G2010-M4	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-400-G2010-PL2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-400-G2010-PR2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-400-G2010-PB2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-400-G2010-PL3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-400-G2010-PR3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-400-G2010-PB3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-500-G2010-M3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-500-G2010-M4	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-500-G2010-PL2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-500-G2010-PR2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-500-G2010-PB2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-500-G2010-PL3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-500-G2010-PR3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-500-G2010-PB3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-600-G2010-M3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-600-G2010-M4	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-600-G2010-PL2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-600-G2010-PR2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-600-G2010-PB2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-600-G2010-PL3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-600-G2010-PR3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-600-G2010-PB3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-700-G2010-M3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-700-G2010-M4	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-700-G2010-PL2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-700-G2010-PR2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-700-G2010-PB2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-700-G2010-PL3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-700-G2010-PR3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-700-G2010-PB3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-800-G2010-M3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-800-G2010-M4	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-800-G2010-PL2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-800-G2010-PR2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-800-G2010-PB2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-800-G2010-PL3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-800-G2010-PR3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-800-G2010-PB3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-900-G2010-M3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-900-G2010-M4	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-900-G2010-PL2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-900-G2010-PR2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-900-G2010-PB2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-900-G2010-PL3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-900-G2010-PR3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-900-G2010-PB3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1000-G2010-M3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-1000-G2010-M4	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-1000-G2010-PL2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1000-G2010-PR2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1000-G2010-PB2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1000-G2010-PL3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1000-G2010-PR3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1000-G2010-PB3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1100-G2010-M3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-1100-G2010-M4	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-1100-G2010-PL2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1100-G2010-PR2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1100-G2010-PB2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1100-G2010-PL3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1100-G2010-PR3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1100-G2010-PB3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1200-G2010-M3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 400W
	TRS180-1200-G2010-M4	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS180-1200-G2010-PL2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1200-G2010-PR2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1200-G2010-PB2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1200-G2010-PL3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1200-G2010-PR3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1200-G2010-PB3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-100-G2020-M3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-100-G2020-M4	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-100-G2020-PL2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-100-G2020-PR2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-100-G2020-PB2	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-100-G2020-PL3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-100-G2020-PR3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-100-G2020-PB3	Size: TRS180 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-200-G2020-M3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-200-G2020-M4	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-200-G2020-PL2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-200-G2020-PR2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-200-G2020-PB2	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-200-G2020-PL3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-200-G2020-PR3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-200-G2020-PB3	Size: TRS180 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-300-G2020-M3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-300-G2020-M4	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-300-G2020-PL2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-300-G2020-PR2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-300-G2020-PB2	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-300-G2020-PL3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-300-G2020-PR3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-300-G2020-PB3	Size: TRS180 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-400-G2020-M3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-400-G2020-M4	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-400-G2020-PL2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-400-G2020-PR2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-400-G2020-PB2	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-400-G2020-PL3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-400-G2020-PR3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-400-G2020-PB3	Size: TRS180 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-500-G2020-M3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-500-G2020-M4	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-500-G2020-PL2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-500-G2020-PR2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-500-G2020-PB2	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-500-G2020-PL3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-500-G2020-PR3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-500-G2020-PB3	Size: TRS180 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-600-G2020-M3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-600-G2020-M4	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-600-G2020-PL2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-600-G2020-PR2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-600-G2020-PB2	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-600-G2020-PL3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-600-G2020-PR3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-600-G2020-PB3	Size: TRS180 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-700-G2020-M3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-700-G2020-M4	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-700-G2020-PL2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-700-G2020-PR2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-700-G2020-PB2	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-700-G2020-PL3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-700-G2020-PR3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-700-G2020-PB3	Size: TRS180 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-800-G2020-M3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-800-G2020-M4	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-800-G2020-PL2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-800-G2020-PR2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-800-G2020-PB2	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-800-G2020-PL3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-800-G2020-PR3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-800-G2020-PB3	Size: TRS180 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-900-G2020-M3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-900-G2020-M4	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-900-G2020-PL2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-900-G2020-PR2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-900-G2020-PB2	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-900-G2020-PL3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-900-G2020-PR3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-900-G2020-PB3	Size: TRS180 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1000-G2020-M3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-1000-G2020-M4	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-1000-G2020-PL2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1000-G2020-PR2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1000-G2020-PB2	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1000-G2020-PL3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1000-G2020-PR3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1000-G2020-PB3	Size: TRS180 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1100-G2020-M3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-1100-G2020-M4	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-1100-G2020-PL2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1100-G2020-PR2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1100-G2020-PB2	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1100-G2020-PL3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1100-G2020-PR3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1100-G2020-PB3	Size: TRS180 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS180-1200-G2020-M3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 400W
	TRS180-1200-G2020-M4	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS180-1200-G2020-PL2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS180-1200-G2020-PR2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS180-1200-G2020-PB2	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS180-1200-G2020-PL3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS180-1200-G2020-PR3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS180-1200-G2020-PB3	Size: TRS180 \| Stroke: 1200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-100-L2010-M4	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-100-L2010-PL2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-100-L2010-PR2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-100-L2010-PB2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-100-L2010-PL3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-100-L2010-PR3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-100-L2010-PB3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-200-L2010-M4	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-200-L2010-PL2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-200-L2010-PR2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-200-L2010-PB2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-200-L2010-PL3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-200-L2010-PR3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-200-L2010-PB3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-300-L2010-M4	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-300-L2010-PL2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-300-L2010-PR2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-300-L2010-PB2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-300-L2010-PL3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-300-L2010-PR3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-300-L2010-PB3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-400-L2010-M4	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-400-L2010-PL2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-400-L2010-PR2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-400-L2010-PB2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-400-L2010-PL3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-400-L2010-PR3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-400-L2010-PB3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-500-L2010-M4	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-500-L2010-PL2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-500-L2010-PR2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-500-L2010-PB2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-500-L2010-PL3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-500-L2010-PR3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-500-L2010-PB3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-600-L2010-M4	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-600-L2010-PL2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-600-L2010-PR2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-600-L2010-PB2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-600-L2010-PL3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-600-L2010-PR3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-600-L2010-PB3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-700-L2010-M4	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-700-L2010-PL2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-700-L2010-PR2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-700-L2010-PB2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-700-L2010-PL3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-700-L2010-PR3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-700-L2010-PB3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-800-L2010-M4	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-800-L2010-PL2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-800-L2010-PR2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-800-L2010-PB2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-800-L2010-PL3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-800-L2010-PR3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-800-L2010-PB3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-900-L2010-M4	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-900-L2010-PL2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-900-L2010-PR2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-900-L2010-PB2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-900-L2010-PL3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-900-L2010-PR3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-900-L2010-PB3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1000-L2010-M4	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-1000-L2010-PL2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1000-L2010-PR2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1000-L2010-PB2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1000-L2010-PL3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1000-L2010-PR3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1000-L2010-PB3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1100-L2010-M4	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-1100-L2010-PL2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1100-L2010-PR2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1100-L2010-PB2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1100-L2010-PL3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1100-L2010-PR3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1100-L2010-PB3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1200-L2010-M4	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-1200-L2010-PL2	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1200-L2010-PR2	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1200-L2010-PB2	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1200-L2010-PL3	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1200-L2010-PR3	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1200-L2010-PB3	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-100-L2020-M4	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-100-L2020-PL2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-100-L2020-PR2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-100-L2020-PB2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-100-L2020-PL3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-100-L2020-PR3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-100-L2020-PB3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-200-L2020-M4	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-200-L2020-PL2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-200-L2020-PR2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-200-L2020-PB2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-200-L2020-PL3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-200-L2020-PR3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-200-L2020-PB3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-300-L2020-M4	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-300-L2020-PL2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-300-L2020-PR2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-300-L2020-PB2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-300-L2020-PL3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-300-L2020-PR3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-300-L2020-PB3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-400-L2020-M4	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-400-L2020-PL2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-400-L2020-PR2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-400-L2020-PB2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-400-L2020-PL3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-400-L2020-PR3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-400-L2020-PB3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-500-L2020-M4	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-500-L2020-PL2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-500-L2020-PR2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-500-L2020-PB2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-500-L2020-PL3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-500-L2020-PR3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-500-L2020-PB3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-600-L2020-M4	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-600-L2020-PL2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-600-L2020-PR2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-600-L2020-PB2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-600-L2020-PL3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-600-L2020-PR3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-600-L2020-PB3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-700-L2020-M4	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-700-L2020-PL2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-700-L2020-PR2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-700-L2020-PB2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-700-L2020-PL3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-700-L2020-PR3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-700-L2020-PB3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-800-L2020-M4	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-800-L2020-PL2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-800-L2020-PR2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-800-L2020-PB2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-800-L2020-PL3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-800-L2020-PR3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-800-L2020-PB3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-900-L2020-M4	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-900-L2020-PL2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-900-L2020-PR2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-900-L2020-PB2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-900-L2020-PL3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-900-L2020-PR3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-900-L2020-PB3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1000-L2020-M4	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-1000-L2020-PL2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1000-L2020-PR2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1000-L2020-PB2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1000-L2020-PL3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1000-L2020-PR3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1000-L2020-PB3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1100-L2020-M4	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-1100-L2020-PL2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1100-L2020-PR2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1100-L2020-PB2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1100-L2020-PL3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1100-L2020-PR3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1100-L2020-PB3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1200-L2020-M4	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-1200-L2020-PL2	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1200-L2020-PR2	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1200-L2020-PB2	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1200-L2020-PL3	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1200-L2020-PR3	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1200-L2020-PB3	Size: TRS210 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-100-G2010-M4	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-100-G2010-PL2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-100-G2010-PR2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-100-G2010-PB2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-100-G2010-PL3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-100-G2010-PR3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-100-G2010-PB3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-200-G2010-M4	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-200-G2010-PL2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-200-G2010-PR2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-200-G2010-PB2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-200-G2010-PL3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-200-G2010-PR3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-200-G2010-PB3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-300-G2010-M4	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-300-G2010-PL2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-300-G2010-PR2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-300-G2010-PB2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-300-G2010-PL3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-300-G2010-PR3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-300-G2010-PB3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-400-G2010-M4	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-400-G2010-PL2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-400-G2010-PR2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-400-G2010-PB2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-400-G2010-PL3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-400-G2010-PR3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-400-G2010-PB3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-500-G2010-M4	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-500-G2010-PL2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-500-G2010-PR2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-500-G2010-PB2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-500-G2010-PL3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-500-G2010-PR3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-500-G2010-PB3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-600-G2010-M4	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-600-G2010-PL2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-600-G2010-PR2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-600-G2010-PB2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-600-G2010-PL3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-600-G2010-PR3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-600-G2010-PB3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-700-G2010-M4	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-700-G2010-PL2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-700-G2010-PR2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-700-G2010-PB2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-700-G2010-PL3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-700-G2010-PR3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-700-G2010-PB3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-800-G2010-M4	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-800-G2010-PL2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-800-G2010-PR2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-800-G2010-PB2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-800-G2010-PL3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-800-G2010-PR3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-800-G2010-PB3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-900-G2010-M4	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-900-G2010-PL2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-900-G2010-PR2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-900-G2010-PB2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-900-G2010-PL3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-900-G2010-PR3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-900-G2010-PB3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1000-G2010-M4	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-1000-G2010-PL2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1000-G2010-PR2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1000-G2010-PB2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1000-G2010-PL3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1000-G2010-PR3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1000-G2010-PB3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1100-G2010-M4	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: In-line bracket, 750W
	TRS210-1100-G2010-PL2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1100-G2010-PR2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1100-G2010-PB2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1100-G2010-PL3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1100-G2010-PR3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1100-G2010-PB3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 10 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-100-G2020-M4	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-100-G2020-PL2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-100-G2020-PR2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-100-G2020-PB2	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-100-G2020-PL3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-100-G2020-PR3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-100-G2020-PB3	Size: TRS210 \| Stroke: 100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-200-G2020-M4	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-200-G2020-PL2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-200-G2020-PR2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-200-G2020-PB2	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-200-G2020-PL3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-200-G2020-PR3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-200-G2020-PB3	Size: TRS210 \| Stroke: 200 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-300-G2020-M4	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-300-G2020-PL2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-300-G2020-PR2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-300-G2020-PB2	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-300-G2020-PL3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-300-G2020-PR3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-300-G2020-PB3	Size: TRS210 \| Stroke: 300 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-400-G2020-M4	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-400-G2020-PL2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-400-G2020-PR2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-400-G2020-PB2	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-400-G2020-PL3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-400-G2020-PR3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-400-G2020-PB3	Size: TRS210 \| Stroke: 400 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-500-G2020-M4	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-500-G2020-PL2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-500-G2020-PR2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-500-G2020-PB2	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-500-G2020-PL3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-500-G2020-PR3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-500-G2020-PB3	Size: TRS210 \| Stroke: 500 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-600-G2020-M4	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-600-G2020-PL2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-600-G2020-PR2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-600-G2020-PB2	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-600-G2020-PL3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-600-G2020-PR3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-600-G2020-PB3	Size: TRS210 \| Stroke: 600 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-700-G2020-M4	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-700-G2020-PL2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-700-G2020-PR2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-700-G2020-PB2	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-700-G2020-PL3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-700-G2020-PR3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-700-G2020-PB3	Size: TRS210 \| Stroke: 700 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-800-G2020-M4	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-800-G2020-PL2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-800-G2020-PR2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-800-G2020-PB2	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-800-G2020-PL3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-800-G2020-PR3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-800-G2020-PB3	Size: TRS210 \| Stroke: 800 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-900-G2020-M4	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-900-G2020-PL2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-900-G2020-PR2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-900-G2020-PB2	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-900-G2020-PL3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-900-G2020-PR3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-900-G2020-PB3	Size: TRS210 \| Stroke: 900 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1000-G2020-M4	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-1000-G2020-PL2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1000-G2020-PR2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1000-G2020-PB2	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1000-G2020-PL3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1000-G2020-PR3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1000-G2020-PB3	Size: TRS210 \| Stroke: 1000 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS210-1100-G2020-M4	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: In-line bracket, 750W
	TRS210-1100-G2020-PL2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 200W/400W
	TRS210-1100-G2020-PR2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 200W/400W
	TRS210-1100-G2020-PB2	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 200W/400W
	TRS210-1100-G2020-PL3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PL, 750W
	TRS210-1100-G2020-PR3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PR, 750W
	TRS210-1100-G2020-PB3	Size: TRS210 \| Stroke: 1100 mm \| Ball screw: Ground dia. 20 mm, lead 20 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-100-L3232-M4	Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-100-L3232-M5	Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-100-L3232-PL3	Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-100-L3232-PR3	Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-100-L3232-PB3	Size: TRS260 \| Stroke: 100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-200-L3232-M4	Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-200-L3232-M5	Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-200-L3232-PL3	Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-200-L3232-PR3	Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-200-L3232-PB3	Size: TRS260 \| Stroke: 200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-300-L3232-M4	Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-300-L3232-M5	Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-300-L3232-PL3	Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-300-L3232-PR3	Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-300-L3232-PB3	Size: TRS260 \| Stroke: 300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-400-L3232-M4	Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-400-L3232-M5	Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-400-L3232-PL3	Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-400-L3232-PR3	Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-400-L3232-PB3	Size: TRS260 \| Stroke: 400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-500-L3232-M4	Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-500-L3232-M5	Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-500-L3232-PL3	Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-500-L3232-PR3	Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-500-L3232-PB3	Size: TRS260 \| Stroke: 500 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-600-L3232-M4	Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-600-L3232-M5	Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-600-L3232-PL3	Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-600-L3232-PR3	Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-600-L3232-PB3	Size: TRS260 \| Stroke: 600 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-700-L3232-M4	Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-700-L3232-M5	Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-700-L3232-PL3	Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-700-L3232-PR3	Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-700-L3232-PB3	Size: TRS260 \| Stroke: 700 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-800-L3232-M4	Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-800-L3232-M5	Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-800-L3232-PL3	Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-800-L3232-PR3	Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-800-L3232-PB3	Size: TRS260 \| Stroke: 800 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-900-L3232-M4	Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-900-L3232-M5	Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-900-L3232-PL3	Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-900-L3232-PR3	Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-900-L3232-PB3	Size: TRS260 \| Stroke: 900 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-1000-L3232-M4	Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-1000-L3232-M5	Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-1000-L3232-PL3	Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-1000-L3232-PR3	Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-1000-L3232-PB3	Size: TRS260 \| Stroke: 1000 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-1100-L3232-M4	Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-1100-L3232-M5	Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-1100-L3232-PL3	Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-1100-L3232-PR3	Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-1100-L3232-PB3	Size: TRS260 \| Stroke: 1100 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-1200-L3232-M4	Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-1200-L3232-M5	Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-1200-L3232-PL3	Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-1200-L3232-PR3	Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-1200-L3232-PB3	Size: TRS260 \| Stroke: 1200 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-1300-L3232-M4	Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-1300-L3232-M5	Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-1300-L3232-PL3	Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-1300-L3232-PR3	Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-1300-L3232-PB3	Size: TRS260 \| Stroke: 1300 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS260-1400-L3232-M4	Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 750W
	TRS260-1400-L3232-M5	Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: In-line bracket, 1kW
	TRS260-1400-L3232-PL3	Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PL, 750W
	TRS260-1400-L3232-PR3	Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PR, 750W
	TRS260-1400-L3232-PB3	Size: TRS260 \| Stroke: 1400 mm \| Ball screw: Rolled dia. 32 mm, lead 32 mm \| Motor mount: Parallel bracket PB, 750W
	TRS160-M	Legacy code, catalog model TRS 160-M \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)
	TRS160-PL	Legacy code, catalog model TRS 160-PL \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PL
	TRS160-PR	Legacy code, catalog model TRS 160-PR \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PR
	TRS160-PB	Legacy code, catalog model TRS 160-PB \| Size: TRS160 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PB
	TRS180-M	Legacy code, catalog model TRS 180-M \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)
	TRS180-PR	Legacy code, catalog model TRS 180-PR \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PR
	TRS180-PL	Legacy code, catalog model TRS 180-PL \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PL
	TRS180-PB	Legacy code, catalog model TRS 180-PB \| Size: TRS180 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PB
	TRS210-M	Legacy code, catalog model TRS 210-M \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)
	TRS210-PR	Legacy code, catalog model TRS 210-PR \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PR
	TRS210-PL	Legacy code, catalog model TRS 210-PL \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PL
	TRS210-PB	Legacy code, catalog model TRS 210-PB \| Size: TRS210 \| Stroke: 100-1200 mm \| Ball screw: Per ordering chart \| Motor mount: Parallel bracket PB
	TRS260-M	Legacy code, catalog model TRS 260-M \| Size: TRS260 \| Stroke: 100-1400 mm \| Ball screw: Per ordering chart \| Motor mount: In-line motor bracket (M)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

TPC TRS Ball Screw Linear Actuator (Sizes 160-260)
