• WIDIN B302020 Carbide Ball End Mill
1 1

WIDIN B302020 Carbide Ball End Mill

WIDIN B302020 Carbide Ball End Mill

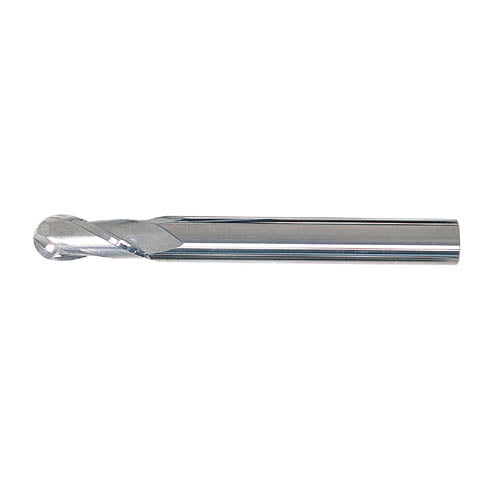

WIDIN B302020 Carbide Ball End Mill is a solid carbide cutting tool designed for precision milling of curved surfaces and complex 3D contours, sourced direct from Korea.

Key features

  • Ball end mills of this type are widely used in mold and die work, aerospace component machining, and general CNC profiling where smooth radial cutting paths are required
386-6975 MPN: B302020 | 2F*2MM*1R(B302020) | Spec: 1.0 | Cutting Length: 6 | Overall Length: 60 | Shank Diameter: 6
386-6984 MPN: B302030 | 2F*3MM*1.5R(B302030) | Spec: 1.5 | Cutting Length: 8 | Overall Length: 70 | Shank Diameter: 6
386-7035 MPN: B302060 | 2F*6MM*3R(B302060) | Spec: 3.0 | Cutting Length: 12 | Overall Length: 90 | Shank Diameter: 6
386-7044 MPN: B302065 | 2F*6.5MM*3.25R(B302065)
386-7062 MPN: B302080 | 2F*8MM*4R(B302080) | Spec: 4.0 | Cutting Length: 20 | Overall Length: 100 | Shank Diameter: 8
386-7071 MPN: B302090 | 2F*9MM*4.5R(B302090) | Spec: 4.5 | Cutting Length: 25 | Overall Length: 100 | Shank Diameter: 10
386-7080 MPN: B302100 | 2F*10MM*5R(B302100) | Spec: 5.0 | Cutting Length: 25 | Overall Length: 100 | Shank Diameter: 10
386-7099 MPN: B302110 | 2F*11MM*5.5R(B302110) | Spec: 5.5 | Cutting Length: 30 | Overall Length: 110 | Shank Diameter: 12
386-7105 MPN: B302120 | 2F*12MM*6R(B302120) | Spec: 6.0 | Cutting Length: 30 | Overall Length: 110 | Shank Diameter: 12
End MillsWIDIN
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WIDIN B302020 Carbide Ball End Mill

Brand WIDIN·End Mills

Available part numbers (9)

386-6975, 386-6984, 386-7035, 386-7044, 386-7062, 386-7071, 386-7080, 386-7099, 386-7105

How to order

Send the WIDIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
386-6975MPN: B302020 | 2F*2MM*1R(B302020) | Spec: 1.0 | Cutting Length: 6 | Overall Length: 60 | Shank Diameter: 6
386-6984MPN: B302030 | 2F*3MM*1.5R(B302030) | Spec: 1.5 | Cutting Length: 8 | Overall Length: 70 | Shank Diameter: 6
386-7035MPN: B302060 | 2F*6MM*3R(B302060) | Spec: 3.0 | Cutting Length: 12 | Overall Length: 90 | Shank Diameter: 6
386-7044MPN: B302065 | 2F*6.5MM*3.25R(B302065)
386-7062MPN: B302080 | 2F*8MM*4R(B302080) | Spec: 4.0 | Cutting Length: 20 | Overall Length: 100 | Shank Diameter: 8
386-7071MPN: B302090 | 2F*9MM*4.5R(B302090) | Spec: 4.5 | Cutting Length: 25 | Overall Length: 100 | Shank Diameter: 10
386-7080MPN: B302100 | 2F*10MM*5R(B302100) | Spec: 5.0 | Cutting Length: 25 | Overall Length: 100 | Shank Diameter: 10
386-7099MPN: B302110 | 2F*11MM*5.5R(B302110) | Spec: 5.5 | Cutting Length: 30 | Overall Length: 110 | Shank Diameter: 12
386-7105MPN: B302120 | 2F*12MM*6R(B302120) | Spec: 6.0 | Cutting Length: 30 | Overall Length: 110 | Shank Diameter: 12
