• WIDIN E302020 Carbide End Mill
1 1

WIDIN E302020 Carbide End Mill

WIDIN E302020 Carbide End Mill

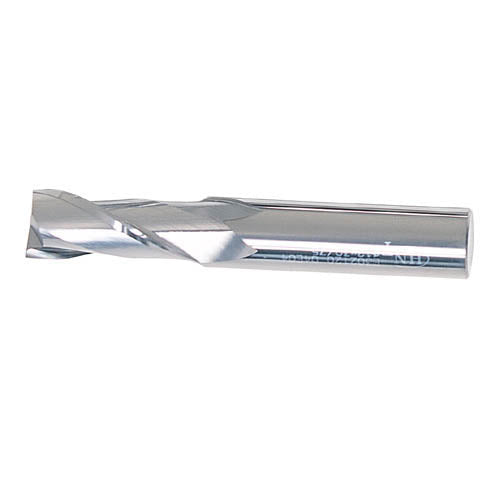

WIDIN E302020 Carbide End Mill is a solid carbide rotary cutting tool designed for precision milling operations, sourced direct from Korea.

Key features

  • Carbide end mills like this are commonly used in CNC machining centers to cut slots, profiles, and pockets in metals, alloys, and hard materials where tool rigidity and wear resistance are critical

Specifications

Number of Flutes 2F
386-4287 MPN: E302020 | 2F*2MM(E302020) | Spec: 2.0 | Cutting Length: 6 | Number of Flutes: 2F | Overall Length: 42 | Shank Diameter: 6
386-4311 MPN: E302030 | 2F*3MM(E302030) | Spec: 3.0 | Cutting Length: 10 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4320 MPN: E302035 | 2F*3.5MM(E302035) | Spec: 3.5 | Cutting Length: 10 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4339 MPN: E302040 | 2F*4MM(E302040) | Spec: 4.0 | Cutting Length: 12 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4357 MPN: E302050 | 2F*5MM(E302050) | Spec: 5.0 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4366 MPN: E302055 | 2F*5.5MM(E302055) | Spec: 5.5 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4375 MPN: E302060 | 2F*6MM(E302060) | Spec: 6.0 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4384 MPN: E302065 | 2F*6.5MM(E302065) | Spec: 6.5 | Cutting Length: 18 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4393 MPN: E302070 | 2F*7MM(E302070) | Spec: 7.0 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4409 MPN: E302075 | 2F*7.5MM(E302075) | Spec: 7.5 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4418 MPN: E302080 | 2F*8MM(E302080) | Spec: 8.0 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4436 MPN: E302090 | 2F*9MM(E302090) | Spec: 9.0 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4445 MPN: E302095 | 2F*9.5MM(E302095) | Spec: 9.5 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4454 MPN: E302100 | 2F*10MM(E302100) | Spec: 10.0 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4472 MPN: E302110 | 2F*11MM(E302110) | Spec: 11.0 | Cutting Length: 30 | Number of Flutes: 2F | Overall Length: 75 | Shank Diameter: 12
386-4490 MPN: E302120 | 2F*12MM(E302120) | Spec: 12.0 | Cutting Length: 30 | Number of Flutes: 2F | Overall Length: 75 | Shank Diameter: 12
386-4506 MPN: E302130 | 2F*13MM(E302130) | Spec: 13.0 | Cutting Length: 35 | Number of Flutes: 2F | Overall Length: 85 | Shank Diameter: 14
386-4515 MPN: E302140 | 2F*14MM(E302140) | Spec: 14.0 | Cutting Length: 35 | Number of Flutes: 2F | Overall Length: 85 | Shank Diameter: 14
386-4542 MPN: E302180 | 2F*18MM(E302180) | Spec: 18.0 | Cutting Length: 45 | Number of Flutes: 2F | Overall Length: 100 | Shank Diameter: 18
386-4551 MPN: E302200 | 2F*20MM(E302200) | Spec: 20.0 | Cutting Length: 45 | Number of Flutes: 2F | Overall Length: 100 | Shank Diameter: 20
End MillsWIDIN
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WIDIN E302020 Carbide End Mill

Brand WIDIN·End Mills

Available part numbers (20)

386-4287, 386-4311, 386-4320, 386-4339, 386-4357, 386-4366, 386-4375, 386-4384, 386-4393, 386-4409 + 10 more — see full table ↓

How to order

Send the WIDIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
386-4287MPN: E302020 | 2F*2MM(E302020) | Spec: 2.0 | Cutting Length: 6 | Number of Flutes: 2F | Overall Length: 42 | Shank Diameter: 6
386-4311MPN: E302030 | 2F*3MM(E302030) | Spec: 3.0 | Cutting Length: 10 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4320MPN: E302035 | 2F*3.5MM(E302035) | Spec: 3.5 | Cutting Length: 10 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4339MPN: E302040 | 2F*4MM(E302040) | Spec: 4.0 | Cutting Length: 12 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4357MPN: E302050 | 2F*5MM(E302050) | Spec: 5.0 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4366MPN: E302055 | 2F*5.5MM(E302055) | Spec: 5.5 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4375MPN: E302060 | 2F*6MM(E302060) | Spec: 6.0 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4384MPN: E302065 | 2F*6.5MM(E302065) | Spec: 6.5 | Cutting Length: 18 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4393MPN: E302070 | 2F*7MM(E302070) | Spec: 7.0 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4409MPN: E302075 | 2F*7.5MM(E302075) | Spec: 7.5 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4418MPN: E302080 | 2F*8MM(E302080) | Spec: 8.0 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4436MPN: E302090 | 2F*9MM(E302090) | Spec: 9.0 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4445MPN: E302095 | 2F*9.5MM(E302095) | Spec: 9.5 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4454MPN: E302100 | 2F*10MM(E302100) | Spec: 10.0 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4472MPN: E302110 | 2F*11MM(E302110) | Spec: 11.0 | Cutting Length: 30 | Number of Flutes: 2F | Overall Length: 75 | Shank Diameter: 12
386-4490MPN: E302120 | 2F*12MM(E302120) | Spec: 12.0 | Cutting Length: 30 | Number of Flutes: 2F | Overall Length: 75 | Shank Diameter: 12
386-4506MPN: E302130 | 2F*13MM(E302130) | Spec: 13.0 | Cutting Length: 35 | Number of Flutes: 2F | Overall Length: 85 | Shank Diameter: 14
386-4515MPN: E302140 | 2F*14MM(E302140) | Spec: 14.0 | Cutting Length: 35 | Number of Flutes: 2F | Overall Length: 85 | Shank Diameter: 14
386-4542MPN: E302180 | 2F*18MM(E302180) | Spec: 18.0 | Cutting Length: 45 | Number of Flutes: 2F | Overall Length: 100 | Shank Diameter: 18
386-4551MPN: E302200 | 2F*20MM(E302200) | Spec: 20.0 | Cutting Length: 45 | Number of Flutes: 2F | Overall Length: 100 | Shank Diameter: 20
