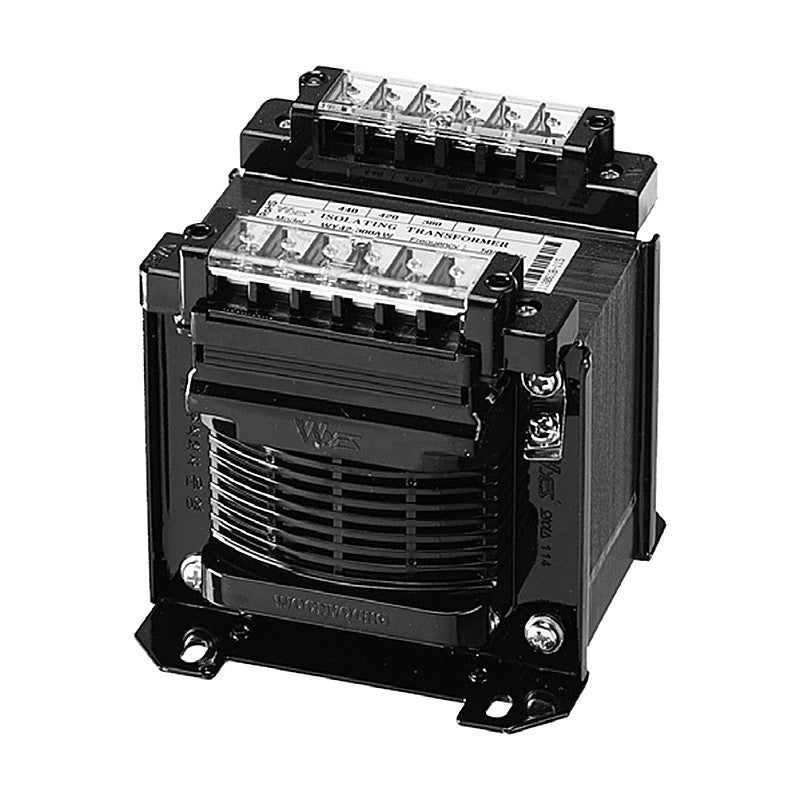

Woonyoung 110 V Line Isolation Transformer WY11-AF Series

Woonyoung 110 V Line Isolation Transformer WY11-AF Series

Single-phase 110 V line to 110 V line isolation transformer with 90/100/110 V primary and 100/110/120 V secondary taps.

Key features

  • Isolation (double winding) construction
  • Primary and secondary voltage taps
  • Rated capacity at the maximum voltage tap
  • CE certified
  • Insulation class B

Specifications

Phase Single phase
WY11-100AF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY11-200AF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY11-300AF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY11-500AF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY11-1KAF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WY11-1.5KAF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY11-2KAF Type: WT | Primary (V): 0-90-100-110 | Secondary (V): 0-100-110-120-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
