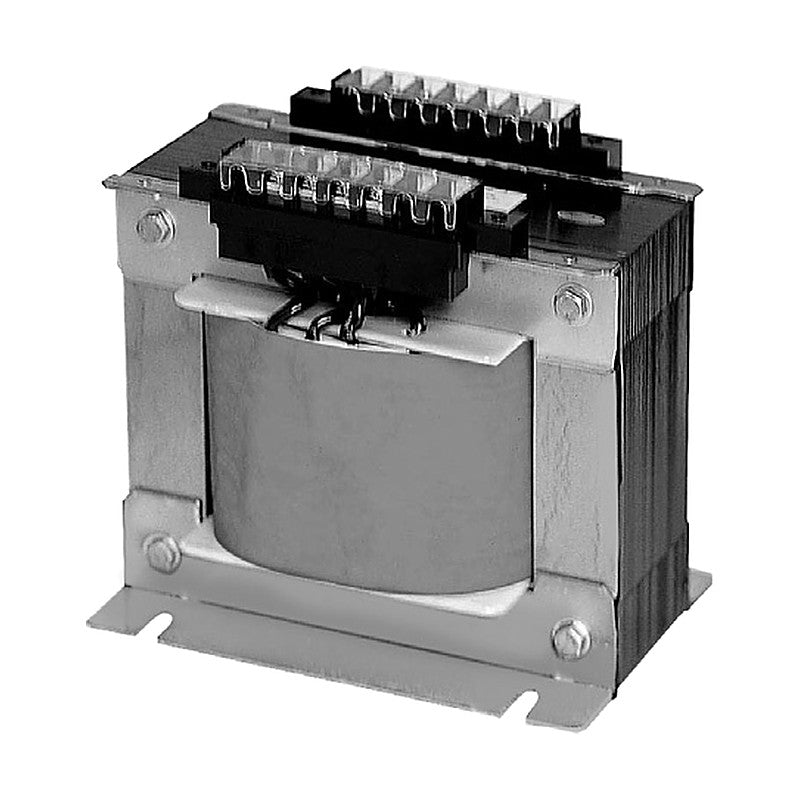

Woonyoung 220 V Line Isolation Transformer WY22-AF Series

Woonyoung 220 V Line Isolation Transformer WY22-AF Series

Single-phase 220 V line to 220 V line isolation transformer with 200/220 V primary and 210/220/230 V secondary taps.

Key features

  • Isolation (double winding) construction
  • Primary and secondary voltage taps
  • Rated capacity at the maximum voltage tap
  • CE certified
  • Insulation class B (50 VA-2 kVA), class H (3-5 kVA)
  • Over 5 kVA made to order

Specifications

Phase Single phase
WY22-50AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 50 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY22-80AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY22-100AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.59
WY22-150AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.20
WY22-200AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY22-300AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY22-500AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY22-750AF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY22-1KAF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY22-1.5KAF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY22-2KAF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WY22-3KAF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 3 kVA | Dimensions W x H x D (mm): 219 x 226 x 170 | Weight (kg): 26.70
WY22-5KAF Type: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 245 x 240 x 192 | Weight (kg): 40.20
Industrial TransformersWoonyoung
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung 220 V Line Isolation Transformer WY22-AF Series

Brand Woonyoung·Industrial Transformers

Available part numbers (13)

WY22-50AF, WY22-80AF, WY22-100AF, WY22-150AF, WY22-200AF, WY22-300AF, WY22-500AF, WY22-750AF, WY22-1KAF, WY22-1.5KAF + 3 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY22-50AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 50 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY22-80AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY22-100AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.59
WY22-150AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.20
WY22-200AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY22-300AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY22-500AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY22-750AFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY22-1KAFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY22-1.5KAFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY22-2KAFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WY22-3KAFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 3 kVA | Dimensions W x H x D (mm): 219 x 226 x 170 | Weight (kg): 26.70
WY22-5KAFType: WT | Primary (V): 0-200-220 | Secondary (V): 0-210-220-230-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 245 x 240 x 192 | Weight (kg): 40.20
