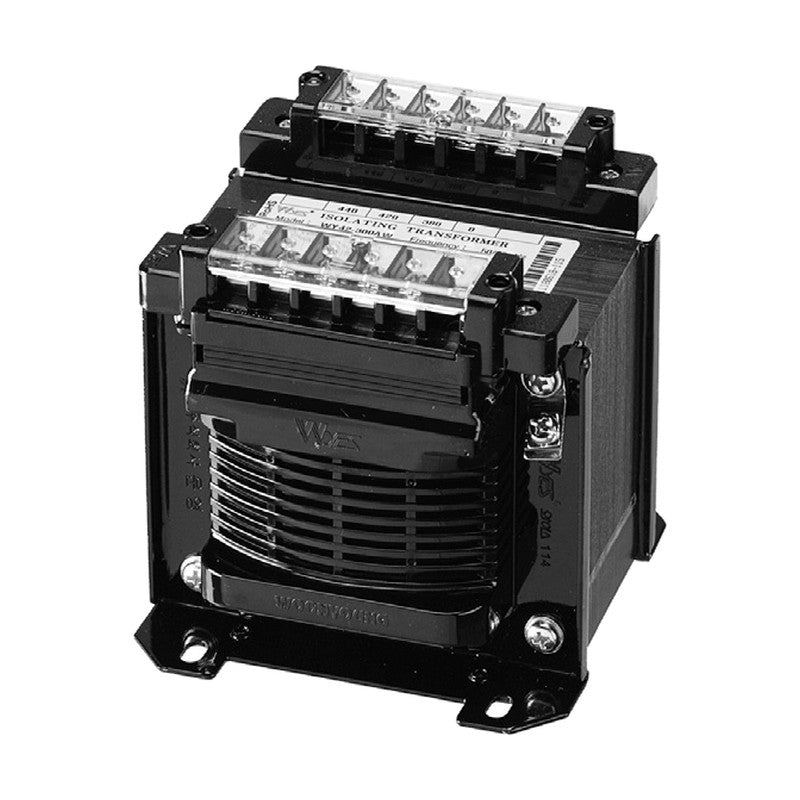

Woonyoung 220 V Line to 115-230 V Isolation Transformer WY22-FC Series

Woonyoung 220 V Line to 115-230 V Isolation Transformer WY22-FC Series

Single-phase isolation transformer for 220 V lines with multiple secondary taps from 115 V to 230 V.

Key features

  • Isolation (double winding) construction
  • Primary and secondary voltage taps
  • Rated capacity at the maximum voltage tap
  • CE certified

Specifications

Phase Single phase
WY22-300FC Type: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-150-170-190-210-230 | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY22-500FC Type: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY22-750FC Type: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY22-1KFC Type: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY22-1.5KFC Type: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY22-2KFC Type: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
Industrial TransformersWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung 220 V Line to 115-230 V Isolation Transformer WY22-FC Series

Brand Woonyoung·Industrial Transformers

Available part numbers (6)

WY22-300FC, WY22-500FC, WY22-750FC, WY22-1KFC, WY22-1.5KFC, WY22-2KFC

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY22-300FCType: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-150-170-190-210-230 | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY22-500FCType: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY22-750FCType: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY22-1KFCType: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY22-1.5KFCType: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY22-2KFCType: WT | Primary (V): 0-210-220-230-(E) | Secondary (V): 0-115-150-170-190-210-230 | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
