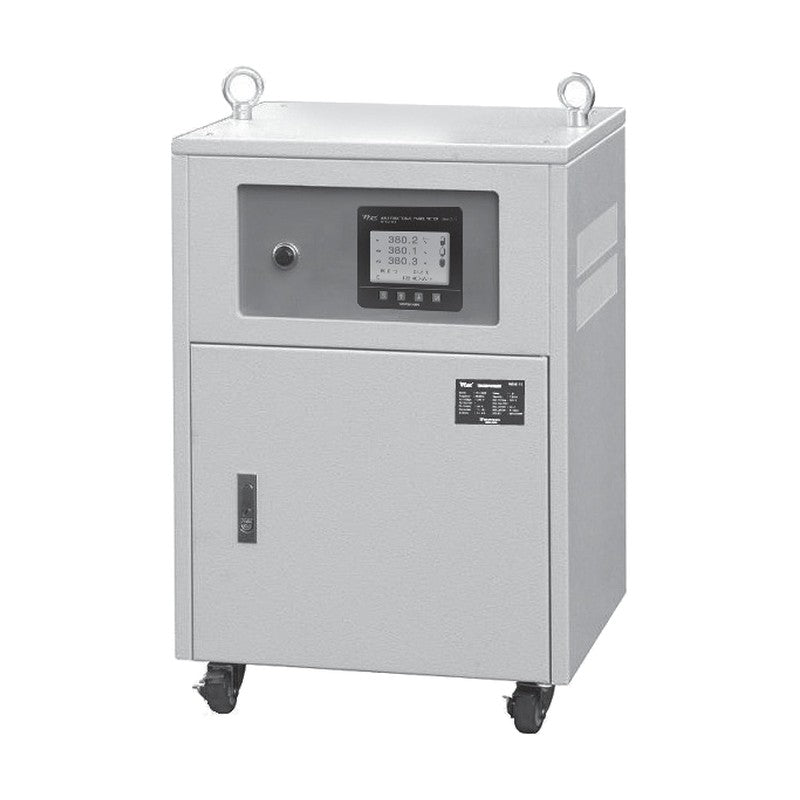

Woonyoung Cased Isolation Transformer with Digital Power Meter WYCM Series (WY21CM-KA / WY42CM-KAW)

Woonyoung Cased Isolation Transformer with Digital Power Meter WYCM Series (WY21CM-KA / WY42CM-KAW)

Single-phase double-winding dry-type cased transformer with a front digital multi-meter measuring voltage, current, power, power quality and temperature, with RS-485 (Modbus) communication.

Key features

  • Digital power meter on the front panel
  • RS-485 (Modbus) communication to a higher-level network
  • Alarm output selectable from up to 8 elements
  • Rear door with terminal block, casters for transport
  • Temperature detection option (PT100)
  • Insulation class H

Specifications

Phase Single phase
Winding Double winding (isolation)
Enclosure Case type with meter (WYCM)
WY21CM-5KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 5 kVA | Dimensions W x H x D (mm): 380 x 460 x 450 | Weight (kg): 55.0
WY21CM-7.5KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 7.5 kVA | Dimensions W x H x D (mm): 380 x 460 x 450 | Weight (kg): 74.0
WY21CM-10KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 10 kVA | Dimensions W x H x D (mm): 400 x 520 x 480 | Weight (kg): 85.0
WY21CM-15KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 15 kVA | Dimensions W x H x D (mm): 400 x 520 x 480 | Weight (kg): 140.0
WY21CM-20KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 20 kVA | Dimensions W x H x D (mm): 500 x 650 x 500 | Weight (kg): 160.0
WY21CM-30KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 30 kVA | Dimensions W x H x D (mm): 500 x 750 x 550 | Weight (kg): 190.0
WY21CM-40KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 40 kVA | Dimensions W x H x D (mm): 500 x 750 x 550 | Weight (kg): 250.0
WY21CM-50KA Primary (V): 0-220 | Secondary (V): 0-110 | Capacity: 50 kVA | Dimensions W x H x D (mm): 500 x 750 x 550 | Weight (kg): 255.0
WY42CM-5KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 380 x 460 x 450 | Weight (kg): 55.0
WY42CM-7.5KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 7.5 kVA | Dimensions W x H x D (mm): 380 x 460 x 450 | Weight (kg): 74.0
WY42CM-10KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 10 kVA | Dimensions W x H x D (mm): 400 x 520 x 480 | Weight (kg): 85.0
WY42CM-15KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 15 kVA | Dimensions W x H x D (mm): 400 x 520 x 480 | Weight (kg): 140.0
WY42CM-20KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 20 kVA | Dimensions W x H x D (mm): 500 x 650 x 500 | Weight (kg): 160.0
WY42CM-30KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 30 kVA | Dimensions W x H x D (mm): 500 x 750 x 550 | Weight (kg): 190.0
WY42CM-40KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 40 kVA | Dimensions W x H x D (mm): 500 x 750 x 550 | Weight (kg): 250.0
WY42CM-50KAW Primary (V): 0-380-440 | Secondary (V): 0-220-(E) | Capacity: 50 kVA | Dimensions W x H x D (mm): 500 x 750 x 550 | Weight (kg): 255.0
