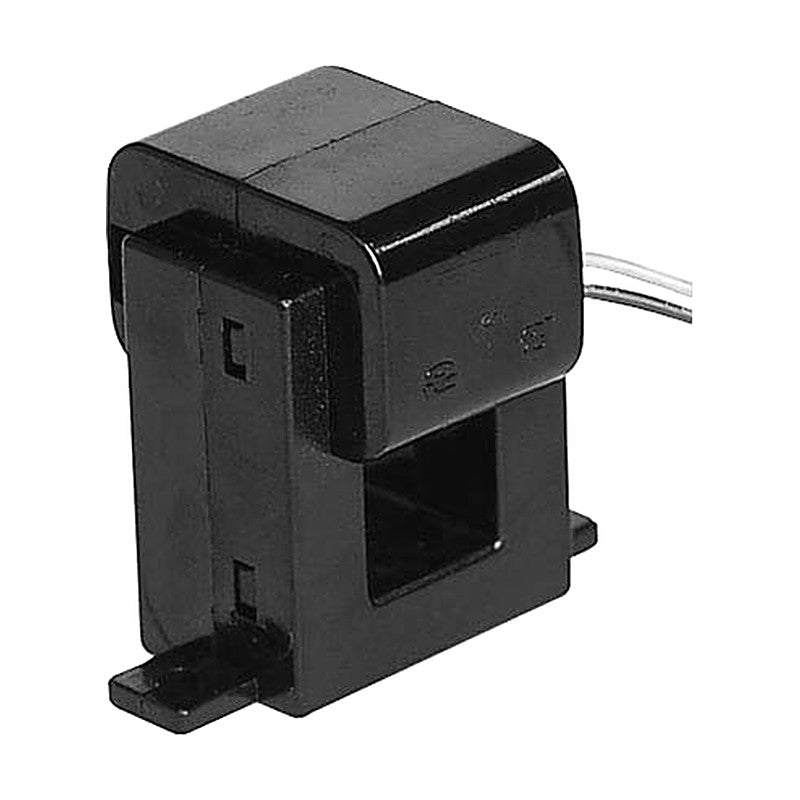

• Woonyoung Current Transformer (Sensor) WY-C Series
1 1

Woonyoung Current Transformer (Sensor) WY-C Series

Woonyoung Current Transformer (Sensor) WY-C Series

Ring-core current transformer for control use that limits saturation, with a pass-through primary wire.

Key features

  • Ring core limits saturation
  • Pass-through primary (cable through) or turn-ratio use
  • CP type

Specifications

Dimensions A x B x C x D (mm) 62 x 57 x 43 x 52
WY-C30 Turns: 300 | Rated current (A): 0.45 | Resistance (ohm): 1.8
WY-C50 Turns: 500 | Rated current (A): 0.38 | Resistance (ohm): 5
WY-C100 Turns: 1000 | Rated current (A): 0.15 | Resistance (ohm): 20
WY-C200 Turns: 2000 | Rated current (A): 0.076 | Resistance (ohm): 90
WY-C300 Turns: 3000 | Rated current (A): 0.060 | Resistance (ohm): 180
WY-C400 Turns: 4000 | Rated current (A): 0.046 | Resistance (ohm): 310
WY-C500 Turns: 5000 | Rated current (A): 0.034 | Resistance (ohm): 490
Industrial TransformersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Current Transformer (Sensor) WY-C Series

Brand Woonyoung·Industrial Transformers

Available part numbers (7)

WY-C30, WY-C50, WY-C100, WY-C200, WY-C300, WY-C400, WY-C500

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY-C30Turns: 300 | Rated current (A): 0.45 | Resistance (ohm): 1.8
WY-C50Turns: 500 | Rated current (A): 0.38 | Resistance (ohm): 5
WY-C100Turns: 1000 | Rated current (A): 0.15 | Resistance (ohm): 20
WY-C200Turns: 2000 | Rated current (A): 0.076 | Resistance (ohm): 90
WY-C300Turns: 3000 | Rated current (A): 0.060 | Resistance (ohm): 180
WY-C400Turns: 4000 | Rated current (A): 0.046 | Resistance (ohm): 310
WY-C500Turns: 5000 | Rated current (A): 0.034 | Resistance (ohm): 490

Need a different model, or a part not listed here? Send us your parts list →
