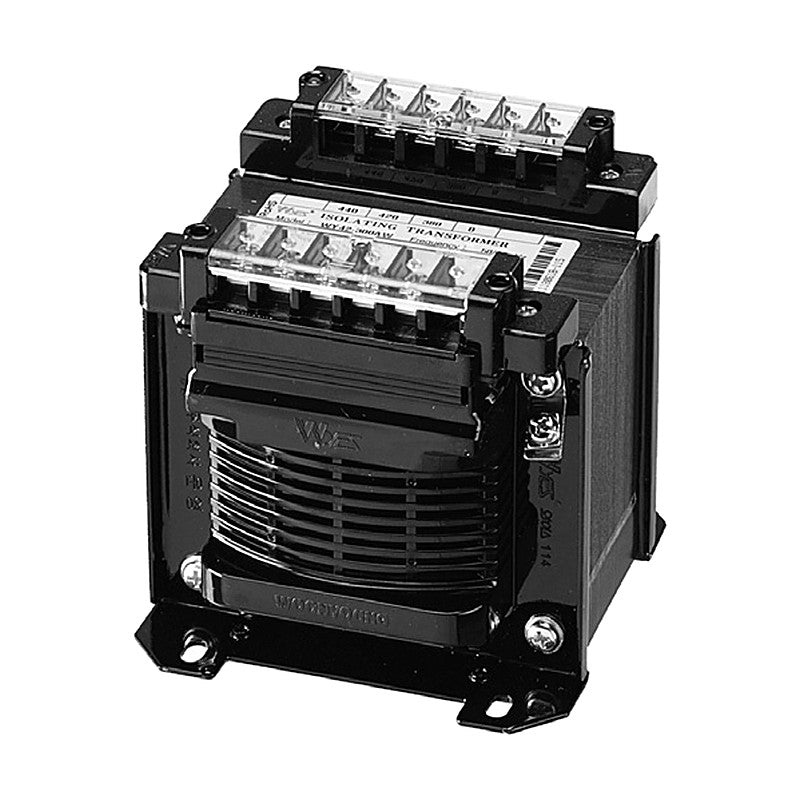

Woonyoung General Transformer WY2211-A Series (220 V to 110 V)

Woonyoung General Transformer WY2211-A Series (220 V to 110 V)

Economical single-phase isolation transformer with AC 220 V input and AC 110 V output, with an LED indicating that power is applied.

Key features

  • Power indicator LED
  • Single tap for economical general use
  • CE certified
  • Insulation class B

Specifications

Phase Single phase
Type WT (terminal block)
Primary (V) 0-220
Secondary (V) 0-110-(E)
Insulation class B
WY2211-40A Capacity: 40 VA | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WY2211-60A Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY2211-80A Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY2211-100A Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY2211-150A Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.23
WY2211-200A Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY2211-300A Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY2211-500A Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY2211-750A Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY2211-1KA Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WY2211-1.5KA Capacity: 1.5 kVA | Dimensions W x H x D (mm): 185 x 188 x 151 | Weight (kg): 16.50
WY2211-2KA Capacity: 2 kVA | Dimensions W x H x D (mm): 185 x 188 x 171 | Weight (kg): 20.10
Control TransformersWoonyoung
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung General Transformer WY2211-A Series (220 V to 110 V)

Brand Woonyoung·Control Transformers

Available part numbers (12)

WY2211-40A, WY2211-60A, WY2211-80A, WY2211-100A, WY2211-150A, WY2211-200A, WY2211-300A, WY2211-500A, WY2211-750A, WY2211-1KA + 2 more — see full table ↓
