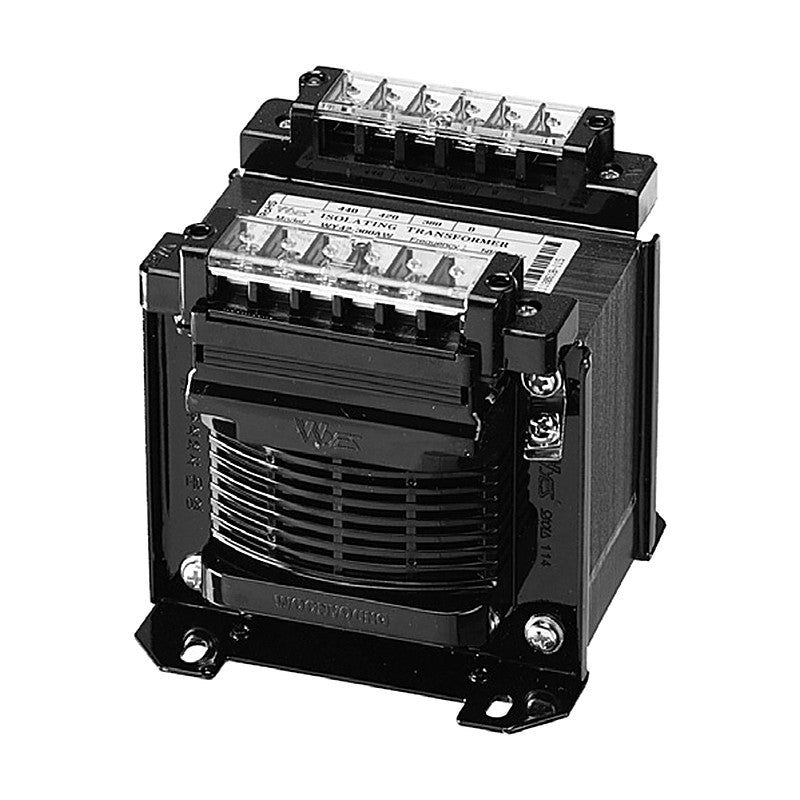

Woonyoung General Transformer WY3822-AW Series (380 V to 220 V)

Woonyoung General Transformer WY3822-AW Series (380 V to 220 V)

Economical single-phase isolation transformer with AC 380 V input and AC 220 V output, with an LED indicating that power is applied.

Key features

  • Power indicator LED
  • Single tap for economical general use
  • CE certified
  • Insulation class B

Specifications

Phase Single phase
Type WT (terminal block)
Primary (V) 0-380
Secondary (V) 0-220-(E)
Insulation class B
WY3822-40AW Capacity: 40 VA | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WY3822-60AW Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY3822-80AW Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY3822-100AW Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY3822-150AW Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.23
WY3822-200AW Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY3822-300AW Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY3822-500AW Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY3822-750AW Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY3822-1KAW Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WY3822-1.5KAW Capacity: 1.5 kVA | Dimensions W x H x D (mm): 185 x 188 x 151 | Weight (kg): 16.50
WY3822-2KAW Capacity: 2 kVA | Dimensions W x H x D (mm): 185 x 188 x 171 | Weight (kg): 20.10
