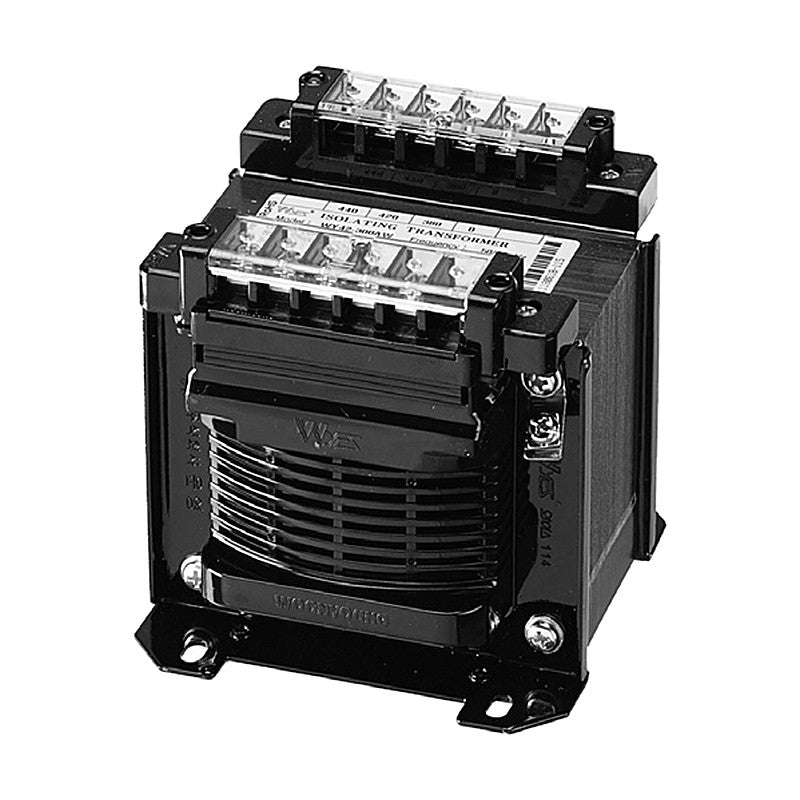

Woonyoung General Transformer WY4422-AW Series (440 V to 220 V)

Woonyoung General Transformer WY4422-AW Series (440 V to 220 V)

Economical single-phase isolation transformer with AC 440 V input and AC 220 V output, with an LED indicating that power is applied.

Key features

  • Power indicator LED
  • Single tap for economical general use
  • CE certified
  • Insulation class B

Specifications

Phase Single phase
Type WT (terminal block)
Primary (V) 0-440
Secondary (V) 0-220-(E)
Insulation class B
WY4422-40AW Capacity: 40 VA | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WY4422-60AW Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY4422-80AW Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY4422-100AW Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY4422-150AW Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.23
WY4422-200AW Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY4422-300AW Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY4422-500AW Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY4422-750AW Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY4422-1KAW Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WY4422-1.5KAW Capacity: 1.5 kVA | Dimensions W x H x D (mm): 185 x 188 x 151 | Weight (kg): 16.50
WY4422-2KAW Capacity: 2 kVA | Dimensions W x H x D (mm): 185 x 188 x 171 | Weight (kg): 20.10
Control TransformersWoonyoung
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung General Transformer WY4422-AW Series (440 V to 220 V)

Brand Woonyoung·Control Transformers

Available part numbers (12)

WY4422-40AW, WY4422-60AW, WY4422-80AW, WY4422-100AW, WY4422-150AW, WY4422-200AW, WY4422-300AW, WY4422-500AW, WY4422-750AW, WY4422-1KAW + 2 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY4422-40AWCapacity: 40 VA | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WY4422-60AWCapacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY4422-80AWCapacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY4422-100AWCapacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY4422-150AWCapacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.23
WY4422-200AWCapacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY4422-300AWCapacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY4422-500AWCapacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY4422-750AWCapacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY4422-1KAWCapacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WY4422-1.5KAWCapacity: 1.5 kVA | Dimensions W x H x D (mm): 185 x 188 x 151 | Weight (kg): 16.50
WY4422-2KAWCapacity: 2 kVA | Dimensions W x H x D (mm): 185 x 188 x 171 | Weight (kg): 20.10
