Woonyoung High Voltage Transformer WYPT-33H Series (3300 V input)

Woonyoung High Voltage Transformer WYPT-33H Series (3300 V input)

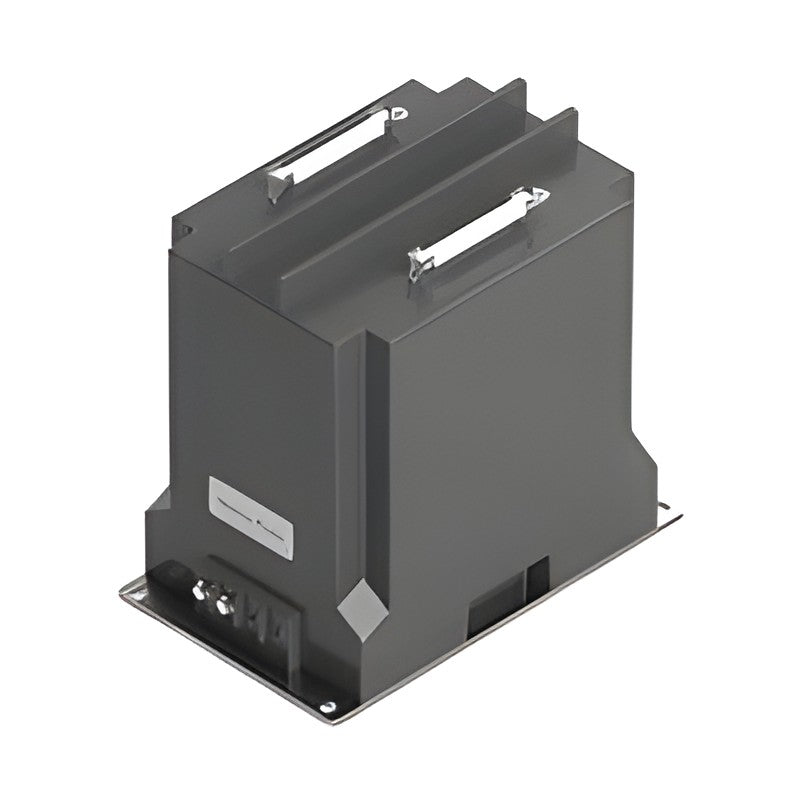

Single-phase isolation transformer with AC 3300 V input and AC 110/220 V output, with high-voltage fuses on top and molded coils.

Key features

  • High-voltage fuses mounted on top (14 x 110 mm, gG, 7.2 kV)
  • Molded coil winding protects HV and LV sides
  • WPT type
  • Insulation class E

Specifications

Phase Single phase
Primary (V) 3300
Fuse 14 x 110 mm, category gG, 7.2 kV
Insulation class E
WYPT-331105H Secondary (V): 0-110 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331110H Secondary (V): 0-110 | Capacity: 1.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331115H Secondary (V): 0-110 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331120H Secondary (V): 0-110 | Capacity: 2.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331130H Secondary (V): 0-110 | Capacity: 3.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-331150H Secondary (V): 0-110 | Capacity: 5.0 kVA VA | Fuse (A): 6.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-332205H Secondary (V): 0-220 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-332210H Secondary (V): 0-220 | Capacity: 1.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-332215H Secondary (V): 0-220 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-332220H Secondary (V): 0-220 | Capacity: 2.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-332230H Secondary (V): 0-220 | Capacity: 3.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-332250H Secondary (V): 0-220 | Capacity: 5.0 kVA VA | Fuse (A): 6.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-331205H Secondary (V): 0-110-220 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331210H Secondary (V): 0-110-220 | Capacity: 1.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331215H Secondary (V): 0-110-220 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331220H Secondary (V): 0-110-220 | Capacity: 2.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331230H Secondary (V): 0-110-220 | Capacity: 3.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-331250H Secondary (V): 0-110-220 | Capacity: 5.0 kVA VA | Fuse (A): 6.0 | Dimensions W x H x D (mm): 220 x 322 x 356
Industrial TransformersWoonyoung
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung High Voltage Transformer WYPT-33H Series (3300 V input)

Brand Woonyoung·Industrial Transformers

Available part numbers (18)

WYPT-331105H, WYPT-331110H, WYPT-331115H, WYPT-331120H, WYPT-331130H, WYPT-331150H, WYPT-332205H, WYPT-332210H, WYPT-332215H, WYPT-332220H + 8 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYPT-331105HSecondary (V): 0-110 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331110HSecondary (V): 0-110 | Capacity: 1.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331115HSecondary (V): 0-110 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331120HSecondary (V): 0-110 | Capacity: 2.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331130HSecondary (V): 0-110 | Capacity: 3.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-331150HSecondary (V): 0-110 | Capacity: 5.0 kVA VA | Fuse (A): 6.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-332205HSecondary (V): 0-220 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-332210HSecondary (V): 0-220 | Capacity: 1.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-332215HSecondary (V): 0-220 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-332220HSecondary (V): 0-220 | Capacity: 2.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-332230HSecondary (V): 0-220 | Capacity: 3.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-332250HSecondary (V): 0-220 | Capacity: 5.0 kVA VA | Fuse (A): 6.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-331205HSecondary (V): 0-110-220 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331210HSecondary (V): 0-110-220 | Capacity: 1.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-331215HSecondary (V): 0-110-220 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331220HSecondary (V): 0-110-220 | Capacity: 2.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-331230HSecondary (V): 0-110-220 | Capacity: 3.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-331250HSecondary (V): 0-110-220 | Capacity: 5.0 kVA VA | Fuse (A): 6.0 | Dimensions W x H x D (mm): 220 x 322 x 356
