Woonyoung High Voltage Transformer WYPT-66H Series (6600 V input)

Woonyoung High Voltage Transformer WYPT-66H Series (6600 V input)

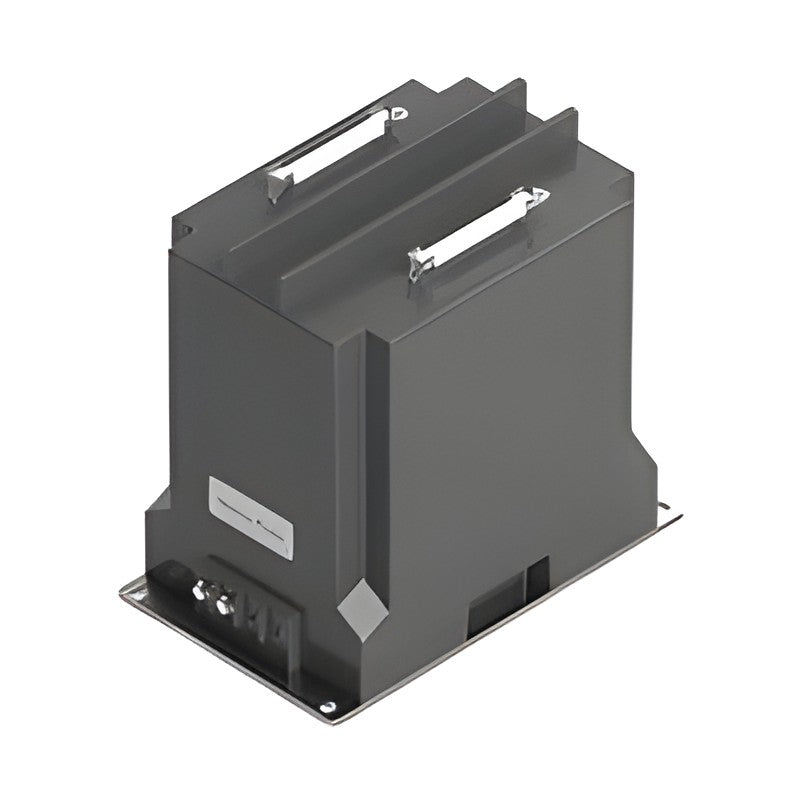

Single-phase isolation transformer with AC 6600 V input and AC 110/220 V output, with high-voltage fuses on top and molded coils.

Key features

  • High-voltage fuses mounted on top (14 x 110 mm, gG, 7.2 kV)
  • Molded coil winding protects HV and LV sides
  • WPT type
  • Insulation class E

Specifications

Phase Single phase
Primary (V) 6600
Fuse 14 x 110 mm, category gG, 7.2 kV
Insulation class E
WYPT-661105H Secondary (V): 0-110 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-661110H Secondary (V): 0-110 | Capacity: 1.0 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-661115H Secondary (V): 0-110 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-661120H Secondary (V): 0-110 | Capacity: 2.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-661130H Secondary (V): 0-110 | Capacity: 3.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-661150H Secondary (V): 0-110 | Capacity: 5.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-662205H Secondary (V): 0-220 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-662210H Secondary (V): 0-220 | Capacity: 1.0 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-662215H Secondary (V): 0-220 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-662220H Secondary (V): 0-220 | Capacity: 2.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-662230H Secondary (V): 0-220 | Capacity: 3.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-662250H Secondary (V): 0-220 | Capacity: 5.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-661205H Secondary (V): 0-110-220 | Capacity: 0.5 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-661210H Secondary (V): 0-110-220 | Capacity: 1.0 kVA VA | Fuse (A): 1.0 | Dimensions W x H x D (mm): 160 x 267 x 290
WYPT-661215H Secondary (V): 0-110-220 | Capacity: 1.5 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-661220H Secondary (V): 0-110-220 | Capacity: 2.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 180 x 283 x 310
WYPT-661230H Secondary (V): 0-110-220 | Capacity: 3.0 kVA VA | Fuse (A): 2.0 | Dimensions W x H x D (mm): 220 x 322 x 356
WYPT-661250H Secondary (V): 0-110-220 | Capacity: 5.0 kVA VA | Fuse (A): 4.0 | Dimensions W x H x D (mm): 220 x 322 x 356
