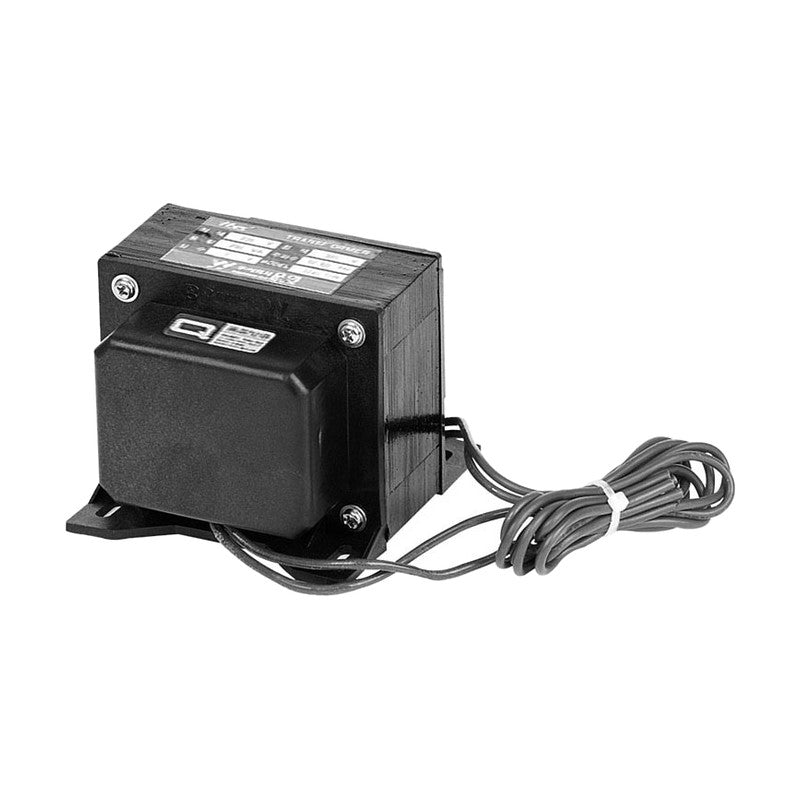

• Woonyoung Lead-Wire Auto Transformer WYAU-DE Series (220 V to 110 V)
1 1

Woonyoung Lead-Wire Auto Transformer WYAU-DE Series (220 V to 110 V)

Woonyoung Lead-Wire Auto Transformer WYAU-DE Series (220 V to 110 V)

Single-phase auto transformer with lead-wire connection for 220 V to 110 V conversion.

Key features

  • Lead-wire connection (0.75 mm2)
  • Winding protection cover
  • Insulation class B

Specifications

Phase Single phase
Winding Auto transformer
WYAU-75DE Type: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 75 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WYAU-100DE Type: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.60
WYAU-150DE Type: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WYAU-200DE Type: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 200 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WYAU-300DE Type: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 300 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 3.20
Industrial TransformersWoonyoung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Lead-Wire Auto Transformer WYAU-DE Series (220 V to 110 V)

Brand Woonyoung·Industrial Transformers

Available part numbers (5)

WYAU-75DE, WYAU-100DE, WYAU-150DE, WYAU-200DE, WYAU-300DE

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYAU-75DEType: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 75 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WYAU-100DEType: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.60
WYAU-150DEType: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WYAU-200DEType: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 200 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WYAU-300DEType: WE | Voltage taps (V): Primary 0-220 (black/red leads), Secondary 0-110 (black/brown leads) | Capacity: 300 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 3.20
