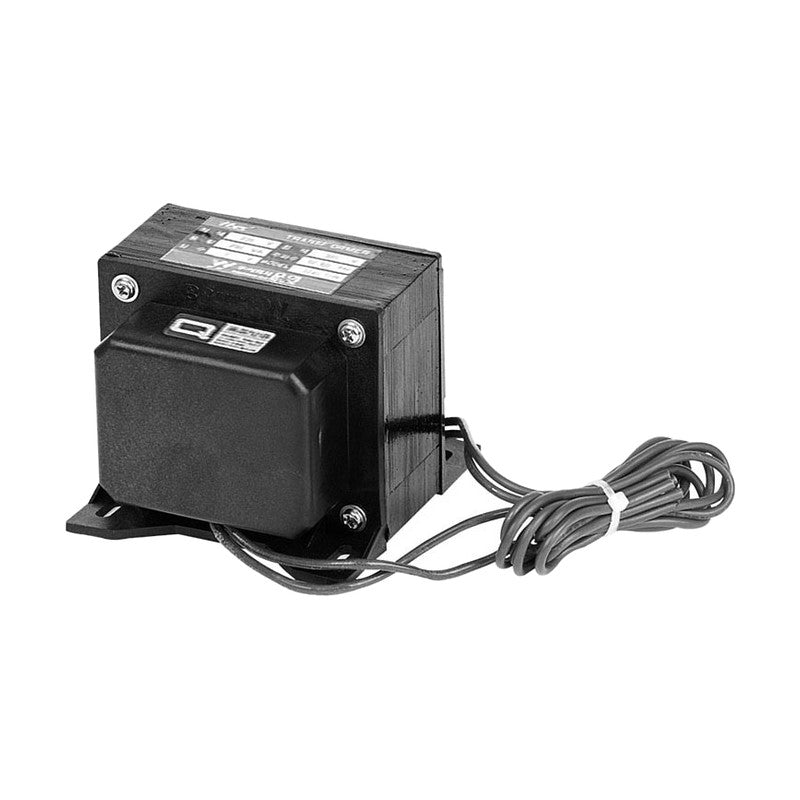

Woonyoung Lead-Wire Auto Transformer WYAU-DWE Series (380-440 V to 220 V)

Woonyoung Lead-Wire Auto Transformer WYAU-DWE Series (380-440 V to 220 V)

Single-phase auto transformer with lead-wire connection for 380/440 V to 220 V conversion.

Key features

  • Lead-wire connection (0.75 mm2)
  • Winding protection cover
  • Insulation class B

Specifications

Phase Single phase
Winding Auto transformer
WYAU-75DWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 75 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WYAU-100DWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.60
WYAU-150DWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WYAU-200DWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 200 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WYAU-300DWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 300 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 3.20
WYAU-500DWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 500 VA | Dimensions W x H x D (mm): 118 x 99 x 110 | Weight (kg): 4.78
WYAU-1KDWE Type: WE | Voltage taps (V): Primary 0-380-440 (black/green/brown leads), Secondary 0-220 (black/red leads) | Capacity: 1 kVA | Dimensions W x H x D (mm): 137 x 115 x 119 | Weight (kg): 6.89
Industrial TransformersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Lead-Wire Auto Transformer WYAU-DWE Series (380-440 V to 220 V)

Brand Woonyoung·Industrial Transformers

Available part numbers (7)

WYAU-75DWE, WYAU-100DWE, WYAU-150DWE, WYAU-200DWE, WYAU-300DWE, WYAU-500DWE, WYAU-1KDWE

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
