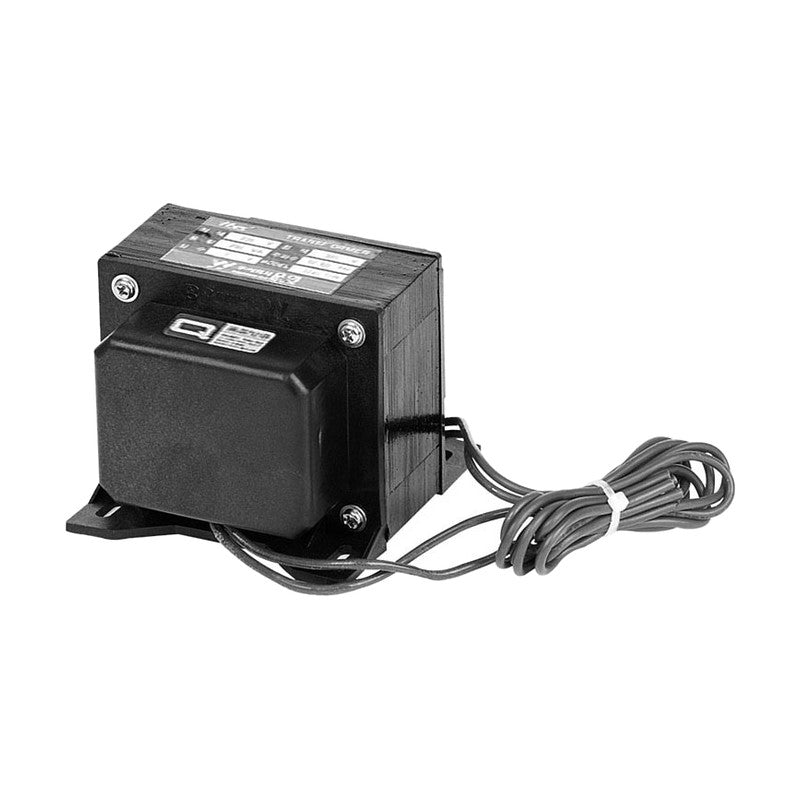

Woonyoung Lead-Wire Covered Transformer WYEW-AP / WYEW-HP Series (24 V output)

Woonyoung Lead-Wire Covered Transformer WYEW-AP / WYEW-HP Series (24 V output)

Single-phase isolation transformer with AC 220 or 380/440 V input and AC 24 V output, with lead wires and a winding protection cover for dusty or humid locations.

Key features

  • Lead-wire connection
  • Winding protection cover
  • Suited to dusty or humid locations
  • Insulation class B

Specifications

Phase Single phase
Type WE (lead wire)
Insulation class B
WYEW-40AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 1.30
WYEW-60AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 1.46
WYEW-80AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 1.95
WYEW-100AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 2.27
WYEW-150AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Primary wire: 0.75 mm2 | Secondary wire: 1.25 mm2 | Weight (kg): 2.84
WYEW-200AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 200 VA | Dimensions W x H x D (mm): 108 x 93 x 106 | Primary wire: 0.75 mm2 | Secondary wire: 1.25 mm2 | Weight (kg): 3.45
WYEW-300AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 300 VA | Dimensions W x H x D (mm): 118 x 99 x 110 | Primary wire: 0.75 mm2 | Secondary wire: 2.00 mm2 | Weight (kg): 4.78
WYEW-500AP Primary (V): 220 (red lead) | Secondary (V): 24 (white lead) | Capacity: 500 VA | Dimensions W x H x D (mm): 137 x 115 x 119 | Primary wire: 0.75 mm2 | Secondary wire: 3.50 mm2 | Weight (kg): 6.89
WYEW-HP40AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 1.30
WYEW-HP60AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 1.46
WYEW-HP80AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 1.95
WYEW-HP100AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Primary wire: 0.75 mm2 | Secondary wire: 0.75 mm2 | Weight (kg): 2.27
WYEW-HP150AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Primary wire: 0.75 mm2 | Secondary wire: 1.25 mm2 | Weight (kg): 2.84
WYEW-HP200AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 200 VA | Dimensions W x H x D (mm): 108 x 90 x 110 | Primary wire: 0.75 mm2 | Secondary wire: 1.25 mm2 | Weight (kg): 3.45
WYEW-HP300AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 300 VA | Dimensions W x H x D (mm): 118 x 99 x 110 | Primary wire: 0.75 mm2 | Secondary wire: 2.00 mm2 | Weight (kg): 4.78
WYEW-HP500AP Primary (V): 0-380/440 (black/brown/red leads) | Secondary (V): 0-24 (white lead) | Capacity: 500 VA | Dimensions W x H x D (mm): 137 x 115 x 119 | Primary wire: 0.75 mm2 | Secondary wire: 3.50 mm2 | Weight (kg): 6.89
