Woonyoung Lead-Wire Isolation Transformer WY42-DE Series (380-440 V to 220 V)

Woonyoung Lead-Wire Isolation Transformer WY42-DE Series (380-440 V to 220 V)

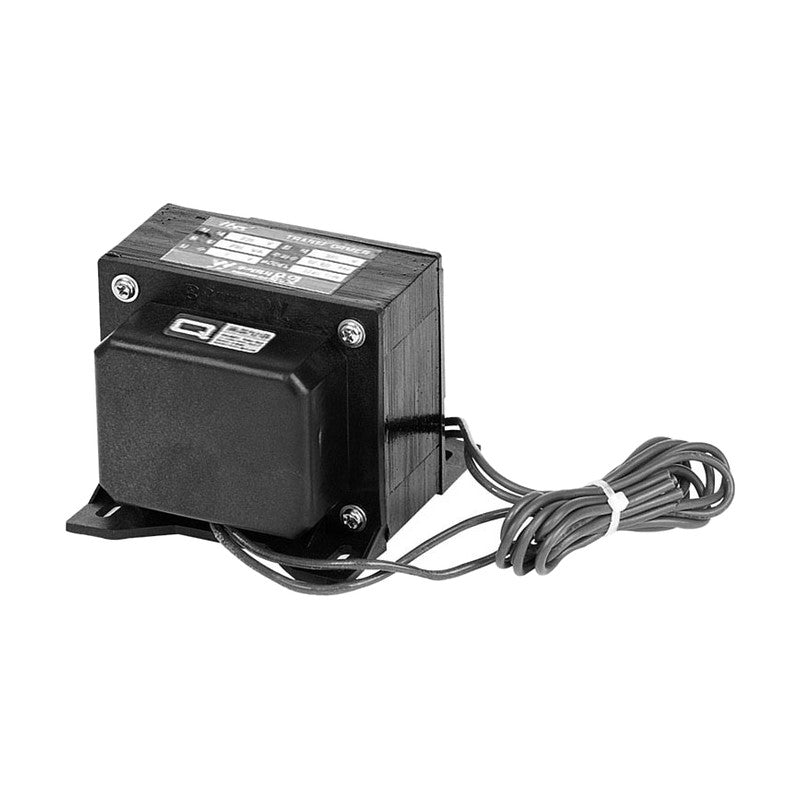

Single-phase isolation transformer with lead-wire connection, 380/440 V input and 220 V output.

Key features

  • Lead-wire connection (0.75 mm2 primary and secondary)
  • Winding protection cover
  • CE certified

Specifications

Phase Single phase
WY42-40DE Type: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WY42-60DE Type: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.60
WY42-80DE Type: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WY42-100DE Type: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WY42-150DE Type: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 3.20
Industrial TransformersWoonyoung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Lead-Wire Isolation Transformer WY42-DE Series (380-440 V to 220 V)

Brand Woonyoung·Industrial Transformers

Available part numbers (5)

WY42-40DE, WY42-60DE, WY42-80DE, WY42-100DE, WY42-150DE

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY42-40DEType: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WY42-60DEType: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.60
WY42-80DEType: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WY42-100DEType: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WY42-150DEType: WE | Primary (V): 0-380-440 (black/blue/yellow leads) | Secondary (V): 0-220 (black/red leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 3.20
