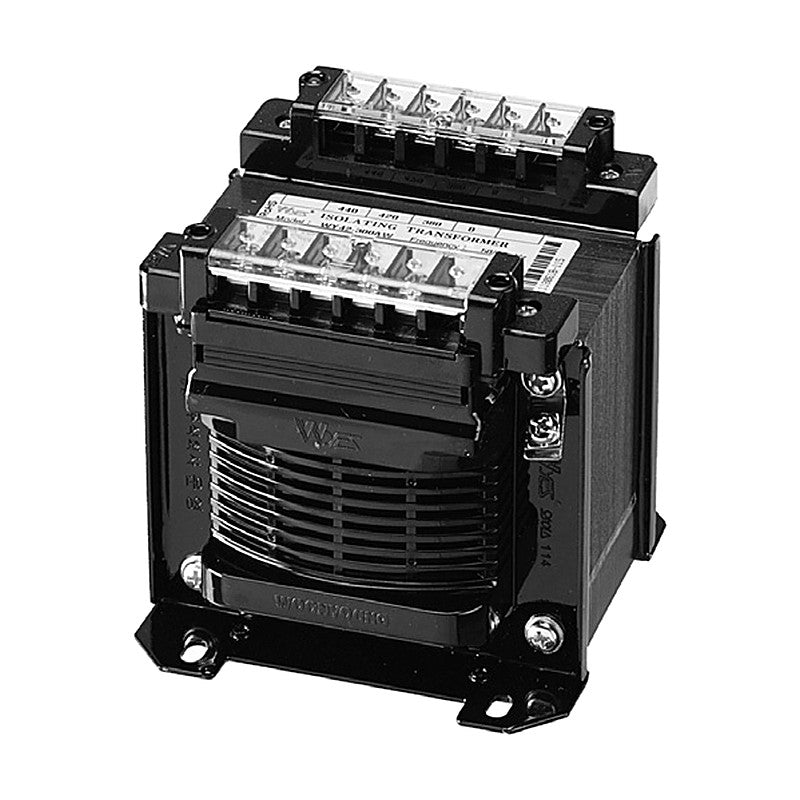

Woonyoung Multi-Tap Isolation Transformer WYTB-AP Series

Woonyoung Multi-Tap Isolation Transformer WYTB-AP Series

Single-phase isolation transformer with 110/200/220 V primary and multi-tap low-voltage secondary from 15 V to 50 V.

Key features

  • Multiple secondary voltage taps
  • Terminal block (WT) type
  • Rated capacity at the maximum voltage tap
  • Insulation class B

Specifications

Phase Single phase
Type WT (terminal block)
Primary (V) 0-110-200-220-(E)
Insulation class B
WYTB-1540AP Secondary (V): 0-6-9-12-15 | Capacity: 40 VA | Secondary current (A): 2.5 | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WYTB-1560AP Secondary (V): 0-6-9-12-15 | Capacity: 60 VA | Secondary current (A): 4 | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYTB-1580AP Secondary (V): 0-6-9-12-15 | Capacity: 80 VA | Secondary current (A): 5 | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WYTB-15100AP Secondary (V): 0-6-9-12-15 | Capacity: 100 VA | Secondary current (A): 7 | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WYTB-15150AP Secondary (V): 0-6-9-12-15 | Capacity: 150 VA | Secondary current (A): 10 | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYTB-15200AP Secondary (V): 0-6-9-12-15 | Capacity: 200 VA | Secondary current (A): 13 | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYTB-15300AP Secondary (V): 0-6-9-12-15 | Capacity: 300 VA | Secondary current (A): 20 | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYTB-2640AP Secondary (V): 0-12-18-22-24-26 | Capacity: 40 VA | Secondary current (A): 1.5 | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WYTB-2660AP Secondary (V): 0-12-18-22-24-26 | Capacity: 60 VA | Secondary current (A): 2 | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYTB-2680AP Secondary (V): 0-12-18-22-24-26 | Capacity: 80 VA | Secondary current (A): 3 | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WYTB-26100AP Secondary (V): 0-12-18-22-24-26 | Capacity: 100 VA | Secondary current (A): 4 | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WYTB-26150AP Secondary (V): 0-12-18-22-24-26 | Capacity: 150 VA | Secondary current (A): 6 | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYTB-26200AP Secondary (V): 0-12-18-22-24-26 | Capacity: 200 VA | Secondary current (A): 8 | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYTB-26300AP Secondary (V): 0-12-18-22-24-26 | Capacity: 300 VA | Secondary current (A): 11 | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYTB-26500AP Secondary (V): 0-12-18-22-24-26 | Capacity: 500 VA | Secondary current (A): 20 | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WYTB-26750AP Secondary (V): 0-12-22-24-26 | Capacity: 750 VA | Secondary current (A): 30 | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WYTB-261KAP Secondary (V): 0-12-22-24-26 | Capacity: 1 kVA | Secondary current (A): 40 | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WYTB-261.5KAP Secondary (V): 0-12-22-24-26 | Capacity: 1.5 kVA | Secondary current (A): 60 | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 17.00
WYTB-262KAP Secondary (V): 0-12-22-24-26 | Capacity: 2 kVA | Secondary current (A): 80 | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WYTB-3240AP Secondary (V): 0-26-28-30-32 | Capacity: 40 VA | Secondary current (A): 1.2 | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WYTB-3260AP Secondary (V): 0-26-28-30-32 | Capacity: 60 VA | Secondary current (A): 1.8 | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYTB-3280AP Secondary (V): 0-26-28-30-32 | Capacity: 80 VA | Secondary current (A): 2.5 | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WYTB-32100AP Secondary (V): 0-26-28-30-32 | Capacity: 100 VA | Secondary current (A): 3 | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WYTB-32150AP Secondary (V): 0-26-28-30-32 | Capacity: 150 VA | Secondary current (A): 6 | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYTB-32200AP Secondary (V): 0-26-28-30-32 | Capacity: 200 VA | Secondary current (A): 6 | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYTB-32300AP Secondary (V): 0-26-28-30-32 | Capacity: 300 VA | Secondary current (A): 9 | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYTB-32500AP Secondary (V): 0-26-28-30-32 | Capacity: 500 VA | Secondary current (A): 15 | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WYTB-32750AP Secondary (V): 0-26-28-30-32 | Capacity: 750 VA | Secondary current (A): 23 | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WYTB-321KAP Secondary (V): 0-26-28-30-32 | Capacity: 1 kVA | Secondary current (A): 30 | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WYTB-321.5KAP Secondary (V): 0-26-28-30-32 | Capacity: 1.5 kVA | Secondary current (A): 60 | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 17.00
WYTB-322KAP Secondary (V): 0-26-28-30-32 | Capacity: 2 kVA | Secondary current (A): 80 | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WYTB-3640AP Secondary (V): 0-18-24-28-32-36 | Capacity: 40 VA | Secondary current (A): 1 | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WYTB-3660AP Secondary (V): 0-18-24-28-32-36 | Capacity: 60 VA | Secondary current (A): 1.6 | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYTB-3680AP Secondary (V): 0-18-24-28-32-36 | Capacity: 80 VA | Secondary current (A): 2.2 | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WYTB-36100AP Secondary (V): 0-18-24-28-32-36 | Capacity: 100 VA | Secondary current (A): 3 | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WYTB-36150AP Secondary (V): 0-18-24-28-32-36 | Capacity: 150 VA | Secondary current (A): 6 | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYTB-36200AP Secondary (V): 0-18-24-28-32-36 | Capacity: 200 VA | Secondary current (A): 5.5 | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYTB-36300AP Secondary (V): 0-18-24-28-32-36 | Capacity: 300 VA | Secondary current (A): 8.3 | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYTB-36500AP Secondary (V): 0-18-24-28-32-36 | Capacity: 500 VA | Secondary current (A): 14 | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WYTB-36750AP Secondary (V): 0-18-24-28-32-36 | Capacity: 750 VA | Secondary current (A): 20 | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WYTB-361KAP Secondary (V): 0-18-24-28-32-36 | Capacity: 1 kVA | Secondary current (A): 27 | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
WYTB-361.5KAP Secondary (V): 0-18-24-28-32-36 | Capacity: 1.5 kVA | Secondary current (A): 60 | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 17.00
WYTB-362KAP Secondary (V): 0-18-24-28-32-36 | Capacity: 2 kVA | Secondary current (A): 80 | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WYTB-5040AP Secondary (V): 0-25-40-45-50 | Capacity: 40 VA | Secondary current (A): 0.8 | Dimensions W x H x D (mm): 79 x 89 x 83 | Weight (kg): 1.31
WYTB-5060AP Secondary (V): 0-25-40-45-50 | Capacity: 60 VA | Secondary current (A): 1.2 | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYTB-5080AP Secondary (V): 0-25-40-45-50 | Capacity: 80 VA | Secondary current (A): 1.6 | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WYTB-50100AP Secondary (V): 0-25-40-45-50 | Capacity: 100 VA | Secondary current (A): 2 | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WYTB-50150AP Secondary (V): 0-25-40-45-50 | Capacity: 150 VA | Secondary current (A): 6 | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYTB-50200AP Secondary (V): 0-25-40-45-50 | Capacity: 200 VA | Secondary current (A): 4 | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYTB-50300AP Secondary (V): 0-25-40-45-50 | Capacity: 300 VA | Secondary current (A): 6 | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYTB-50500AP Secondary (V): 0-25-40-45-50 | Capacity: 500 VA | Secondary current (A): 10 | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WYTB-50750AP Secondary (V): 0-25-40-45-50 | Capacity: 750 VA | Secondary current (A): 15 | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WYTB-501KAP Secondary (V): 0-25-40-45-50 | Capacity: 1 kVA | Secondary current (A): 20 | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
Industrial TransformersWoonyoung
53 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Multi-Tap Isolation Transformer WYTB-AP Series

Brand Woonyoung·Industrial Transformers

Available part numbers (53)

WYTB-1540AP, WYTB-1560AP, WYTB-1580AP, WYTB-15100AP, WYTB-15150AP, WYTB-15200AP, WYTB-15300AP, WYTB-2640AP, WYTB-2660AP, WYTB-2680AP + 43 more — see full table ↓
