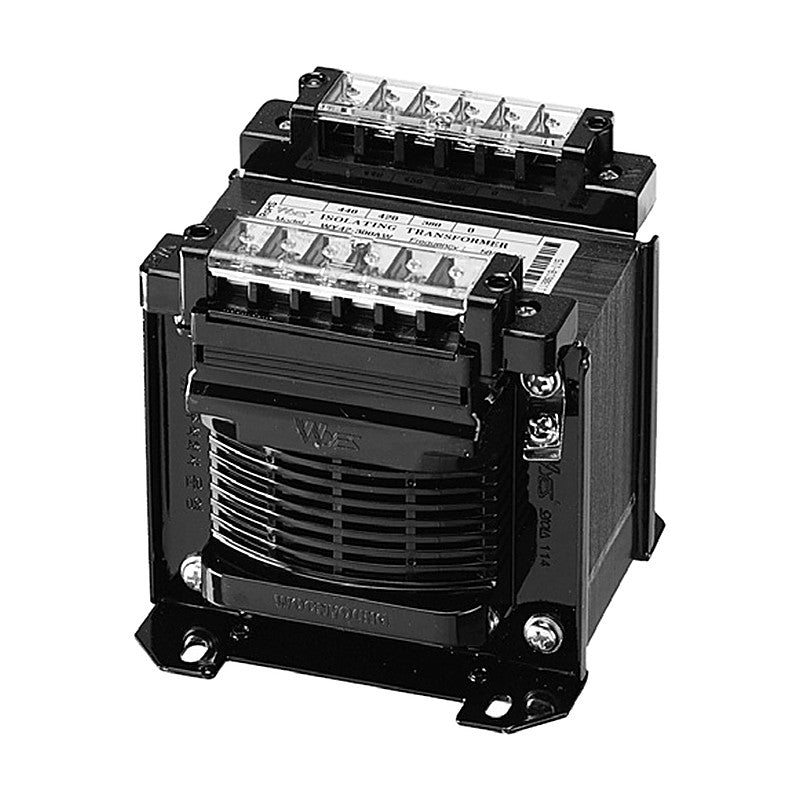

Woonyoung Multi-Voltage Isolation Transformer WYHP-AP Series (12-26 V)

Woonyoung Multi-Voltage Isolation Transformer WYHP-AP Series (12-26 V)

Single-phase isolation transformer with 220/380/440 V primary taps and 12 to 26 V secondary taps.

Key features

  • Primary taps 220/380/440 V
  • Secondary taps 12-26 V
  • Rated capacity at the maximum voltage tap
  • Insulation class B

Specifications

Phase Single phase
Insulation class B
WYHP-25AP Type: WMT | Primary (V): 0-220-380-440 | Secondary (V): E-0-12-24 | Capacity: 25 VA | Dimensions W x H x D (mm): 94 x 77 x 61 | Weight (kg): 0.75
WYHP-50AP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 50 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYHP-100AP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 100 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.59
WYHP-150AP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 150 VA | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYHP-200AP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYHP-300AP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYHP-500AP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WYHP-1KAP Type: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
Industrial TransformersWoonyoung
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Multi-Voltage Isolation Transformer WYHP-AP Series (12-26 V)

Brand Woonyoung·Industrial Transformers

Available part numbers (8)

WYHP-25AP, WYHP-50AP, WYHP-100AP, WYHP-150AP, WYHP-200AP, WYHP-300AP, WYHP-500AP, WYHP-1KAP

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYHP-25APType: WMT | Primary (V): 0-220-380-440 | Secondary (V): E-0-12-24 | Capacity: 25 VA | Dimensions W x H x D (mm): 94 x 77 x 61 | Weight (kg): 0.75
WYHP-50APType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 50 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WYHP-100APType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 100 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.59
WYHP-150APType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 150 VA | Dimensions W x H x D (mm): 112 x 114 x 105 | Weight (kg): 3.45
WYHP-200APType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WYHP-300APType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WYHP-500APType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WYHP-1KAPType: WT | Primary (V): 0-220-380-440-(E) | Secondary (V): 0-12-18-22-24-26 | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 160 x 157 | Weight (kg): 12.30
