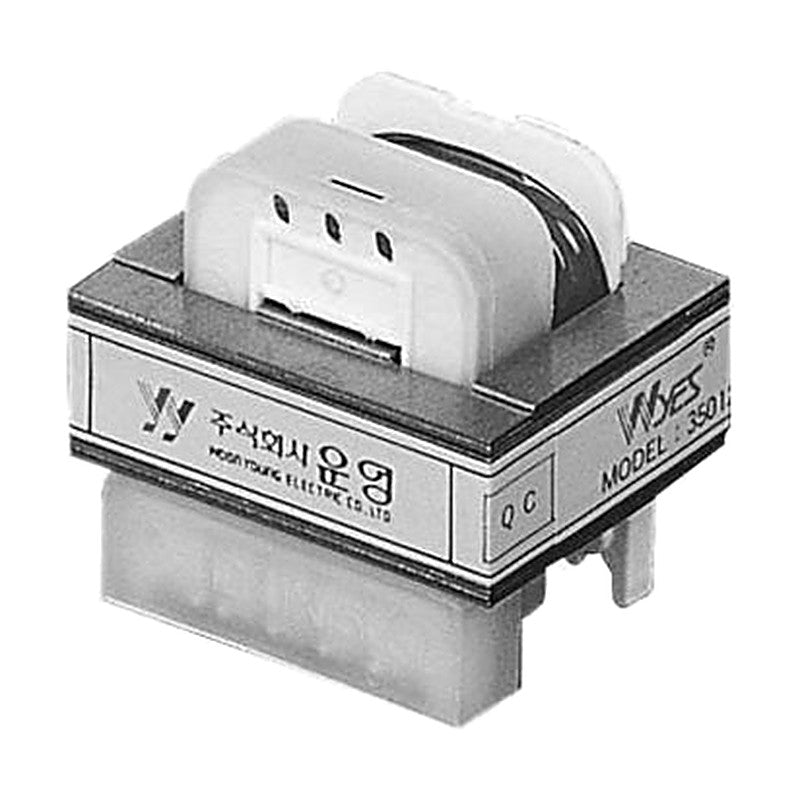

Woonyoung PCB Mount Transformer WYPM Series

Woonyoung PCB Mount Transformer WYPM Series

Single-phase PCB-mount isolation transformer with 110/220 V input and center-tapped output winding.

Key features

  • Mounts directly on printed circuit boards
  • Center-tap secondary winding
  • Galvanic isolation between primary and secondary reduces noise
  • Insulation class B

Specifications

Phase Single phase
Type WP (PCB pin)
Primary (V) 0-110-220
Insulation class B
WYPM-0608 Secondary (V): 6-0-6 | Capacity: 1 VA | Secondary current (mA): 80 | Dimensions W x H x D (mm): 29 x 32 x 27 | Weight (kg): 0.10
WYPM-0612 Secondary (V): 6-0-6 | Capacity: 1.5 VA | Secondary current (mA): 120 | Dimensions W x H x D (mm): 36 x 29 x 37 | Weight (kg): 0.14
WYPM-0633 Secondary (V): 6-0-6 | Capacity: 4 VA | Secondary current (mA): 330 | Dimensions W x H x D (mm): 42 x 47 x 34 | Weight (kg): 0.28
WYPM-0906 Secondary (V): 9-0-9 | Capacity: 1 VA | Secondary current (mA): 60 | Dimensions W x H x D (mm): 29 x 32 x 27 | Weight (kg): 0.10
WYPM-0908 Secondary (V): 9-0-9 | Capacity: 1.5 VA | Secondary current (mA): 80 | Dimensions W x H x D (mm): 36 x 29 x 37 | Weight (kg): 0.14
WYPM-0922 Secondary (V): 9-0-9 | Capacity: 4 VA | Secondary current (mA): 220 | Dimensions W x H x D (mm): 42 x 47 x 34 | Weight (kg): 0.28
WYPM-1204 Secondary (V): 12-0-12 | Capacity: 1 VA | Secondary current (mA): 40 | Dimensions W x H x D (mm): 29 x 32 x 27 | Weight (kg): 0.10
WYPM-1206 Secondary (V): 12-0-12 | Capacity: 1.5 VA | Secondary current (mA): 60 | Dimensions W x H x D (mm): 36 x 29 x 37 | Weight (kg): 0.14
WYPM-1216 Secondary (V): 12-0-12 | Capacity: 4 VA | Secondary current (mA): 160 | Dimensions W x H x D (mm): 42 x 47 x 34 | Weight (kg): 0.28
WYPM-1503 Secondary (V): 15-0-15 | Capacity: 1 VA | Secondary current (mA): 30 | Dimensions W x H x D (mm): 29 x 32 x 27 | Weight (kg): 0.10
WYPM-1505 Secondary (V): 15-0-15 | Capacity: 1.5 VA | Secondary current (mA): 50 | Dimensions W x H x D (mm): 36 x 29 x 37 | Weight (kg): 0.14
WYPM-1513 Secondary (V): 15-0-15 | Capacity: 4 VA | Secondary current (mA): 130 | Dimensions W x H x D (mm): 42 x 47 x 34 | Weight (kg): 0.28
WYPM-1802 Secondary (V): 18-0-18 | Capacity: 1 VA | Secondary current (mA): 20 | Dimensions W x H x D (mm): 29 x 32 x 27 | Weight (kg): 0.10
WYPM-1804 Secondary (V): 18-0-18 | Capacity: 1.5 VA | Secondary current (mA): 40 | Dimensions W x H x D (mm): 36 x 29 x 37 | Weight (kg): 0.14
WYPM-1811 Secondary (V): 18-0-18 | Capacity: 4 VA | Secondary current (mA): 110 | Dimensions W x H x D (mm): 42 x 47 x 34 | Weight (kg): 0.28
