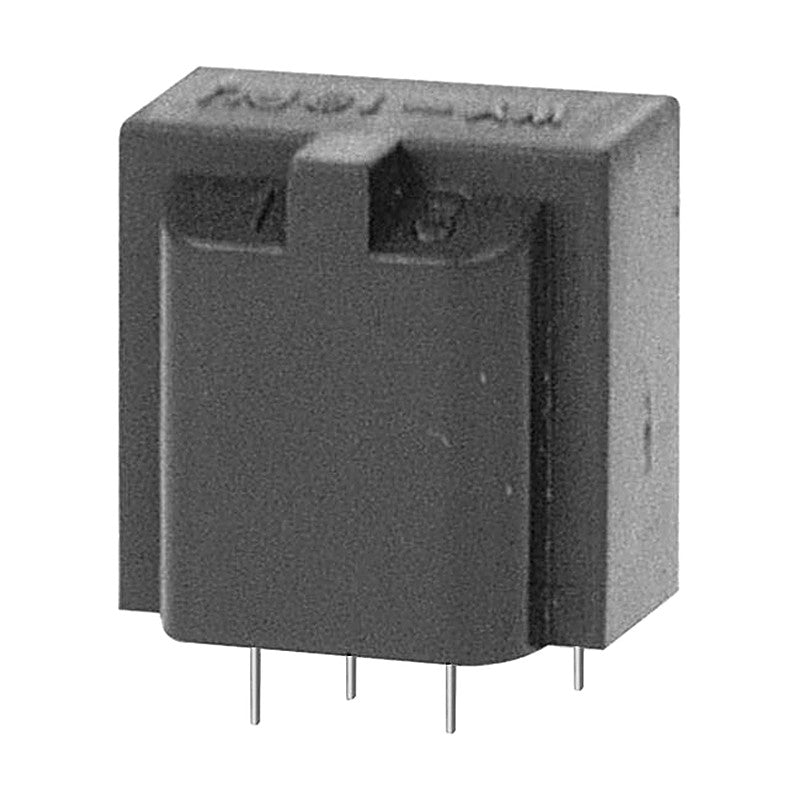

Woonyoung Pulse Transformer WY-19P / WY-13P Series

Woonyoung Pulse Transformer WY-19P / WY-13P Series

Isolation-type 1:1 pulse transformer with epoxy molding in the case, for PCB insertion.

Key features

  • 1:1 isolation pulse transformer
  • Epoxy molded case
  • PCB mounting
WY-19PB Turn ratio: 1:1 | Primary inductance (mH min): 50 | Leakage inductance (mH max): 6.0 | Capacitance (pF typ): 1500 | Start no.: 1.4 | DCR (ohm max): 4.5-4.5 | Figure: 1
WY-19PBB Turn ratio: 1:1:1 | Primary inductance (mH min): 40 | Leakage inductance (mH max): 6.0 | Capacitance (pF typ): 1500 | Start no.: 1.3.5 | DCR (ohm max): 6-6-6 | Figure: 2
WY-19PAA Turn ratio: 1:1:1 | Primary inductance (mH min): 35 | Leakage inductance (mH max): 6.0 | Capacitance (pF typ): 1500 | Start no.: 1.2.3 | DCR (ohm max): 6-6-6 | Figure: 3
WY-13PB Turn ratio: 1:1 | Primary inductance (mH min): 8 | Leakage inductance (mH max): 0.1 | Capacitance (pF typ): 350 | Start no.: 1.3 | DCR (ohm max): 0.15-0.15 | Figure: 4
Industrial TransformersWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Pulse Transformer WY-19P / WY-13P Series

Brand Woonyoung·Industrial Transformers

Available part numbers (4)

WY-19PB, WY-19PBB, WY-19PAA, WY-13PB

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY-19PBTurn ratio: 1:1 | Primary inductance (mH min): 50 | Leakage inductance (mH max): 6.0 | Capacitance (pF typ): 1500 | Start no.: 1.4 | DCR (ohm max): 4.5-4.5 | Figure: 1
WY-19PBBTurn ratio: 1:1:1 | Primary inductance (mH min): 40 | Leakage inductance (mH max): 6.0 | Capacitance (pF typ): 1500 | Start no.: 1.3.5 | DCR (ohm max): 6-6-6 | Figure: 2
WY-19PAATurn ratio: 1:1:1 | Primary inductance (mH min): 35 | Leakage inductance (mH max): 6.0 | Capacitance (pF typ): 1500 | Start no.: 1.2.3 | DCR (ohm max): 6-6-6 | Figure: 3
WY-13PBTurn ratio: 1:1 | Primary inductance (mH min): 8 | Leakage inductance (mH max): 0.1 | Capacitance (pF typ): 350 | Start no.: 1.3 | DCR (ohm max): 0.15-0.15 | Figure: 4
