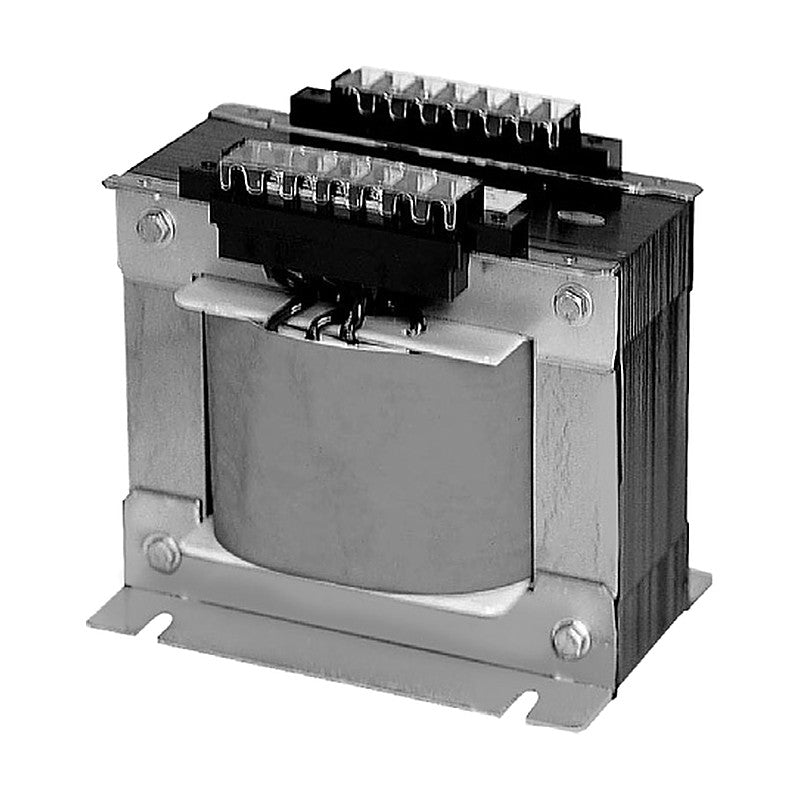

Woonyoung Single-Phase Isolation Transformer WY41-A Series (380-480 V to 100-120 V)

Woonyoung Single-Phase Isolation Transformer WY41-A Series (380-480 V to 100-120 V)

Single-phase isolation transformer for 380 V and 440 V lines with 100/110/120 V secondary taps.

Key features

  • Isolation (double winding) construction
  • Primary and secondary voltage taps
  • Rated capacity at the maximum voltage tap
  • CE certified

Specifications

Phase Single phase
WY41-60A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY41-80A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY41-100A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY41-150A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.20
WY41-200A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY41-300A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY41-500A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY41-750A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY41-1KA Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY41-1.5A Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY41-2KA Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WY41-3KA Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 3 kVA | Dimensions W x H x D (mm): 219 x 226 x 170 | Weight (kg): 26.70
WY41-5KA Type: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 245 x 240 x 192 | Weight (kg): 40.20
Industrial TransformersWoonyoung
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Single-Phase Isolation Transformer WY41-A Series (380-480 V to 100-120 V)

Brand Woonyoung·Industrial Transformers

Available part numbers (13)

WY41-60A, WY41-80A, WY41-100A, WY41-150A, WY41-200A, WY41-300A, WY41-500A, WY41-750A, WY41-1KA, WY41-1.5A + 3 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY41-60AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY41-80AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY41-100AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY41-150AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.20
WY41-200AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY41-300AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY41-500AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY41-750AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY41-1KAType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY41-1.5AType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY41-2KAType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WY41-3KAType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 3 kVA | Dimensions W x H x D (mm): 219 x 226 x 170 | Weight (kg): 26.70
WY41-5KAType: WT | Primary (V): 0-380-420-440-460-480 | Secondary (V): 0-100-110-120-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 245 x 240 x 192 | Weight (kg): 40.20
