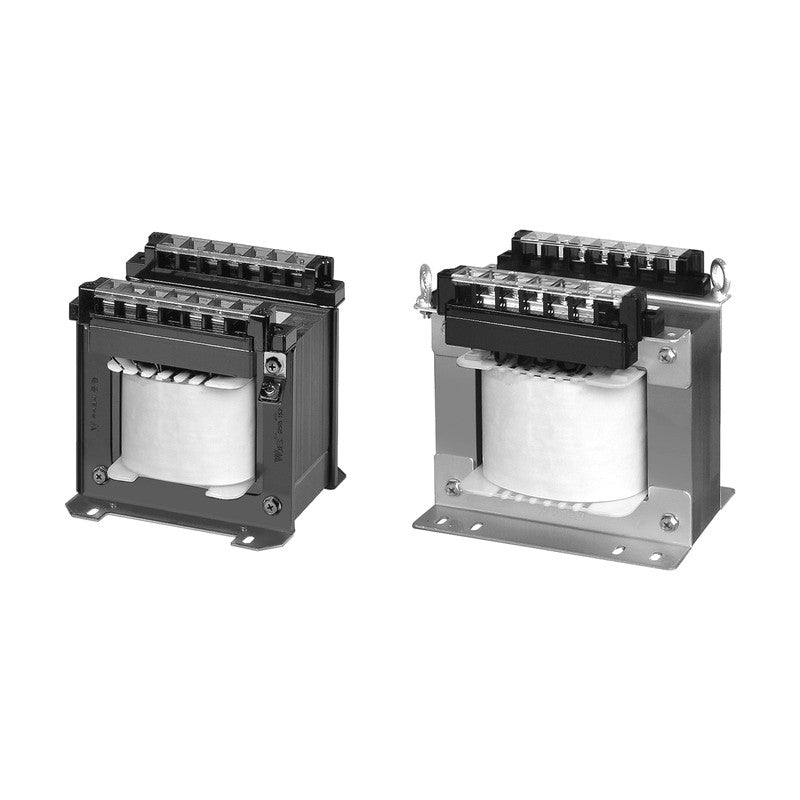

Woonyoung UL Single-Phase Isolation Transformer WY11-UL Series

Woonyoung UL Single-Phase Isolation Transformer WY11-UL Series

Single-phase isolation transformer for general power supply, UL and CE certified for reliability and safety.

Key features

  • UL 5085-1/2 and IEC 61558 compliant
  • UL 1059 terminal block
  • Primary and secondary voltage taps selected at order

Specifications

Phase Single phase
Type WT (terminal block)
Certification UL, CE, RoHS
WY11-100UL Capacity: 100 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 98.4 x 105.9 x 113 | Weight (kg): 3.23
WY11-200UL Capacity: 200 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 120 x 121.5 x 114 | Weight (kg): 4.95
WY11-300UL Capacity: 300 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 140 x 136.5 x 126.2 | Weight (kg): 7.25
WY11-500UL Capacity: 500 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 160.2 x 161.1 x 146 | Weight (kg): 10.70
WY11-750UL Capacity: 750 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 160.2 x 161.1 x 156 | Weight (kg): 12.30
WY11-1KUL Capacity: 1 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 184 x 188 x 150 | Weight (kg): 16.65
WY11-1.5KUL Capacity: 1.5 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 184 x 188 x 170 | Weight (kg): 20.75
WY11-2KUL Capacity: 2 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 219 x 226 x 169 | Weight (kg): 26.80
WY11-2.5KUL Capacity: 2.5 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 243 x 247 x 192 | Weight (kg): 39.00
WY11-3KUL Capacity: 3 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 243 x 247 x 192 | Weight (kg): 40.20
WY11-5KUL Capacity: 5 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 270 x 269 x 200 | Weight (kg): 54.00
Industrial TransformersWoonyoung
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung UL Single-Phase Isolation Transformer WY11-UL Series

Brand Woonyoung·Industrial Transformers

Available part numbers (11)

WY11-100UL, WY11-200UL, WY11-300UL, WY11-500UL, WY11-750UL, WY11-1KUL, WY11-1.5KUL, WY11-2KUL, WY11-2.5KUL, WY11-3KUL + 1 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY11-100ULCapacity: 100 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 98.4 x 105.9 x 113 | Weight (kg): 3.23
WY11-200ULCapacity: 200 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 120 x 121.5 x 114 | Weight (kg): 4.95
WY11-300ULCapacity: 300 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 140 x 136.5 x 126.2 | Weight (kg): 7.25
WY11-500ULCapacity: 500 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 160.2 x 161.1 x 146 | Weight (kg): 10.70
WY11-750ULCapacity: 750 VA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 160.2 x 161.1 x 156 | Weight (kg): 12.30
WY11-1KULCapacity: 1 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 184 x 188 x 150 | Weight (kg): 16.65
WY11-1.5KULCapacity: 1.5 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 184 x 188 x 170 | Weight (kg): 20.75
WY11-2KULCapacity: 2 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 219 x 226 x 169 | Weight (kg): 26.80
WY11-2.5KULCapacity: 2.5 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 243 x 247 x 192 | Weight (kg): 39.00
WY11-3KULCapacity: 3 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 243 x 247 x 192 | Weight (kg): 40.20
WY11-5KULCapacity: 5 kVA | Primary (V): 100/110/115/120 | Secondary (V): 100/110/115/120 | Dimensions W x H x D (mm): 270 x 269 x 200 | Weight (kg): 54.00
