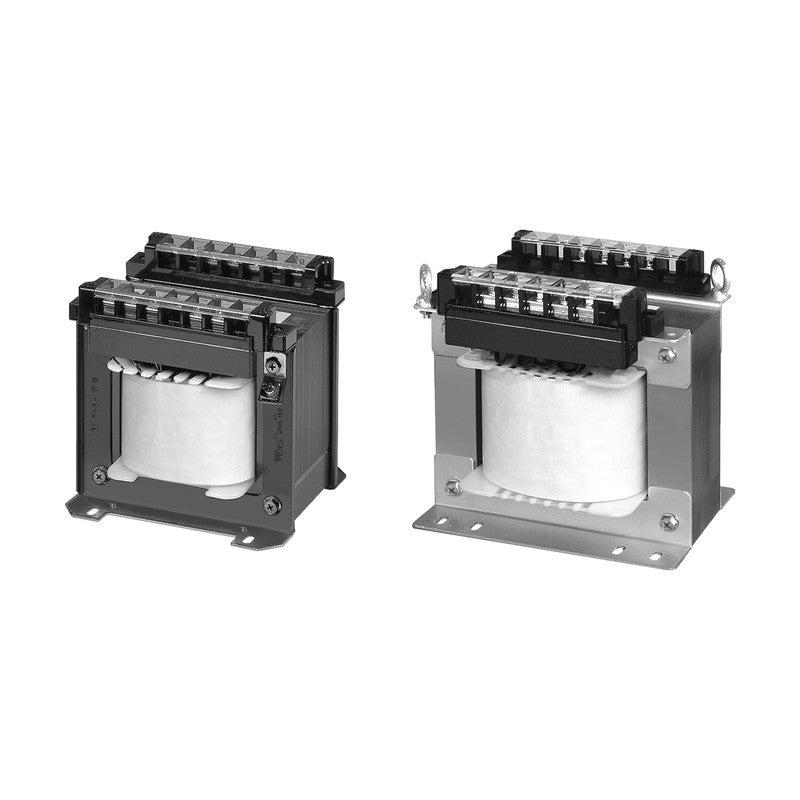

Woonyoung UL Single-Phase Isolation Transformer WY22-UL Series

Woonyoung UL Single-Phase Isolation Transformer WY22-UL Series

Single-phase isolation transformer for general power supply, UL and CE certified for reliability and safety.

Key features

  • UL 5085-1/2 and IEC 61558 compliant
  • UL 1059 terminal block
  • Shielded winding with E (shield) terminal
  • Primary and secondary voltage taps selected at order
  • Insulation class H (7.5 kVA and above)

Specifications

Phase Single phase
Type WT (terminal block)
Certification UL, CE, RoHS
WY22-100UL Capacity: 100 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 98.4 x 105.9 x 113 | Weight (kg): 3.23
WY22-200UL Capacity: 200 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 120 x 121.5 x 114 | Weight (kg): 4.95
WY22-300UL Capacity: 300 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 140 x 136.5 x 126.2 | Weight (kg): 7.25
WY22-500UL Capacity: 500 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 160.2 x 161.1 x 146 | Weight (kg): 10.70
WY22-750UL Capacity: 750 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 160.2 x 161.1 x 156 | Weight (kg): 12.30
WY22-1KUL Capacity: 1 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 184 x 188 x 150 | Weight (kg): 16.65
WY22-1.5KUL Capacity: 1.5 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 184 x 188 x 170 | Weight (kg): 20.75
WY22-2KUL Capacity: 2 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 219 x 226 x 169 | Weight (kg): 26.80
WY22-3KUL Capacity: 3 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 243 x 247 x 192 | Weight (kg): 40.20
WY22-5KUL Capacity: 5 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 270 x 269 x 200 | Weight (kg): 54.00
WY22-7.5KUL Capacity: 7.5 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 270 x 397 x 203 | Weight (kg): 70.00
WY22-10KUL Capacity: 10 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 310 x 411 x 215 | Weight (kg): 85.00
WY22-15KUL Capacity: 15 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 330 x 403 x 269 | Weight (kg): 110.00
WY22-20KUL Capacity: 20 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 330 x 438 x 279 | Weight (kg): 130.00
WY22-30KUL Capacity: 30 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 350 x 523 x 314 | Weight (kg): 195.00
Industrial TransformersWoonyoung
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung UL Single-Phase Isolation Transformer WY22-UL Series

Brand Woonyoung·Industrial Transformers

Available part numbers (15)

WY22-100UL, WY22-200UL, WY22-300UL, WY22-500UL, WY22-750UL, WY22-1KUL, WY22-1.5KUL, WY22-2KUL, WY22-3KUL, WY22-5KUL + 5 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY22-100ULCapacity: 100 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 98.4 x 105.9 x 113 | Weight (kg): 3.23
WY22-200ULCapacity: 200 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 120 x 121.5 x 114 | Weight (kg): 4.95
WY22-300ULCapacity: 300 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 140 x 136.5 x 126.2 | Weight (kg): 7.25
WY22-500ULCapacity: 500 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 160.2 x 161.1 x 146 | Weight (kg): 10.70
WY22-750ULCapacity: 750 VA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 160.2 x 161.1 x 156 | Weight (kg): 12.30
WY22-1KULCapacity: 1 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 184 x 188 x 150 | Weight (kg): 16.65
WY22-1.5KULCapacity: 1.5 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 184 x 188 x 170 | Weight (kg): 20.75
WY22-2KULCapacity: 2 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 219 x 226 x 169 | Weight (kg): 26.80
WY22-3KULCapacity: 3 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 243 x 247 x 192 | Weight (kg): 40.20
WY22-5KULCapacity: 5 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 270 x 269 x 200 | Weight (kg): 54.00
WY22-7.5KULCapacity: 7.5 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 270 x 397 x 203 | Weight (kg): 70.00
WY22-10KULCapacity: 10 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 310 x 411 x 215 | Weight (kg): 85.00
WY22-15KULCapacity: 15 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 330 x 403 x 269 | Weight (kg): 110.00
WY22-20KULCapacity: 20 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 330 x 438 x 279 | Weight (kg): 130.00
WY22-30KULCapacity: 30 kVA | Primary (V): 200/208/220/230/240 | Secondary (V): 200/208/220/230/240 | Dimensions W x H x D (mm): 350 x 523 x 314 | Weight (kg): 195.00
