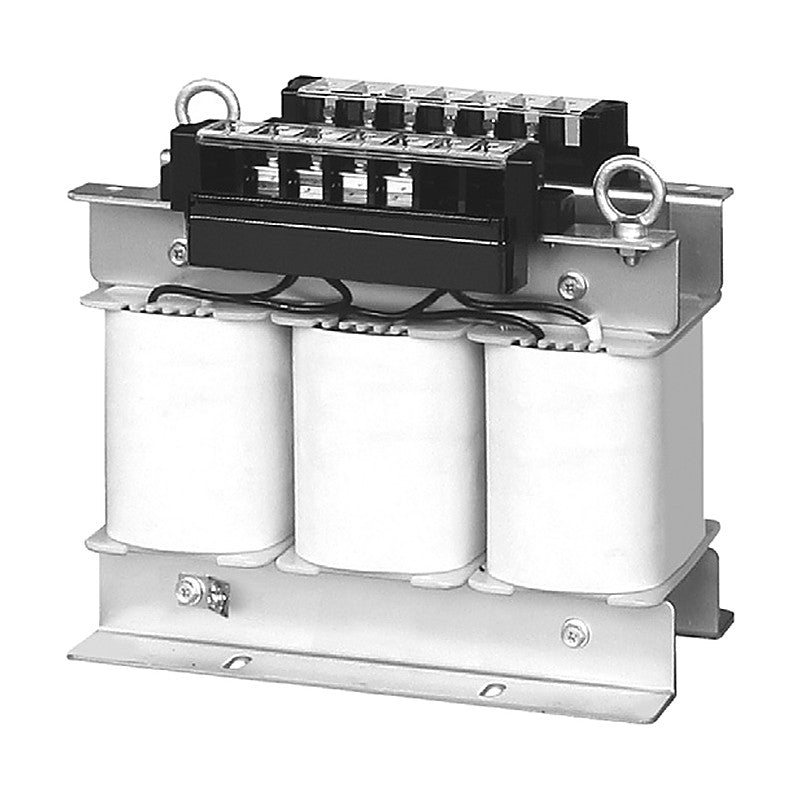

Woonyoung UL Three-Phase Isolation Transformer WY3P44-UL Series

Woonyoung UL Three-Phase Isolation Transformer WY3P44-UL Series

Three-phase isolation transformer for general power supply, UL and CE certified for reliability and safety.

Key features

  • UL 5085-1/2 and IEC 61558 compliant
  • Shielded winding with E (shield) terminal
  • Primary and secondary voltage taps selected at order

Specifications

Phase Three phase
Type WT (terminal block)
Certification UL, CE, RoHS
WY3P44-112.5KUL Capacity: 112.5 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 720 x 695 x 665 | Weight (kg): 540
WY3P44-125KUL Capacity: 125 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 720 x 695 x 665 | Weight (kg): 560
WY3P44-150KUL Capacity: 150 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 720 x 695 x 685 | Weight (kg): 670
WY3P44-175KUL Capacity: 175 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 810 x 1015 x 800 | Weight (kg): 850
WY3P44-200KUL Capacity: 200 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 810 x 1015 x 800 | Weight (kg): 850
WY3P44-225KUL Capacity: 225 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 810 x 1015 x 800 | Weight (kg): 900
WY3P44-250KUL Capacity: 250 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 830 x 1165 x 810 | Weight (kg): 1100
WY3P44-275KUL Capacity: 275 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 830 x 1165 x 830 | Weight (kg): 1250
WY3P44-300KUL Capacity: 300 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 910 x 1185 x 850 | Weight (kg): 1400
WY3P44-325KUL Capacity: 325 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 910 x 1185 x 850 | Weight (kg): 1600
Industrial TransformersWoonyoung
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung UL Three-Phase Isolation Transformer WY3P44-UL Series

Brand Woonyoung·Industrial Transformers

Available part numbers (10)

WY3P44-112.5KUL, WY3P44-125KUL, WY3P44-150KUL, WY3P44-175KUL, WY3P44-200KUL, WY3P44-225KUL, WY3P44-250KUL, WY3P44-275KUL, WY3P44-300KUL, WY3P44-325KUL

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY3P44-112.5KULCapacity: 112.5 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 720 x 695 x 665 | Weight (kg): 540
WY3P44-125KULCapacity: 125 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 720 x 695 x 665 | Weight (kg): 560
WY3P44-150KULCapacity: 150 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 720 x 695 x 685 | Weight (kg): 670
WY3P44-175KULCapacity: 175 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 810 x 1015 x 800 | Weight (kg): 850
WY3P44-200KULCapacity: 200 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 810 x 1015 x 800 | Weight (kg): 850
WY3P44-225KULCapacity: 225 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 810 x 1015 x 800 | Weight (kg): 900
WY3P44-250KULCapacity: 250 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 830 x 1165 x 810 | Weight (kg): 1100
WY3P44-275KULCapacity: 275 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 830 x 1165 x 830 | Weight (kg): 1250
WY3P44-300KULCapacity: 300 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 910 x 1185 x 850 | Weight (kg): 1400
WY3P44-325KULCapacity: 325 kVA | Primary (V): Y-N 380/400/415/440/460/480 | Secondary (V): Delta 380/400/415/440/460/480 | Dimensions W x H x D (mm): 910 x 1185 x 850 | Weight (kg): 1600
