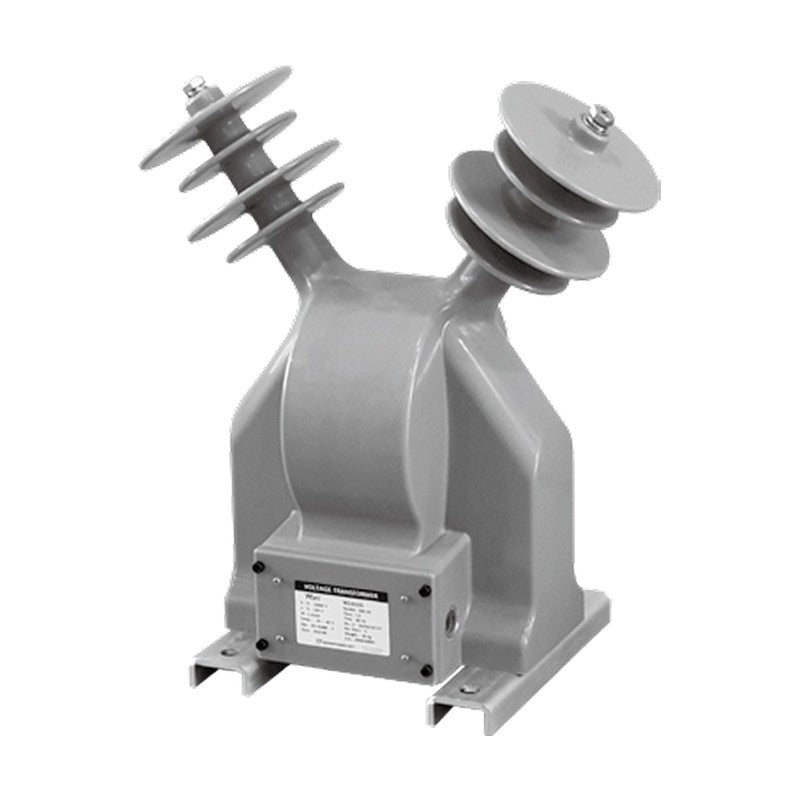

Woonyoung W24V2G High-Voltage Unearthed (2-Pole) Voltage Transformer, 24 kV Outdoor Cast Resin

Woonyoung W24V2G High-Voltage Unearthed (2-Pole) Voltage Transformer, 24 kV Outdoor Cast Resin

Outdoor epoxy-resin cast double-pole unearthed voltage transformer connected line-to-line for systems up to 24 kV, stepping down primary voltage for metering instruments and protective relays.

Key features

  • Epoxy resin cast insulation for systems up to 24 kV
  • Stable insulation and electrical characteristics with good mechanical strength
  • Easy to maintain; available with single or multiple secondary taps
  • Designed for metering and/or protection, outdoor service
  • Manufactured by automatic vacuum casting

Specifications

Highest voltage for equipment (Um) 24 kV
Power-frequency withstand voltage (60 s) 50 kV
Lightning impulse withstand voltage (1.2/50 us) 125 kV
Rated frequency 50 Hz, 60 Hz, others on request
Rated primary voltage 22000 V
Rated secondary voltage 110 V, 220 V
Rated voltage factor 1.2 Vn cont.
Insulation class (IEC 60085) E
Standard IEC / IEEE / KS, etc.
W24V2G Variant: Standard | Highest voltage: 24 kV | Rated primary voltage: 22000 V | Weight: 45 kg
