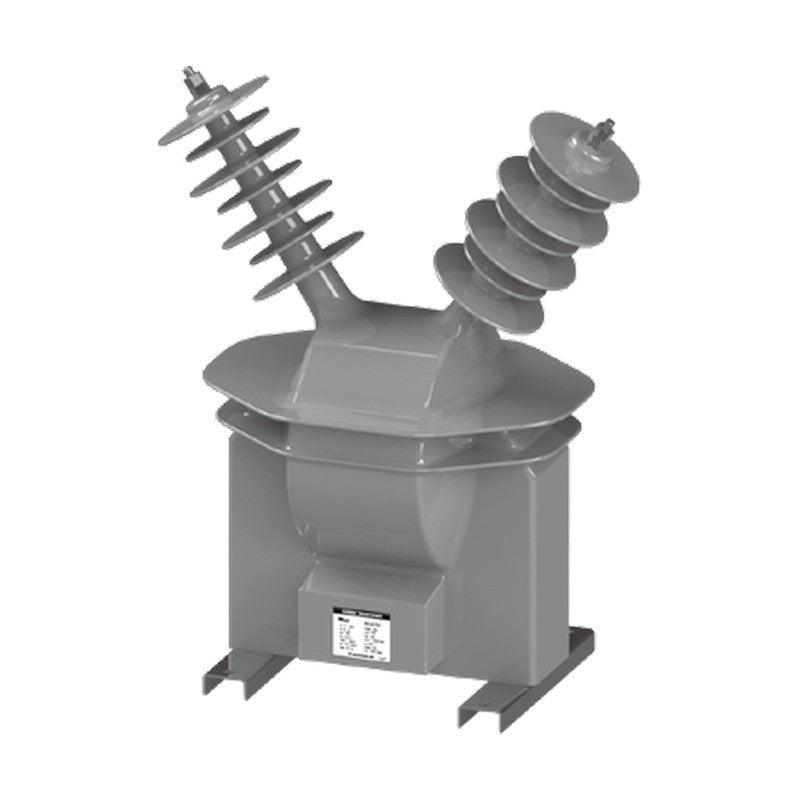

Woonyoung W36V2G High-Voltage Unearthed (2-Pole) Voltage Transformer, 36 kV Outdoor Cast Resin

Woonyoung W36V2G High-Voltage Unearthed (2-Pole) Voltage Transformer, 36 kV Outdoor Cast Resin

Outdoor epoxy-resin cast double-pole unearthed voltage transformer connected line-to-line for systems up to 36 kV, stepping down primary voltage for metering instruments and protective relays.

Key features

  • Epoxy resin cast insulation for systems up to 36 kV
  • Stable insulation and electrical characteristics with good mechanical strength
  • Easy to maintain; available with single or multiple secondary taps
  • Designed for metering and/or protection, outdoor service
  • Manufactured by automatic vacuum casting

Specifications

Highest voltage for equipment (Um) 36 kV
Power-frequency withstand voltage (60 s) 70 (80) kV
Lightning impulse withstand voltage (1.2/50 us) 170 (200) kV
Rated frequency 50 Hz, 60 Hz, others on request
Rated primary voltage 33000 V
Rated secondary voltage 110 V, 220 V
Rated voltage factor 1.2 Vn cont.
Insulation class (IEC 60085) E
Standard IEC / IEEE / KS, etc.
W36V2G Variant: Standard | Highest voltage: 36 kV | Rated primary voltage: 33000 V | Weight: 55 kg
Voltage TransformersWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung W36V2G High-Voltage Unearthed (2-Pole) Voltage Transformer, 36 kV Outdoor Cast Resin

Brand Woonyoung·Voltage Transformers

Available part numbers (1)

W36V2G

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W36V2GVariant: Standard | Highest voltage: 36 kV | Rated primary voltage: 33000 V | Weight: 55 kg
