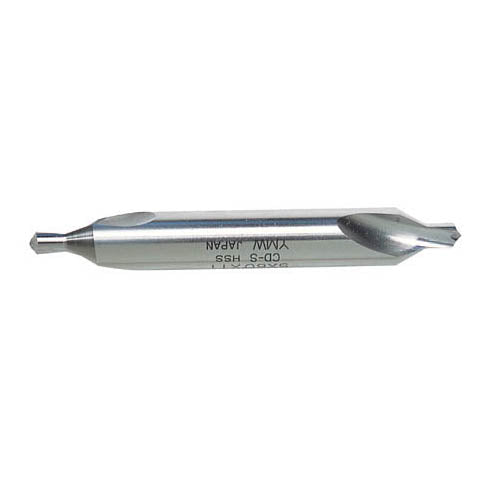

Yamawa CD-S 0.5*3.5 Center Drill

Yamawa CD-S 0.5*3.5 Center Drill

Yamawa CD-S 0.5*3.5 Center Drill is a precision center drilling tool designed to create accurate starting points for subsequent drilling or turning operations, sourced direct from Korea.

Key features

  • Center drills like this are widely used by machinists and CNC operators to produce conical seat holes that locate and support workpieces between lathe centers or guide twist drills without wandering
328-1235 CD-S 0.5*3.5 | 0.5MM*3.5 (60°) Type A | Spec: 0.5 | Overall Length: 35 | Shank Diameter: 3.5
328-1244 CD-S 0.8*3.5 | 0.8MM*3.5 (60°) Type A | Spec: 0.8 | Overall Length: 35 | Shank Diameter: 3.5
328-1253 CD-S 1.0*4 | 1.0MM*4 (60°) Type A | Spec: 1.0 | Overall Length: 35 | Shank Diameter: 4.0
328-1262 CD-S 1.5*5 | 1.5MM*5 (60°) Type A | Spec: 1.5 | Overall Length: 40 | Shank Diameter: 5.0
328-1280 CD-S 2.0*6 | 2.0MM*6 (60°) Type A | Spec: 2.0 | Overall Length: 45 | Shank Diameter: 6.0
328-1305 CD-S 2.5*7.7 | 2.5MM*7.7 (60°) Type A | Spec: 2.5 | Overall Length: 50 | Shank Diameter: 7.7
328-1314 CD-S 3.0*7.7 | 3.0MM*7.7 (60°) Type A | Spec: 3.0 | Overall Length: 55 | Shank Diameter: 7.7
328-1323 CD-S 3.0*8 | 3.0MM*8 (60°) Type A | Spec: 3.0 | Overall Length: 55 | Shank Diameter: 8.0
328-1341 CD-S 4.0*10 | 4.0MM*10 (60°) Type A | Spec: 4.0 | Overall Length: 65 | Shank Diameter: 10.0
328-1350 CD-S 5.0*11 | 5.0MM*11 (60°) Type A | Spec: 5.0 | Overall Length: 78 | Shank Diameter: 11.0
328-1369 CD-S 6.0*18 | 6.0MM*18 (60°) Type A | Spec: 6.0 | Overall Length: 90 | Shank Diameter: 18.0
Center DrillsYamawa
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yamawa CD-S 0.5*3.5 Center Drill

Brand Yamawa·Center Drills

Available part numbers (11)

328-1235, 328-1244, 328-1253, 328-1262, 328-1280, 328-1305, 328-1314, 328-1323, 328-1341, 328-1350 + 1 more — see full table ↓

How to order

Send the Yamawa part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
328-1235CD-S 0.5*3.5 | 0.5MM*3.5 (60°) Type A | Spec: 0.5 | Overall Length: 35 | Shank Diameter: 3.5
328-1244CD-S 0.8*3.5 | 0.8MM*3.5 (60°) Type A | Spec: 0.8 | Overall Length: 35 | Shank Diameter: 3.5
328-1253CD-S 1.0*4 | 1.0MM*4 (60°) Type A | Spec: 1.0 | Overall Length: 35 | Shank Diameter: 4.0
328-1262CD-S 1.5*5 | 1.5MM*5 (60°) Type A | Spec: 1.5 | Overall Length: 40 | Shank Diameter: 5.0
328-1280CD-S 2.0*6 | 2.0MM*6 (60°) Type A | Spec: 2.0 | Overall Length: 45 | Shank Diameter: 6.0
328-1305CD-S 2.5*7.7 | 2.5MM*7.7 (60°) Type A | Spec: 2.5 | Overall Length: 50 | Shank Diameter: 7.7
328-1314CD-S 3.0*7.7 | 3.0MM*7.7 (60°) Type A | Spec: 3.0 | Overall Length: 55 | Shank Diameter: 7.7
328-1323CD-S 3.0*8 | 3.0MM*8 (60°) Type A | Spec: 3.0 | Overall Length: 55 | Shank Diameter: 8.0
328-1341CD-S 4.0*10 | 4.0MM*10 (60°) Type A | Spec: 4.0 | Overall Length: 65 | Shank Diameter: 10.0
328-1350CD-S 5.0*11 | 5.0MM*11 (60°) Type A | Spec: 5.0 | Overall Length: 78 | Shank Diameter: 11.0
328-1369CD-S 6.0*18 | 6.0MM*18 (60°) Type A | Spec: 6.0 | Overall Length: 90 | Shank Diameter: 18.0
