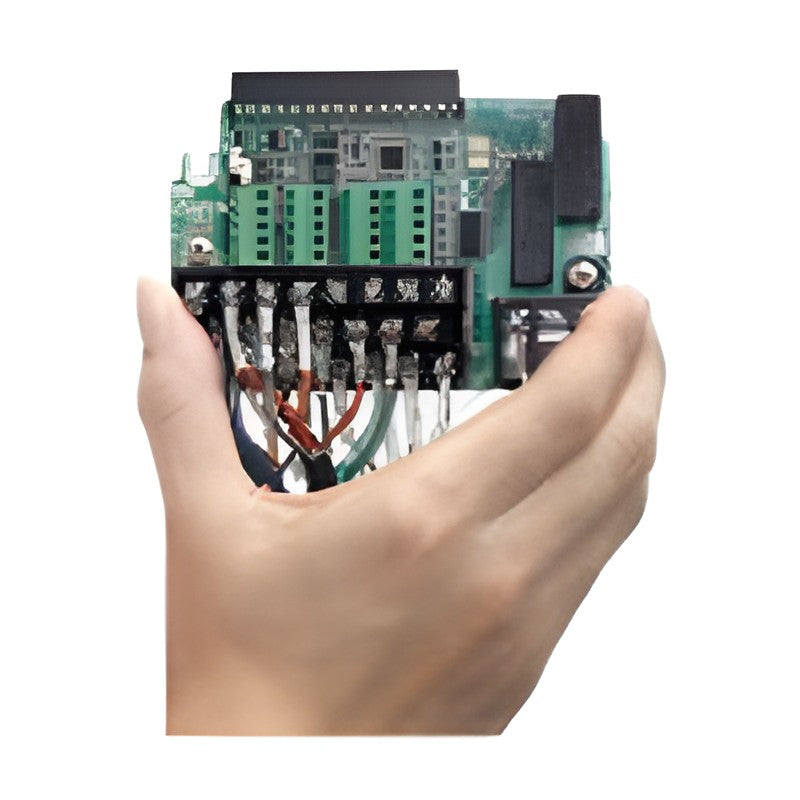

• YASKAWA AI-A3/DI-A3 Speed Reference Option Cards for 1000-Series Drives
1 1

YASKAWA 1000-Series AI-A3/DI-A3 Speed Reference Option Cards (2 cards)

YASKAWA 1000-Series AI-A3/DI-A3 Speed Reference Option Cards (2 cards)

Built-in speed reference option cards that add high-resolution analog or 16-bit digital frequency reference inputs to 1000-series drives.

Key features

  • AI-A3: 3 analog input channels, -10 to +10 Vdc (20 kΩ) or 4 to 20 mA (250 Ω)
  • AI-A3 resolution: 13-bit signed for voltage input, 1/4096 for current input
  • DI-A3: 16-bit binary or 2-digit BCD + sign + set signal digital reference
  • DI-A3 inputs isolated 24 V, 8 mA; user-set 8, 12 or 16 bit
  • Built-in type, plugs into the drive option connector; RoHS compliant

Specifications

Brand YASKAWA
Category Speed reference card
Mounting Built-in (connector)
Compatible drives A1000, U1000
Compliance RoHS Directive
Source YASKAWA A1000 catalogue, p. 35; U1000 catalogue, p. 37
AI-A3 Type: Analog input | Signal: -10 to +10 Vdc / 4 to 20 mA | Channels: 3 | Manual No.: TOBPC73060078
DI-A3 Type: Digital input | Signal: 16-bit binary / 2-digit BCD | Channels: 16 bit + sign + set | Manual No.: TOBPC73060080
Drive Option CardsYASKAWA
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA 1000-Series AI-A3/DI-A3 Speed Reference Option Cards (2 cards)

Brand YASKAWA·Drive Option Cards

Available part numbers (2)

AI-A3, DI-A3

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AI-A3Type: Analog input | Signal: -10 to +10 Vdc / 4 to 20 mA | Channels: 3 | Manual No.: TOBPC73060078
DI-A3Type: Digital input | Signal: 16-bit binary / 2-digit BCD | Channels: 16 bit + sign + set | Manual No.: TOBPC73060080
