YASKAWA D1000 Power Regenerative Converter (200 V class, 5-130 kW)

YASKAWA D1000 Power Regenerative Converter (200 V class, 5-130 kW)

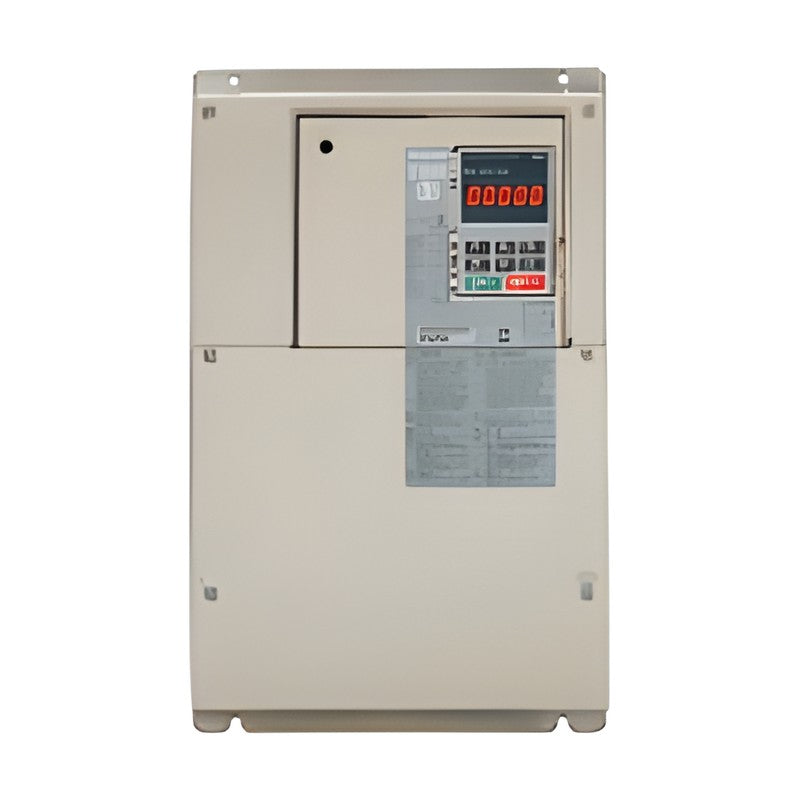

YASKAWA D1000 200 V class power regenerative converter (energy-saving unit) returning drive regenerative energy to the mains with near-unity power factor and low harmonics.

Key features

  • Returns regenerative energy from drives and servo systems to the power supply instead of dissipating it
  • Sine-wave PWM control with input power factor of 0.99 min. at rated operation and very low harmonics
  • Supplies a stable DC bus to one or more drives regardless of AC input voltage fluctuation
  • Removable terminal block with parameter backup; MEMOBUS/Modbus RS-422/485 standard, option card slots
  • MTO = made to order. Full model = CIMR-DA + voltage + A + capacity + enclosure (A IP00 / B IP20) + environment + revision; environmental versions K (gas), M (humidity/dust), N (oil), S (vibration) on request; region A (Japan) and T (Asia) codes listed
  • Requires the standard configuration devices (harmonic filter module and input AC reactor 1; 270-630 kW: reactors 1/2, harmonic filter reactor and capacitor)

Specifications

Series D1000 Energy-Saving Unit
Voltage class 200 V (3-phase 200-240 Vac, 50/60 Hz)
Capacity range 5 to 130 kW
Rated output voltage 330 Vdc
Control method Sine-wave PWM control
Input power factor 0.99 min. (rated operation)
Overload 150% 60 s / 200% 3 s of rated input current
Safety standards UL508C, IEC61800-5-1, IEC61800-3
Enclosure IP00 / IP20 open-chassis
Source YASKAWA D1000 catalogue, p. 8-23
CIMR-DA2A0005 Base model (specify enclosure) | Region: A (Japan) | Enclosure: B (IP20) | Capacity: 5 kW | Motor: 3.7 kW | Current: 15 A DC / 15 A AC
CIMR-DA2A0005BAA Region: A (Japan) | Enclosure: IP20 open-chassis | Capacity: 5 kW | Motor: 3.7 kW | Current: 15 A DC / 15 A AC
