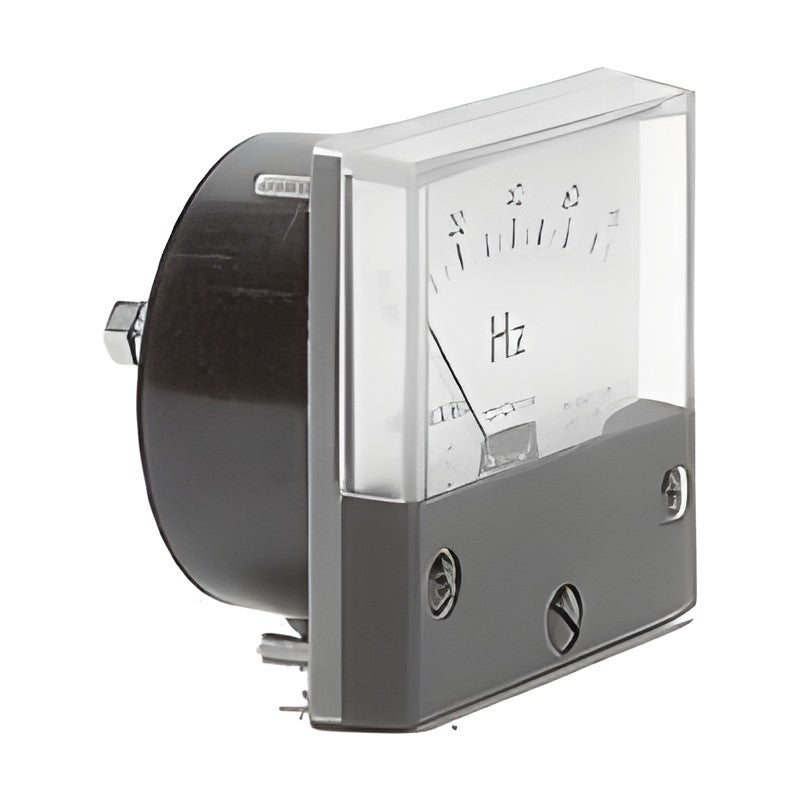

YASKAWA 1000-Series DCF-6A/SCF-12NH Analog Panel Meters (9 scales)

DCF-6A frequency/current meters and SCF-12NH output voltage meters for external monitoring of 1000-series drives.

Key features

DCF-6A: 3 V, 1 mA, 3 kΩ movement for the drive analog monitor output
Adjust with a 20 kΩ potentiometer or parameter H4-02 to the 0-3 V range
DCF-6A frequency scales 75 Hz and 65/130 Hz; current scales 5 to 50 A
SCF-12NH rectification type class 2.5 voltmeters, 300 V or 600 V scale
600 V meter is used with the UPN-B voltage transformer

Specifications

Brand	YASKAWA
Category	Analog panel meter
Compatible drives	A1000, U1000
DCF-6A size	65 x 60 mm, 0.3 kg
SCF-12NH size	120 x 100 mm, 0.3 kg
Source	YASKAWA A1000 catalogue, p. 56-57; U1000 catalogue, p. 46-47

100-250-730		Model: DCF-6A \| Type: Frequency meter \| Scale: 75 Hz full-scale
100-250-728		Model: DCF-6A \| Type: Frequency meter \| Scale: 65/130 Hz full-scale
100-252-699		Model: DCF-6A \| Type: Current meter \| Scale: 5 A full-scale
100-252-695		Model: DCF-6A \| Type: Current meter \| Scale: 10 A full-scale
100-252-696		Model: DCF-6A \| Type: Current meter \| Scale: 20 A full-scale
100-252-697		Model: DCF-6A \| Type: Current meter \| Scale: 30 A full-scale
100-252-698		Model: DCF-6A \| Type: Current meter \| Scale: 50 A full-scale
100-250-739		Model: SCF-12NH \| Type: Output voltage meter \| Scale: 300 V full-scale
100-250-740		Model: SCF-12NH \| Type: Output voltage meter \| Scale: 600 V full-scale
FM000065		Model: DCF-6A \| Type: Frequency meter \| Scale: 75 Hz full-scale
FM000085		Model: DCF-6A \| Type: Frequency meter \| Scale: 60/120 Hz full-scale
DCF-6A-5A		Model: DCF-6A \| Type: Current meter \| Scale: 5 A full-scale
DCF-6A-10A		Model: DCF-6A \| Type: Current meter \| Scale: 10 A full-scale
DCF-6A-20A		Model: DCF-6A \| Type: Current meter \| Scale: 20 A full-scale
DCF-6A-30A		Model: DCF-6A \| Type: Current meter \| Scale: 30 A full-scale
DCF-6A-50A		Model: DCF-6A \| Type: Current meter \| Scale: 50 A full-scale
VM000481		Model: SCF-12NH \| Type: Output voltage meter \| Scale: 300 V full-scale
VM000502		Model: SCF-12NH \| Type: Output voltage meter \| Scale: 600 V full-scale

Panel MetersYASKAWA

18 product codes available in this family
