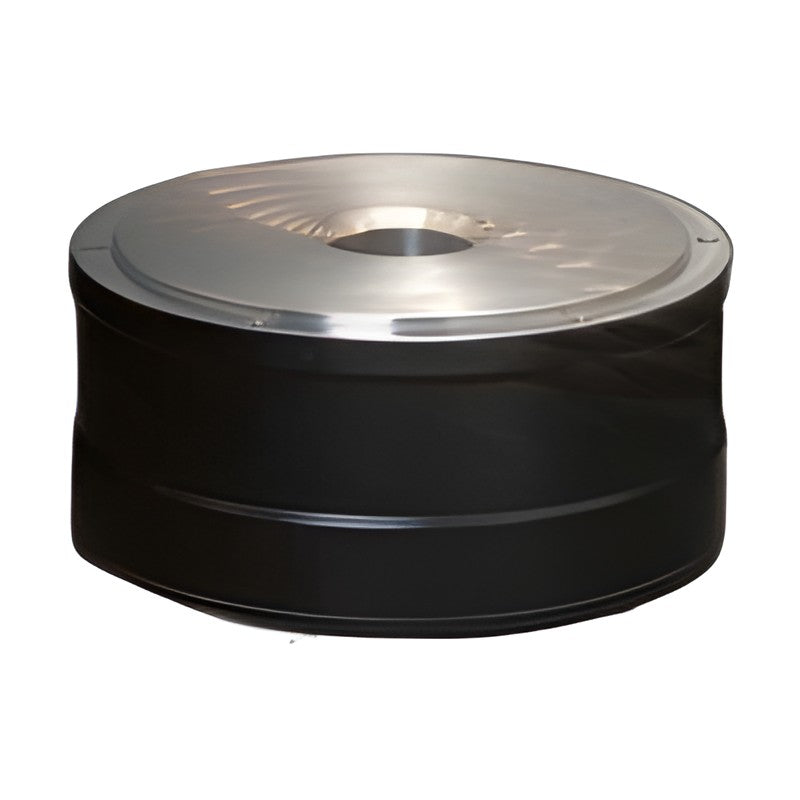

YASKAWA DYNASERV DB5C Absolute Encoder Direct Drive Motors

YASKAWA DYNASERV DB5C Absolute Encoder Direct Drive Motors

DYNASERV DB5C direct drive motors with a built-in absolute encoder, derived from the DR5C, operating without a homing run when used with DrvPIII.

Key features

  • Maximum torque 5, 10 or 15 N·m; maximum speed 6.0 rps, rated 4.0 rps
  • Absolute encoder, 425,984 pulse/rev, ±5 arc sec repeatability, ±150 arc sec absolute accuracy
  • Run-out accuracy 10 μm (A2) or standard 100 μm (A4)
  • Compatible with UB5CP3 DrvPIII drive only; cables C1M-NA1-20A5 / C1E-BA1-79C6
  • Optional /CE suffix for CE mark support

Specifications

Motor type Outer-rotor direct drive motor
Encoder Absolute, 425,984 pulse/rev
Construction G (standard profile)
Cable Fixed, 0.5 m, bottom exit
Connectors Motor -A4, encoder B5 (J.S.T.)
Power supply 200-230 VAC
Source YASKAWA DYNASERV Catalog, p. 18-19, 45
DB5C-005G-1B9A2G2-005-A4B5 Max. torque: 5 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-005G-1B9A4G2-005-A4B5 Max. torque: 5 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-010G-1B9A2G2-005-A4B5 Max. torque: 10 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-010G-1B9A4G2-005-A4B5 Max. torque: 10 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-015G-1B9A2G2-005-A4B5 Max. torque: 15 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-015G-1B9A4G2-005-A4B5 Max. torque: 15 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
Direct Drive Servo MotorsYASKAWA
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA DYNASERV DB5C Absolute Encoder Direct Drive Motors

Brand YASKAWA·Direct Drive Servo Motors

Available part numbers (6)

DB5C-005G-1B9A2G2-005-A4B5, DB5C-005G-1B9A4G2-005-A4B5, DB5C-010G-1B9A2G2-005-A4B5, DB5C-010G-1B9A4G2-005-A4B5, DB5C-015G-1B9A2G2-005-A4B5, DB5C-015G-1B9A4G2-005-A4B5

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DB5C-005G-1B9A2G2-005-A4B5Max. torque: 5 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-005G-1B9A4G2-005-A4B5Max. torque: 5 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-010G-1B9A2G2-005-A4B5Max. torque: 10 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-010G-1B9A4G2-005-A4B5Max. torque: 10 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-015G-1B9A2G2-005-A4B5Max. torque: 15 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DB5C-015G-1B9A4G2-005-A4B5Max. torque: 15 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
