YASKAWA DYNASERV DR5 High-Speed DD Motors (DR5A, DR5E, DR5B, DR5C)

YASKAWA DYNASERV DR5 High-Speed DD Motors (DR5A, DR5E, DR5B, DR5C)

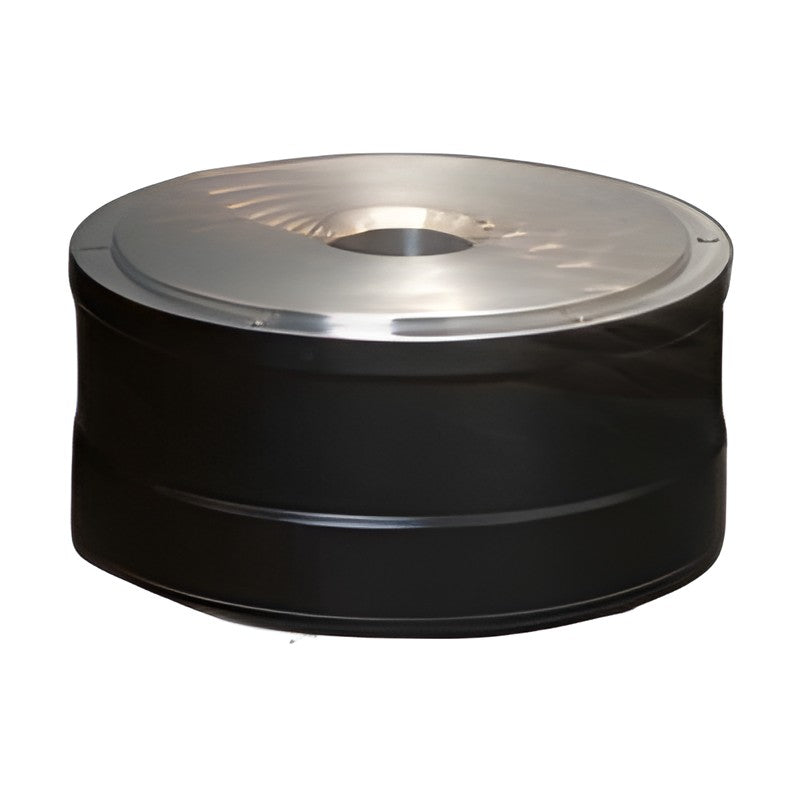

DYNASERV DR5-series high-speed direct drive motors with a magnetic encoder and large center aperture, from 5 to 500 N·m.

Key features

  • DR5A: 300 to 500 N·m, 2.0 rps, 851,968 pulse/rev, 4 kW class drive, 1 m cable with MS relay connectors
  • DR5E: 100 N·m, 4.0 rps; DR5B: 30 to 70 N·m, 5.0 rps
  • DR5C: compact 5 to 15 N·m, 6.0 rps, 425,984 pulse/rev
  • Run-out accuracy options per size (A1/A2/A3) or standard 100 μm (A4)
  • Driven by UR5xG3 (DrvGIII) or UR5xP3 (DrvPIII) drives; optional /CE suffix

Specifications

Motor type Outer-rotor direct drive motor
Encoder Magnetic incremental encoder
Construction G (standard profile)
Cable exit / type Bottom surface (G), fixed cable (2)
Power supply 200-230 VAC
Insulation Class F, 1500 VAC 1 min
Source YASKAWA DYNASERV Catalog, p. 14-17, 44-45
DR5A-300G-1E5A4G2-010-0808 Max. torque: 300 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±45 arc sec | Current: 50 A | Encoder connector: MS relay N/MS3101B18-1P (08)
DR5A-300G-1E5A4G2-010-08B3 Max. torque: 300 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±45 arc sec | Current: 50 A | Encoder connector: Standard J.S.T. (B3)
DR5A-400G-1E5A4G2-010-0808 Max. torque: 400 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±45 arc sec | Current: 50 A | Encoder connector: MS relay N/MS3101B18-1P (08)
DR5A-400G-1E5A4G2-010-08B3 Max. torque: 400 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±45 arc sec | Current: 50 A | Encoder connector: Standard J.S.T. (B3)
DR5A-500G-1E5A4G2-010-0808 Max. torque: 500 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±45 arc sec | Current: 50 A | Encoder connector: MS relay N/MS3101B18-1P (08)
DR5A-500G-1E5A4G2-010-08B3 Max. torque: 500 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±45 arc sec | Current: 50 A | Encoder connector: Standard J.S.T. (B3)
DR5E-100G-1D7A4G2-005-A1B3 Max. torque: 100 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±90 arc sec | Current: 20 A
DR5B-030G-1C7A1G2-005-A1B3 Max. torque: 30 N·m | Run-out (A1): 5 μm or less | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5B-030G-1C7A2G2-005-A1B3 Max. torque: 30 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5B-030G-1C7A4G2-005-A1B3 Max. torque: 30 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5B-050G-1C7A3G2-005-A1B3 Max. torque: 50 N·m | Run-out (A3): 20 μm or less | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5B-050G-1C7A4G2-005-A1B3 Max. torque: 50 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5B-070G-1C7A3G2-005-A1B3 Max. torque: 70 N·m | Run-out (A3): 20 μm or less | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5B-070G-1C7A4G2-005-A1B3 Max. torque: 70 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±90 arc sec | Current: 15 A
DR5C-005G-1B9A2G2-005-A4B3 Max. torque: 5 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DR5C-005G-1B9A4G2-005-A4B3 Max. torque: 5 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
DR5C-010G-1B9A2G2-005-A4B3 Max. torque: 10 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DR5C-010G-1B9A4G2-005-A4B3 Max. torque: 10 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
DR5C-015G-1B9A2G2-005-A4B3 Max. torque: 15 N·m | Run-out (A2): 10 μm or less | Abs. accuracy: ±150 arc sec | Current: 6 A
DR5C-015G-1B9A4G2-005-A4B3 Max. torque: 15 N·m | Run-out (A4): 100 μm or less (standard) | Abs. accuracy: ±150 arc sec | Current: 6 A
