YASKAWA DYNASERV DR5H00 Flat Direct Drive Motors (10-40 N·m)

YASKAWA DYNASERV DR5H00 Flat Direct Drive Motors (10-40 N·m)

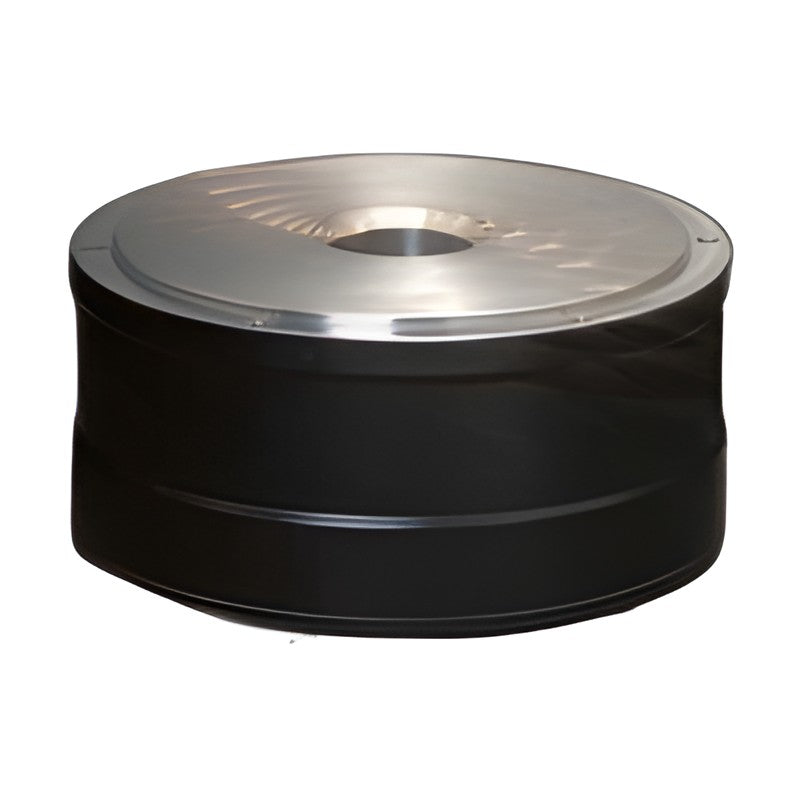

DYNASERV DR5H00 low-height iron-body direct drive motors with a magnetic encoder, 42 mm high (10/20 N·m) or 62 mm high (40 N·m).

Key features

  • Peak torque 10, 20 or 40 N·m; constant torque 6, 12 or 30 N·m
  • Magnetic encoder, 3,407,872 pulse/rev, ±0.4 arc sec repeatability, ±80 arc sec absolute accuracy
  • Mounting base and connector box (F construction), built-in origin sensor on 40 N·m size
  • Run-out accuracy suffix -A1 (5 μm), -A7 (20 μm) or -A6 (50 μm, nickel-plated rotor)
  • Supports CE marking as standard; optional /CN connector set available
  • Driven by UR5HG3 (DrvGIII) or UR5HP3 (DrvPIII) drives; cables C3M / C3E

Specifications

Motor type Outer-rotor direct drive motor
Construction F (mounting base & connector box)
Encoder Magnetic, 3,407,872 pulse/rev
Max. speed 3.6 rps (200-230 VAC)
Power supply 200-230 VAC / 100-115 VAC
Insulation Class F, 1500 VAC 1 min
Source YASKAWA DYNASERV Catalog, p. 8-9, 43
DR5H00-010F-A1 Max. torque: 10 N·m | Run-out (-A1): 5 μm or less, no plating, øD 111.9 | Drive current: 6 A | Height: 42 mm
DR5H00-010F-A7 Max. torque: 10 N·m | Run-out (-A7): 20 μm or less, no plating, øD 111.9 | Drive current: 6 A | Height: 42 mm
DR5H00-010F-A6 Max. torque: 10 N·m | Run-out (-A6): 50 μm or less, Ni plated, øD 112 | Drive current: 6 A | Height: 42 mm
DR5H00-020F-A1 Max. torque: 20 N·m | Run-out (-A1): 5 μm or less, no plating, øD 111.9 | Drive current: 6 A | Height: 42 mm
DR5H00-020F-A7 Max. torque: 20 N·m | Run-out (-A7): 20 μm or less, no plating, øD 111.9 | Drive current: 6 A | Height: 42 mm
DR5H00-020F-A6 Max. torque: 20 N·m | Run-out (-A6): 50 μm or less, Ni plated, øD 112 | Drive current: 6 A | Height: 42 mm
DR5H00-040F-A1 Max. torque: 40 N·m | Run-out (-A1): 5 μm or less, no plating, øD 111.9 | Drive current: 20 A | Height: 62 mm
DR5H00-040F-A7 Max. torque: 40 N·m | Run-out (-A7): 20 μm or less, no plating, øD 111.9 | Drive current: 20 A | Height: 62 mm
DR5H00-040F-A6 Max. torque: 40 N·m | Run-out (-A6): 50 μm or less, Ni plated, øD 112 | Drive current: 20 A | Height: 62 mm
Direct Drive Servo MotorsYASKAWA
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
