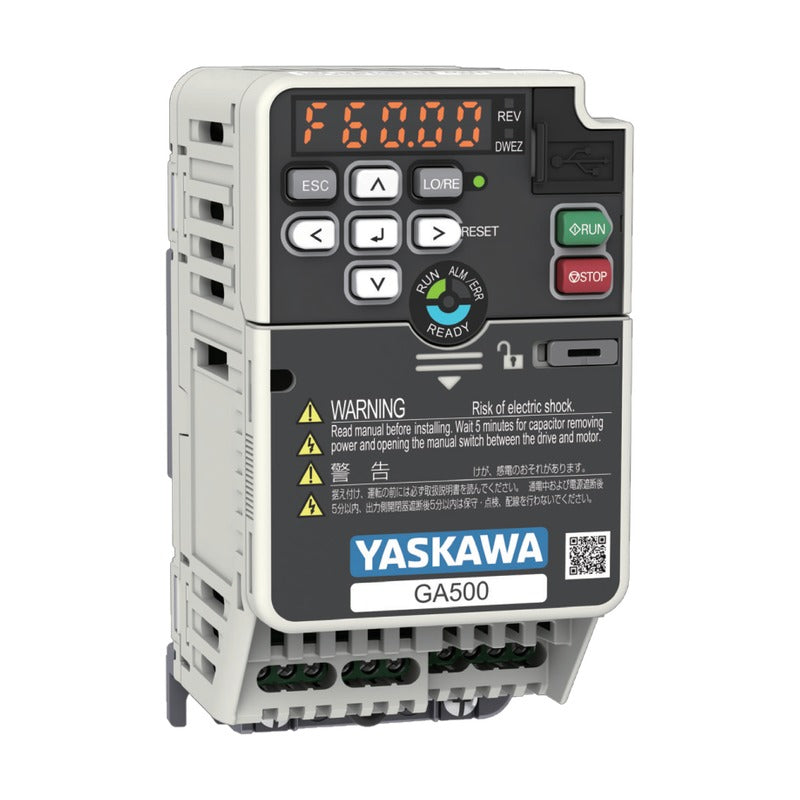

YASKAWA GA500 AC Drives 200 V Class 3-Phase (0.1-22 kW)

YASKAWA GA500 AC Drives 200 V Class 3-Phase (0.1-22 kW)

GA500 compact high-performance AC drives for three-phase 200 V supplies, driving induction, IPM/SPM and synchronous reluctance motors from 0.1 to 22 kW.

Key features

  • Model key CIPR-GA50T + voltage + current + EMC filter (A/E) + enclosure (B/F) + A (standard) + A - CAAASA
  • Environmental versions K/M/N/P/R/S/T (gas, humidity/dust, oil, vibration) available on request
  • Factory-fitted keypad options: LCD, Bluetooth LCD, LED (also humidity/dust-resistant) or blank cover; standard = half-size LED keypad
  • Heavy Duty 150% / 60 s and Normal Duty 110% / 60 s ratings selected by parameter C6-01
  • V/f, open-loop vector, PM open-loop vector, PM advanced open-loop vector and EZ vector control; up to 590 Hz
  • Built-in braking transistor; Safe Torque Off (SIL3, PLe); size-compatible with V1000

Specifications

Brand YASKAWA
Series GA500
Region code T (Asia)
Power supply 3-phase 200-240 V 50/60 Hz; DC 270-340 V
Capacity range HD 0.1-18.5 kW / ND 0.2-22 kW
Max. output frequency 590 Hz
Braking transistor Built-in
Overload HD 150% 60 s / ND 110% 60 s
Ambient temperature -10 to +50 C (IP20/UL Open)
Standards UL61800-5-1, EN61800-3, IEC/EN61800-5-1
Source YASKAWA GA500 Catalog (Korean ed.), p. 22-23, 28-31, 38-43
GA50T2001 Base model (specify enclosure) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50T2001ABAA-CAAASA Catalog code: GA50T2001ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50T2001AFAA-CAAASA Catalog code: GA50T2001AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50T2001EBAA-CAAASA Catalog code: GA50T2001EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50T2001EFAA-CAAASA Catalog code: GA50T2001EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
GA50T2002 Base model (specify enclosure) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50T2002ABAA-CAAASA Catalog code: GA50T2002ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50T2002AFAA-CAAASA Catalog code: GA50T2002AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50T2002EBAA-CAAASA Catalog code: GA50T2002EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50T2002EFAA-CAAASA Catalog code: GA50T2002EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
GA50T2004 Base model (specify enclosure) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50T2004ABAA-CAAASA Catalog code: GA50T2004ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50T2004AFAA-CAAASA Catalog code: GA50T2004AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50T2004EBAA-CAAASA Catalog code: GA50T2004EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50T2004EFAA-CAAASA Catalog code: GA50T2004EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
GA50T2006 Base model (specify enclosure) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50T2006ABAA-CAAASA Catalog code: GA50T2006ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50T2006AFAA-CAAASA Catalog code: GA50T2006AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50T2006EBAA-CAAASA Catalog code: GA50T2006EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50T2006EFAA-CAAASA Catalog code: GA50T2006EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
GA50T2008 Base model (specify enclosure) | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIPR-GA50T2008ABAA-CAAASA Catalog code: GA50T2008ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIPR-GA50T2008AFAA-CAAASA Catalog code: GA50T2008AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIPR-GA50T2008EBAA-CAAASA Catalog code: GA50T2008EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIPR-GA50T2008EFAA-CAAASA Catalog code: GA50T2008EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
GA50T2010 Base model (specify enclosure) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50T2010ABAA-CAAASA Catalog code: GA50T2010ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50T2010AFAA-CAAASA Catalog code: GA50T2010AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50T2010EBAA-CAAASA Catalog code: GA50T2010EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50T2010EFAA-CAAASA Catalog code: GA50T2010EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
GA50T2012 Base model (specify enclosure) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50T2012ABAA-CAAASA Catalog code: GA50T2012ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50T2012AFAA-CAAASA Catalog code: GA50T2012AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50T2012EBAA-CAAASA Catalog code: GA50T2012EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50T2012EFAA-CAAASA Catalog code: GA50T2012EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
GA50T2018 Base model (specify enclosure) | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIPR-GA50T2018ABAA-CAAASA Catalog code: GA50T2018ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIPR-GA50T2018AFAA-CAAASA Catalog code: GA50T2018AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIPR-GA50T2018EBAA-CAAASA Catalog code: GA50T2018EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIPR-GA50T2018EFAA-CAAASA Catalog code: GA50T2018EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
GA50T2021 Base model (specify enclosure) | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.6 A
CIPR-GA50T2021ABAA-CAAASA Catalog code: GA50T2021ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.6 A
CIPR-GA50T2021AFAA-CAAASA Catalog code: GA50T2021AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.6 A
CIPR-GA50T2021EBAA-CAAASA Catalog code: GA50T2021EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.6 A
CIPR-GA50T2021EFAA-CAAASA Catalog code: GA50T2021EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.6 A
GA50T2030 Base model (specify enclosure) | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIPR-GA50T2030ABAA-CAAASA Catalog code: GA50T2030ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIPR-GA50T2030AFAA-CAAASA Catalog code: GA50T2030AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIPR-GA50T2030EBAA-CAAASA Catalog code: GA50T2030EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIPR-GA50T2030EFAA-CAAASA Catalog code: GA50T2030EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
GA50T2042 Base model (specify enclosure) | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A
CIPR-GA50T2042ABAA-CAAASA Catalog code: GA50T2042ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A
CIPR-GA50T2042AFAA-CAAASA Catalog code: GA50T2042AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A
CIPR-GA50T2042EBAA-CAAASA Catalog code: GA50T2042EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A
CIPR-GA50T2042EFAA-CAAASA Catalog code: GA50T2042EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A
GA50T2056 Base model (specify enclosure) | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIPR-GA50T2056ABAA-CAAASA Catalog code: GA50T2056ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIPR-GA50T2056AFAA-CAAASA Catalog code: GA50T2056AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIPR-GA50T2056EBAA-CAAASA Catalog code: GA50T2056EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIPR-GA50T2056EFAA-CAAASA Catalog code: GA50T2056EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 15 kW / 56 A | HD: 11 kW / 47 A
GA50T2070 Base model (specify enclosure) | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A
CIPR-GA50T2070ABAA-CAAASA Catalog code: GA50T2070ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A
CIPR-GA50T2070AFAA-CAAASA Catalog code: GA50T2070AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A
CIPR-GA50T2070EBAA-CAAASA Catalog code: GA50T2070EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A
CIPR-GA50T2070EFAA-CAAASA Catalog code: GA50T2070EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A
GA50T2082 Base model (specify enclosure) | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A
CIPR-GA50T2082ABAA-CAAASA Catalog code: GA50T2082ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A
CIPR-GA50T2082AFAA-CAAASA Catalog code: GA50T2082AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A
CIPR-GA50T2082EBAA-CAAASA Catalog code: GA50T2082EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A
CIPR-GA50T2082EFAA-CAAASA Catalog code: GA50T2082EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A
AC DrivesYASKAWA
70 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA500 AC Drives 200 V Class 3-Phase (0.1-22 kW)

Brand YASKAWA·AC Drives

Available part numbers (70)

GA50T2001, CIPR-GA50T2001ABAA-CAAASA, CIPR-GA50T2001AFAA-CAAASA, CIPR-GA50T2001EBAA-CAAASA, CIPR-GA50T2001EFAA-CAAASA, GA50T2002, CIPR-GA50T2002ABAA-CAAASA, CIPR-GA50T2002AFAA-CAAASA, CIPR-GA50T2002EBAA-CAAASA, CIPR-GA50T2002EFAA-CAAASA + 60 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
